Evaluation Kit - 33813, One Cylinder Engine Control

KIT33813AEEVBE Active

Roll over image to zoom in

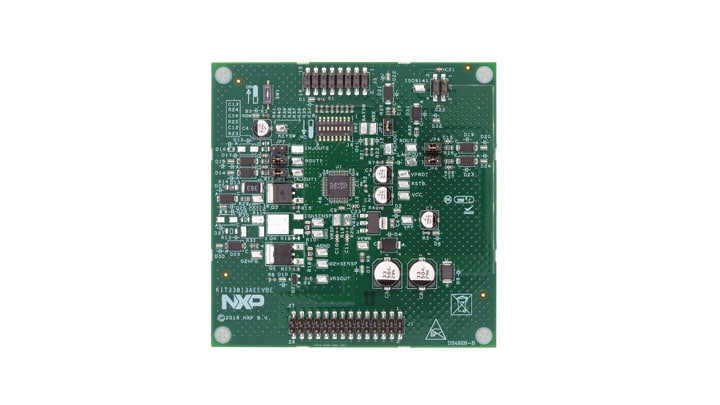

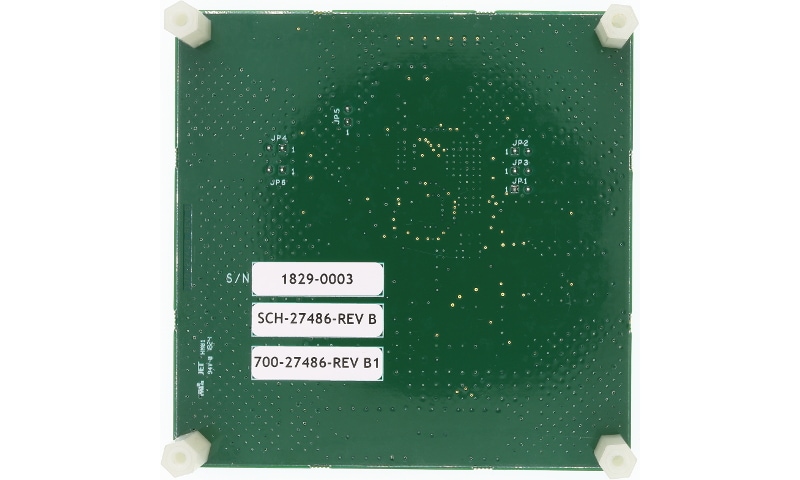

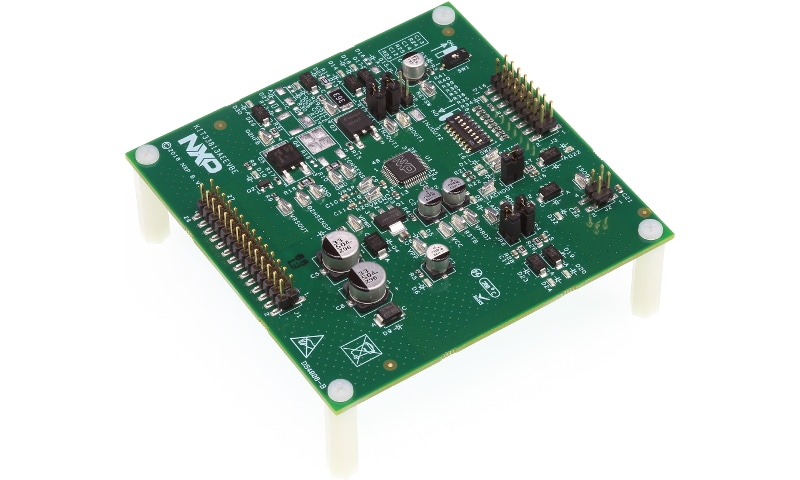

The KIT33813AEEVBE evaluation board (EVB) is an easy-to-use circuit board that allows you to exercise the functions of the NXP® MC33813 one cylinder small engine control IC.

A PC communicates to the EVB through a USB/SPI Dongle (KITUSBSPIDGLEVME) connected to the PC’s USB port. The NXP SPIGen (version 6.0) program provides a user interface to the MC33813 SPI (serial peripheral interface) port and allows you to send commands to the IC and receive status from the IC.

Product Details

Supported Devices

Power Management

Powertrain and Engine Control

  • MC33813: One Cylinder Small Engine Control IC

Features

Key Features

  • MCU reset generator - system integrity monitor (watchdog)

Microcontroller

  • MC33813

Connectivity

  • Interfaces directly to MCU using a 5.0 V SPI and logic I/O

Power Management

  • Operates over a supply voltage range of 4.5 V ≤ VPWR ≤ 36 V
  • Designed to operate over supply voltage range of 4.5 V ≤ VPWR ≤ 36 V
  • Logic stability guaranteed down to 2.5 V
  • VPROT protected sensor supply tracks VCC +5.0 V regulator
  • VPP preregulator provides power for VCC and VPROT regulators
  • Keyswitch logic with provision for power relay and MCU controlled shutdown

Drivers

  • One ignition IGBT or general-purpose gate pre-driver
  • One O2 sensor (HEGO) heater general-purpose gate pre-driver
  • Two fuel injector drivers - typically 1.3 A
  • Two ignition IGBT or general-purpose gate predrivers
  • Relay 1 driver, typically 2.0 A, can be used for fuel pump control
  • Relay 2 driver, typically 1.0 A, can be used as power relay control
  • Lamp driver, typically 1.0 A can also be used to drive an LED

Components

  • Independent fault protection with all faults reported via the SPI
  • ISO 9141 K-Line interface for communicating diagnostic messages

Buy Options

KIT33813AEEVBE-Image

Click to expand

  • KIT33813AEEVBE
    Active

  • Evaluation Kit - MC33813, One Cylinder Small Engine Control IC.

    • KIT33813AEEVBE Hardware
    • Quick Reference Guide
  • $228.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
