RS08LA Tool Summary Page

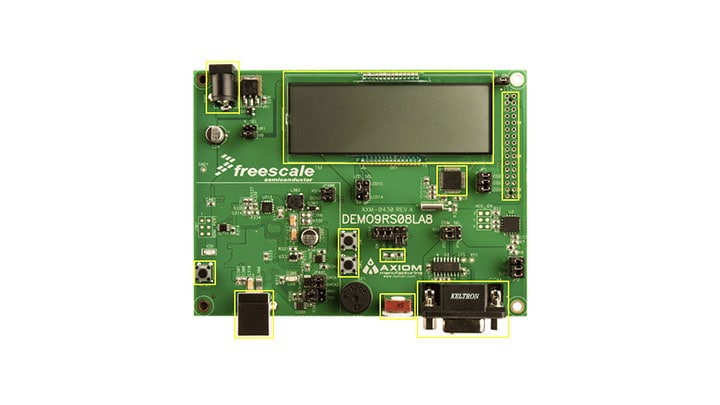

DEMO9RS08LA8

Roll over image to zoom in

The cost effective DEMO9RS08LA8 demonstration kit contains everything a designer needs to develop and evaluate application code. The integrated USB multilink allows a designer to communicate with the board and target device with only a USB cable.

Product Details

Supported Devices

Processors and Microcontrollers

8-bit Legacy MCUs

  • RS08LA: 8-bit with LCD Driver LA MCUs
  • RS08LE: 8-bit with LCD Driver LE MCUs

Features

Microcontroller

  • MC9RS08LA8, 48 LQFP

Connectivity

  • Integrated P&E USB-BDM
  • 40-pin MCU I/O Connector
  • 2.0 mm Barrel Connector
  • BDM_PORT (not installed)
  • USB Connector
  • DB9 Connector

Power Management

  • On-board +5 V regulator
  • Power Input Selection Jumpers

Sensors

  • Temperature Sensor

User Components

  • 3 Push Switches; 4 User, 1 Reset
  • User Option Jumpers to disconnect Peripherals
  • 5 K ohm POT w /LP Filter
N true 0 TSPDEMO9RS08LA8en 3 Quick Reference Guide Quick Reference Guide t525 1 Supporting Information Supporting Information t531 1 User Guide User Guide t792 1 en_US en_US 1 1 A English User guide for Demonstration Board for the MC9RSO8LA8 1222703499599723465332 TSP 186.1 KB None None documents Y None 1222703499599723465332 /docs/en/user-guide/DEMO9RS08LA8_UG.pdf 186103 /docs/en/user-guide/DEMO9RS08LA8_UG.pdf DEMO9RS08LA8_UG N N 2016-10-31 User Guide for the DEMO9RS08LA8 /docs/en/user-guide/DEMO9RS08LA8_UG.pdf /docs/en/user-guide/DEMO9RS08LA8_UG.pdf User Guide N 132339537837198660 2023-06-19 pdf N en Sep 29, 2008 User Guide t792 User Guide User Guide Y N User Guide for the DEMO9RS08LA8 false en Quick Reference Guide Quick Reference Guide 1 2 0 English DEMO9RS08LA8 is a cost-effective board targeting quick microcontroller evaluation. The MC9RS08LA8 device is NXP’s cost-effective microcontroller with an integrated liquid crystal display driver. DEMO9RS08LA8 contains an on-board display that allows developers to explore software development using the integrated LCD driver. 1225304479865746608604 TSP 900.2 KB None None documents None 1225304479865746608604 /docs/en/quick-reference-guide/DEMO9S08LA8QSG.pdf 900150 /docs/en/quick-reference-guide/DEMO9S08LA8QSG.pdf DEMO9S08LA8QSG documents N N 2016-10-31 DEMO9RS08LA8 - Quick Reference Guide /docs/en/quick-reference-guide/DEMO9S08LA8QSG.pdf /docs/en/quick-reference-guide/DEMO9S08LA8QSG.pdf Quick Reference Guide N 803735842453594974 2022-12-07 pdf N en Oct 29, 2008 803735842453594974 Quick Reference Guide Y N DEMO9RS08LA8 - Quick Reference Guide Supporting Information Supporting Information 1 3 0 English 1225844741524712365841 TSP 257.1 KB None None documents None 1225844741524712365841 /docs/en/supporting-information/LA8LAB.pdf 257101 /docs/en/supporting-information/LA8LAB.pdf LA8LAB documents N N 2016-10-31 DEMO9RS08LA8 Lab /docs/en/supporting-information/LA8LAB.pdf /docs/en/supporting-information/LA8LAB.pdf Supporting Information N 371282830530968666 2023-06-18 pdf N en Nov 4, 2008 371282830530968666 Supporting Information Y N DEMO9RS08LA8 Lab false 0 DEMO9RS08LA8 downloads en true 0 Y TSP Quick Reference Guide 1 /docs/en/quick-reference-guide/DEMO9S08LA8QSG.pdf 2016-10-31 1225304479865746608604 TSP 2 Oct 29, 2008 Quick Reference Guide DEMO9RS08LA8 is a cost-effective board targeting quick microcontroller evaluation. The MC9RS08LA8 device is NXP’s cost-effective microcontroller with an integrated liquid crystal display driver. DEMO9RS08LA8 contains an on-board display that allows developers to explore software development using the integrated LCD driver. None /docs/en/quick-reference-guide/DEMO9S08LA8QSG.pdf English documents 900150 None 803735842453594974 2022-12-07 N /docs/en/quick-reference-guide/DEMO9S08LA8QSG.pdf DEMO9RS08LA8 - Quick Reference Guide /docs/en/quick-reference-guide/DEMO9S08LA8QSG.pdf documents 803735842453594974 Quick Reference Guide N en None Y pdf 0 N N DEMO9RS08LA8 - Quick Reference Guide 900.2 KB DEMO9S08LA8QSG N 1225304479865746608604 Supporting Information 1 /docs/en/supporting-information/LA8LAB.pdf 2016-10-31 1225844741524712365841 TSP 3 Nov 4, 2008 Supporting Information None /docs/en/supporting-information/LA8LAB.pdf English documents 257101 None 371282830530968666 2023-06-18 N /docs/en/supporting-information/LA8LAB.pdf DEMO9RS08LA8 Lab /docs/en/supporting-information/LA8LAB.pdf documents 371282830530968666 Supporting Information N en None Y pdf 0 N N DEMO9RS08LA8 Lab 257.1 KB LA8LAB N 1225844741524712365841 User Guide 1 /docs/en/user-guide/DEMO9RS08LA8_UG.pdf 2016-10-31 1222703499599723465332 TSP 1 Sep 29, 2008 User Guide User Guide User guide for Demonstration Board for the MC9RSO8LA8 Y None /docs/en/user-guide/DEMO9RS08LA8_UG.pdf English 186103 None User Guide 2023-06-19 N /docs/en/user-guide/DEMO9RS08LA8_UG.pdf User Guide for the DEMO9RS08LA8 /docs/en/user-guide/DEMO9RS08LA8_UG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf A N N User Guide for the DEMO9RS08LA8 186.1 KB DEMO9RS08LA8_UG N 1222703499599723465332 true Y Tools

Documentation

Quick reference to our documentation types.

Filters

3 documents

Compact List

Design Files

Quick reference to our design files types.
Filters

1 design file
