Kinetis® KW2x Tower System Modules

TWR-KW2x Active

Roll over image to zoom in

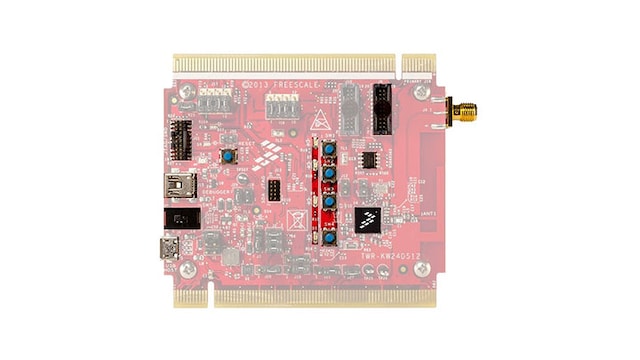

The TWR-KW2x is the development tool for the Kinetis® KW2x MCU devices, Our next-generation IEEE® 802.15.4 smart radio platform.

Kinetis KW2x MCUs are a low-power, compact integrated family of devices consisting of a high-performance 2.4 GHz IEEE 802.15.4 compliant radio transceiver and a powerful Arm® Cortex®-M4 core system with connectivity and precision mixed-signal analog peripherals.

There are two development hardware options:

  • Use TWR-KW21D256 for MKW21D256V and MKW21D512V
  • Use TWR-KW24D512 for MKW22D512V and MKW24D512V

Supported Devices

Wireless Connectivity

Thread

  • KW2xD: Kinetis® KW2xD-2.4 GHz 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm® Cortex®-M4 Core

Features

Connectivity

  • Can use PCB “F” antenna or bypass for external antenna via RF connector
  • USB port to interface with PC
  • Configurable I/O access

Debug

  • Open-SDA debugging

Components

  • LEDs and switches for demonstration, monitoring, and control

Support

  • BeeKit® tool with stacks and applications
  • An optional USB-KW24D512 packet sniffer/dongle for MKW24D512V can be used as a wireless network development, allowing monitoring of over-the-air traffic or can be used as reprogrammed development boards with application software as a network node.

Buy Options

TWR-KW24D512-Image

Click to expand

  • TWR-KW24D512
    Active

  • Tower System Development Board for Kinetis KW21D, KW22D and KW24D MCUs.

    • Tower System module
    • USB cable
    • Quick start guide
  • $171.35 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
TWR-KW21D256-Image

Click to expand

  • TWR-KW21D256
    Active

  • Tower System Development Board for Kinetis K11, K12, K21 and K22 (50 MHz) MCUs.

  • For a quantity of 1
Order from distributors
USB-KW24D512-Image

Click to expand

  • USB-KW24D512
    Active

  • USB Dongle, Kinetis W MCU, KW24, 50 MHz, 512 KB Flash.

  • $103.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 47
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
