AFLP5G35645

The AFLP5G35645 is an integrated multi-chip module. It consists of three stages of amplification and support circuitry to work at 3.3 V or 5 V with very low power consumption. The amplifier includes a 1.8 V logic control pin for bias enable/disable TDD operation.

See product image

Data Sheet

Product Details

Features

Frequency: 3400-3800 MHz
3.3 V or 5 V supply for RF amplifier
P1dB: 25 dBm @ 3600 MHz, V_CC2 = 3.3 Vdc
P1dB: 29 dBm @ 3600 MHz, V_CC2 = 5 Vdc
Power consumption:
- 114 mW @ V_CC2 = 3.3 Vdc
- 168 mW @ V_CC2 = 5 Vdc
Fully matched (50 ohm input/output, DC blocked)
Compact 4 mm x 3 mm LGA package
RoHS compliant

RF Performance Table

Typical Performance

V_CC1 = 3.3 Vdc, V_CC2 = 5 Vdc

Frequency	G_ps (dB)	I_CC (mA)
3400 MHz	30.6	32
3500 MHz	31.5	32
3600 MHz	32.0	32
3700 MHz	32.0	32
3800 MHz	31.0	32

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

N true 0 PSPAFLP5G35645en 2 Data Sheet Data Sheet t520 1 Package Information Package Information t790 1 en_US en_US en Data Sheet Data Sheet 1 1

English

AFLP5G35645 3400-3800 MHz, 32 dB, 29 dBm Airfast pre-driver module designed for wireless infrastructure applications.

1571763512942734606691 PSP

387.7 KB

None

documents

None

1571763512942734606691

/docs/en/data-sheet/AFLP5G35645.pdf

387722

/docs/en/data-sheet/AFLP5G35645.pdf

AFLP5G35645

documents

2019-10-22

AFLP5G35645 3400-3800 MHz, 32 dB, 29 dBm Data Sheet

/docs/en/data-sheet/AFLP5G35645.pdf /docs/en/data-sheet/AFLP5G35645.pdf

Data Sheet

980000996212993340

2022-12-07

pdf N

Jan 23, 2020

980000996212993340

Data Sheet

AFLP5G35645 3400-3800 MHz, 32 dB, 29 dBm Data Sheet

Package Information Package Information 1 2

English

98ASA01096D, Module 4 mm x 3 mm, SOT1934-1

1562064227862732169582 PSP

255.8 KB

None

documents

None

1562064227862732169582

/docs/en/package-information/SOT1934-1.pdf

255792

/docs/en/package-information/SOT1934-1.pdf

sot1934-1

documents

2019-07-02

98ASA01096D, Module 4 mm x 3 mm, SOT1934-1

/docs/en/package-information/SOT1934-1.pdf /docs/en/package-information/SOT1934-1.pdf

Package Information

302435339416912908

2022-12-07

pdf N

Feb 18, 2019

302435339416912908

Package Information

98ASA01096D, Module 4 mm x 3 mm, SOT1934-1

false 0 AFLP5G35645 downloads en true 1 Y PSP Y Y Data Sheet

/docs/en/data-sheet/AFLP5G35645.pdf

2019-10-22

1571763512942734606691 PSP 1

Jan 23, 2020

Data Sheet

AFLP5G35645 3400-3800 MHz, 32 dB, 29 dBm Airfast pre-driver module designed for wireless infrastructure applications.

None

/docs/en/data-sheet/AFLP5G35645.pdf

English

documents

387722

None

980000996212993340

2022-12-07

/docs/en/data-sheet/AFLP5G35645.pdf

AFLP5G35645 3400-3800 MHz, 32 dB, 29 dBm Data Sheet

/docs/en/data-sheet/AFLP5G35645.pdf

documents

980000996212993340

Data Sheet

None

pdf

AFLP5G35645 3400-3800 MHz, 32 dB, 29 dBm Data Sheet

387.7 KB

AFLP5G35645

1571763512942734606691

Package Information

/docs/en/package-information/SOT1934-1.pdf

2019-07-02

1562064227862732169582 PSP 2

Feb 18, 2019

Package Information

98ASA01096D, Module 4 mm x 3 mm, SOT1934-1

None

/docs/en/package-information/SOT1934-1.pdf

English

documents

255792

None

302435339416912908

2022-12-07

/docs/en/package-information/SOT1934-1.pdf

98ASA01096D, Module 4 mm x 3 mm, SOT1934-1

/docs/en/package-information/SOT1934-1.pdf

documents

302435339416912908

Package Information

None

pdf

98ASA01096D, Module 4 mm x 3 mm, SOT1934-1

255.8 KB

sot1934-1

1562064227862732169582

true Y Products

Documentation

Quick reference to our documentation types.

2 documents

Compact List

AFLP5G35645 3400-3800 MHz, 32 dB, 29 dBm Data Sheet[AFLP5G35645]

PDFJan 23, 2020Rev 1

98ASA01096D, Module 4 mm x 3 mm, SOT1934-1[sot1934-1]

PDFFeb 18, 2019Rev O

Design Resources

Design Files

Quick reference to our design files types.

1 design file

Printed Circuit Boards and Schematics
4 mm x 3 mm PCB DXF file

ZIPRev 3Feb 25, 202021.9 KB4MM-X-3MM-PCB

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

Quick reference to our board types.

1 hardware offering

Evaluation and Development Boards

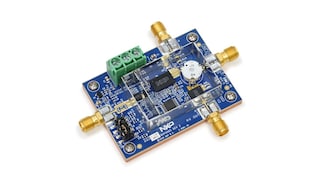

RapidRF LDMOS Front-End Designs
