Ultra-Reliable KEA Automotive Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
Kinetis® EA series of 32-bit Arm® Cortex® MCUs are targeted for a wide range of automotive and industrial applications requiring the highest level of quality and longevity support. The Kinetis EA series is an entry point to the broad Arm ecosystem and features:
- A low-power Arm Cortex-M0+ core and 8–128 KB of embedded flash
- Great EMC/ESD, high temperature, and low radiated emissions
- Scalable, highly robust performance solution for cost-sensitive automotive applications
- A broad set of reference designs, tools and application notes to help shorten design development and speed time-to-market
Product Details
Block Diagram
Features
Performance
- Up to 48 MHz Arm Cortex M0+ core
- Single-cycle 32-bit x 32-bit multiplier
Memory
- Up to 128K embedded flash
- Up to 256 B EEPROM
- Up to 16K RAM
Clocks
- External Oscillator (OSC)
- Internal Clock Source (ICS)
System functions
- Power management module (PMC) with three power modes: Run, Wait, Stop
- Low-voltage detection (LVD) with reset or interrupt, selectable trip points
- Watchdog with independent clock source (WDOG)
- Programmable cyclic redundancy check module (CRC)
- Serial wire debug interface (SWD)
- Aliased SRAM bitband region (BITBAND)
- Bit manipulation engine (BME)
Communication interfaces
- Up to two SPI modules
- Up to three UART modules
- Up to two IIC modules
- Up to one CAN module
Multiple Timers
- One 6-channel FlexTimer/PWM (FTM)
- Up to two 2-channel FlexTimer/PWM (FTM)
- One 2-channel periodic interrupt timer (PIT)
- One pulse width timer (PWT)
- One real-time clock (RTC)
Analog modules
- One 16-channel 12-bit SAR ADC with internal bandgap reference channel, operation in Stop mode, optional hardware trigger (ADC)
- Two analog comparators containing a 6-bit DAC and programmable reference input (ACMP)
Part numbers include: S9KEAZ128ACLH, S9KEAZ128ACLK, S9KEAZ128AMLH, S9KEAZ128AMLK, S9KEAZ128AVLH, S9KEAZ128AVLK, S9KEAZ64ACLH, S9KEAZ64ACLK, S9KEAZ64AMLH, S9KEAZ64AMLK, S9KEAZ64AVLH, S9KEAZ64AVLK, S9KEAZN16ACLC, S9KEAZN16ACLH, S9KEAZN16AMLC, S9KEAZN16AMLH, S9KEAZN32ACLC, S9KEAZN32ACLH, S9KEAZN32AMLC, S9KEAZN32AMLH, S9KEAZN32AVLC, S9KEAZN64ACLC, S9KEAZN64ACLH, S9KEAZN64AMLC, S9KEAZN64AMLH, S9KEAZN8ACFK, S9KEAZN8ACTG, S9KEAZN8AMFK, S9KEAZN8AMTG, S9KEAZN8AVTG.
Family Comparison Table
| Device | Flash | RAM | EEPROM | Freq | MSCAN | SCI | SPI | ADC | Flex-Timer | IIC | GPIO | Packages |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KEAZN8 | 8K | 1K | Emulated | 48MHz | 0 | 1 | 1 | 12ch 12bit | 6ch+2ch 16bit | 1 | Up to 22 | 16 TSSOP/24 QFN |
| KEAZN16 | 16K | 2K | 256B | 40MHz | 0 | 3 | 2 | 16c12b | 6ch+2ch+2ch 16bit | 2 | Up to 57 | 32/64 LQFP |
| KEAZN32 | 32K | 4K | 256B | 40MHz | 0 | 3 | 2 | 16c12b | 6ch+2ch+2ch 16bit | 2 | Up to 57 | 32/64 LQFP |
| KEAZN64 | 64K | 4K | 256B | 40MHz | 0 | 3 | 2 | 16c12b | 6ch+2ch+2ch 16bit | 2 | Up to 57 | 32/64 LQFP |
| KEAZ64 | 64K | 8K | Emulated | 48MHz | 1 | 3 | 2 | 16c12b | 6ch+2ch+2ch 16bit | 2 | Up to 71 | 64/80 LQFP |
| KEAZ128 | 128K | 16K | Emulated | 48MHz | 1 | 3 | 2 | 16c12b | 6ch+2ch+2ch 16bit | 2 | Up to 71 | 64/80 LQFP |
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-5 of 28 documents
-
Fact Sheet
Kinetis EA Sesries Family of Microcontrollers - One-PagerFeatured
-
Application Note
AN4942: Getting Started with Kinetis EA series MCUs – Application NoteFeatured
-
Data Sheet
S9KEA8P44M48SF0, KEA8 Sub-Family Data Sheet - Data SheetFeatured
-
Data Sheet
S9KEA64P64M20SF0, KEA64 Sub-Family Data Sheet - Data SheetFeatured
-
Data Sheet
S9KEA128P80M48SF0, KEA128 Sub-Family Data Sheet - Data SheetFeatured
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 13 hardware offerings
-

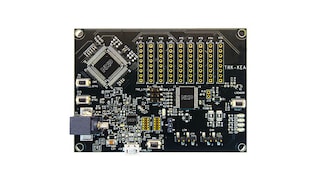

Evaluation and Development BoardsKEA General Purpose Evaluation BoardFeatured
-
