Evaluation Kit for MC56F832x and MC56F812x Digital Signal Controllers

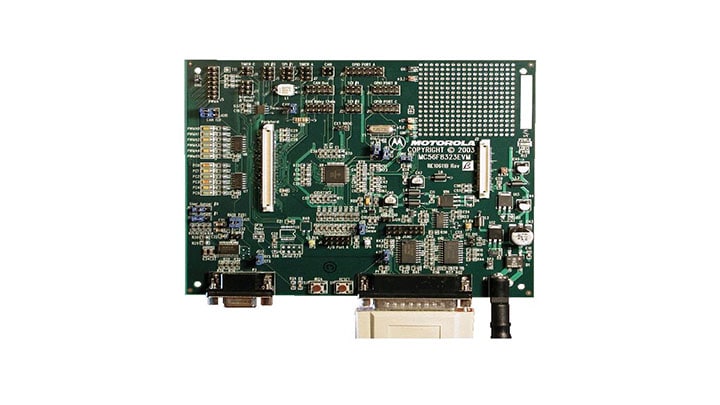

MC56F8323EVME Active

Roll over image to zoom in

The MC56F8323EVME is a low-cost kit that contains everything you need to quickly evaluate the features and capabilities of the MC56F8322 and MC56F8323 digital signal controller silicon and tools. It also provides an efficient, cost-effective vehicle for hardware and software development. It can be used alone, or in conjunction with a broad range of modular motion control development hardware. The MC56F8323EVME kit is targeted for use on PC-compatible systems running Windows® 95, Windows 98, Windows 2000, Windows ME, Windows NT 4.0, and Windows XP.

Product Details

Supported Devices

Processors and Microcontrollers

16-Bit 56800E DSC Core

Features

Microcontroller

  • MC56F8323 16-bit digital signal controller

Connectivity

  • High Speed 1 Mbit/s CAN interface
  • RS-232 interface for easy connection to a host processor
  • On-board Parallel port command converter, with a connector for a PC printer port cable
  • Joint Test Action Group (JTAG) port interface connector to interface to an external command converter
  • Optional external oscillator frequency input connector
  • Pair of Standard Daughter Card connectors enabling connection of application specific and user generated Daughter Cards

Sensors

  • 8.00 MHz crystal oscillator for DSP frequency generation

Buy Options

MC56F8323EVME-Image

Click to expand

  • For a quantity of 1
Order from distributors
