- No Longer Manufactured
- MC34SB0410
Quad Valve Controller System on Chip
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.
The NXP® MC34SB0410 quad valve and pump controller system on chip consists of four low side drivers regulated and a high side to control a DC motor.
- Suitable for loads with high inrush current and allows driving to high frequency (up to 5 KHz)
- With SPI communication, you can perform control and diagnostic functions directly on the chip
- Designed for harsh environments and includes self-recovery features due to the embedded supervision that allows extensive safety monitoring
- This system on chip is the ideal solution to drive hydraulic or pneumatic valves without "smart electronics"
- Processor Expert® component Valve Driver and Embedded Software Valve Driver enables rapid embedded application development.
Product Details
Features
Supply Voltage
- 6 V (Min), 36 V (Max)
Low Side Drivers (x4)
- Four low side drivers regulated up to 2.25 A
- +/-2.0% precision reachable with calibration
- Four low side drivers PWM up to 5 kHz with a maximum current capability up to 5 A
- All low side drivers are integrated to save PCB space
High Side Pre-Driver
- Allows to control a motor up to 16 kHz
10-Bit ADC
- ADC can monitor external or internal signals to enhance the control unit safety level
Embedded Supervision
- Under-voltage, over-voltage, clock fail detection
- Open load, short circuit, over temperature detection on each low side
- Vds monitoring of each low side driver in real time
- Over current and over temperature detection on the high side pre-driver
Serial Peripheral Interface (SPI)
- Only one SPI is needed to control the device
- MCU sent only once the current or the duty-cycle targeted through the SPI
- MCU does not need to generate PWM signals at high frequency
Key Features
- Load current(IL) 2.25, 5.3 A (Typ)
- SPI interface and input control
Buy/Parametrics
2 documents
Compact List
Application Note (1)
Data Sheet (1)
Design Resources
Hardware
Quick reference to our
board types.
2 hardware offerings
-

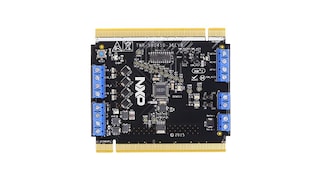

Evaluation and Development BoardsEvaluation Kit – Valves Controller SoCFeatured
Active -
Reference DesignK Series Hydraulic/Pneumatic Valve Controller System
