Embedded SW: Valve Driver Based on MC34SB0410/MC34SB0800

EMBEDDED-SW-VALVE-DRIVER

Roll over image to zoom in

This embedded software solution provides high-level support for listed NXP® analog parts (MC34SB0410 and MC34SB0800).

  • Included embedded driver provides access to all features of Valve Driver products such as writing/reading SPI registers, initialization, monitoring and controlling of present drivers.
  • Since AML (analog middleware layer) is utilized, KSDK 2.0 and also S32 SDK are supported.
  • Example projects for KDS 3.2 are part of the package.

Software Details

Features

  • SPI communication
  • Initialization based on user configuration
  • Functions for present features (model specific)
    • Low-side drivers (inductive/resistive load)
    • High-side driver (general purpose)
    • Pump motor pre-driver
  • Functions for monitoring
    • Supervision
    • Status information
    • Measurements (voltage, temperature)

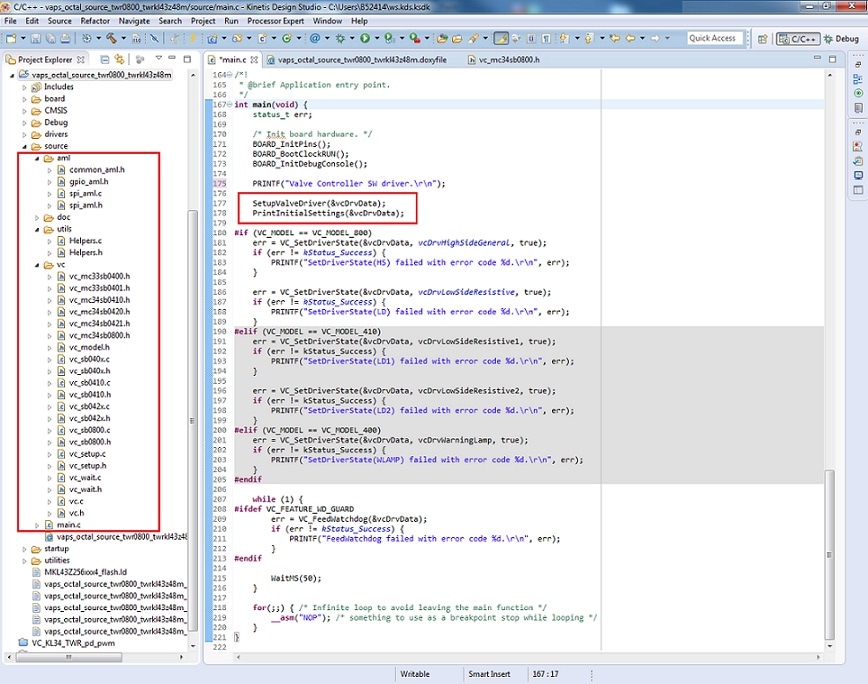

  • Kinetis® Design Studio example projects
    • Driver control and monitoring
    • Pump motor pre-driver PWM control using SPI/external pin
    • Flutter current functionality for low-side drivers
    • Software PID current regulation of low-side drivers
    • FreeMASTER control application
