Sensor ToolBox Development Board for 10-axis solution using FXLS8962AF, FXAS21002C, MAG3110 and MPL3115A2

FRDM-K22F-AGMP03
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

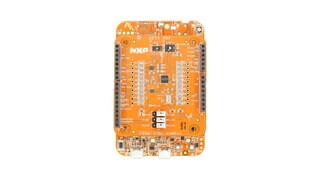

Sensor toolbox development board for FXLS8962AF with 10-axis solution and enablement software tools.

Sensor Boards:

  • Demonstration (Demo) Kit: FRDM-K22F-AGMP03, For an updated list of all the supported hardware you can refer to the ISSDK Release Notes

Embedded Software Framework:

  • IoT Sensing SDK: Provides Embedded sensor projects for the Demo and Custom Kits through MCUXpresso (Find under ‘Kits’)

Evaluation and Visualization Software:

  • Sensor Toolbox-Community Edition (STB-CE): Provides Out-of-Box sensor demo for FXLS8962AF
  • FreeMASTER-Sensor-Tool: Provides out-of-box sensor demo and application development platform for FXLS8962AF
  • Sensor Fusion: Provides 9-axis Orientation Demo using FXLS8962AF, FXAS21002C and MAG3110

Product Details

Features

Demonstration / Custom Kits

  • Enables 'Out of the box' demos and evaluation using the Sensor Toolbox - CE
    • Graph Visualization, Register level analysis, real-time interrupt evaluation and data logging
  • Enables embedded sensor project development using IoT Sensing SDK
    • Example out-of-box projects for sensors with interrupt, polling and FIFO modes using I²C, SPI
    • Algorithms such as Sensor Fusion and Pedometer
  • Enables visualization of 9-Axis sensor data and orientation results using Sensor Fusion Visualization Software

Sensor Shield Board

  • Compatible with Arduino® and most NXP Freedom development boards
  • Supports I²C and SPI communication interface with host MCU
  • Supports hardware configurability to switch accelerometer mode (normal vs motion detect) and I²C/SPI interface mode
  • Support multiple test points on the board
