Getting Started with the FRDM-K22F-AGMP03 Evaluation Board
Contents of this document
-
Get Started
-
Get to Know the Hardware
-
Configure the hardware
Sign in to save your progress. Don't have an account? Create one.
Purchase your FXLS8962AF 10-axis Development Board
Get Started
Sensor evaluation boards provide a wide spectrum of enablement hardware for quick sensor evaluation and development. It includes a demonstration kit, shield development board, and breakout board for motion and pressure sensors targeted toward IoT, Industrial, Medical applications.
This page will guide you through the process of setting up and using the FRDM-K22FAGMP03 Sensor Toolbox development kit for FXLS896xAF, FXAS21002C, MAG3110 and MPL3115 with FRDM-K22F MCU development board.
1.1 Kit Contents/Packing List
The FRDM-K22F-AGMP03 contents include:
- FRDM-STBC-AGMP03: multi-sensor shield board
- FRDM-K22F: MCU board
- USB cable
- Quick Start Guide
1.2 Additional Resources
In addition to the kit contents, the following developer resources are recommended to jump-start evaluation or development using FRDM-K22F-AGMP03 board:
1.3 User Manual
Refer to UM11588, FRDM-K22F-AGMP03 sensor toolbox development kit for additional details on the featured components and board configuration.
Get to Know the Hardware
2.1 Board Description
The FRDM-K22F-AGMP03 board enables quick customer evaluation of FXLS896xAF using sensor toolbox enablement software and tools.
- Enables 'Out of the box' demos and evaluation using the Sensor Toolbox - CE and FreeMASTER-Sensor-Tool
- Enables embedded sensor project development using IoT Sensing SDK and FreeMASTER-Sensor-Tool
2.2 Board features
- Sensor add-on/companion boards feature accelerometer, magnetometer, gyroscope, and pressure sensing capabilities compatible with the Freedom board ecosystem
- Sensor Toolbox provides a wide variety of sensor boards with compatible software tools for NXP’s 10-axis solution
- Multi-Sensor shield board for:
- FXLS8962AF: 3-axis digital accelerometer
- MPL3115: digital pressure/altimeter sensor
- FXAS21002C: 3-axis digital angular rate gyroscope (no longer manufactured)
- MAG3110: 3-axis digital magnetometer (no longer manufactured)
- Compatible with Arduino® and most NXP Freedom development boards
- Allows evaluation of current consumption and pin voltage characteristics
- Supports I2C and SPI communication interface with host MCU
- Supports hardware configurability to switch accelerometer mode (normal vs motion detection) and I2C/SPI interface mode
- Support multiple test points on the board
2.3 Board Components
Overview of the FRDM-K22F-AGMP03 board.
Configure the hardware
To configure the hardware, complete the following procedure:
- Download the latest OpenSDA drivers for FRDM-K22F board available at OpenSDA Update to the FRDM boards

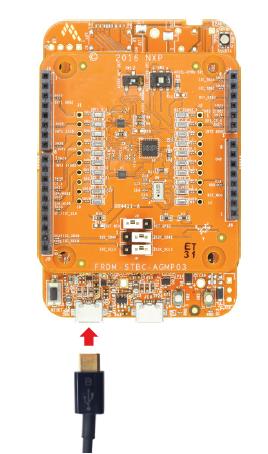

- Connect the Sensor Demonstration Kit to the PC via the USB cable between the OpenSDA USB port on the board and the USB connector on the PC
- Choose your hardware configuration. Apply required accelerometer mode and I2C/SPI interface mode by changing SW2 and SW3 appropriately
- Follow getting started instructions for sensor toolbox ecosystem software and tools for evaluation and development:
Design Resources
Board Documents
- UM11588, Introduction to FRDM-K22F-AGMP03 sensor toolbox development kit
- FRDM-K22F-AGMP03 Design Files
Get Help
Forums
Connect with other engineers and get expert advice on designing with the FRDM-K22F-AGMP03 on one of our community sites.
