UCODE® 9 Accelerates the IoT
With UCODE 9, demanding RAIN RFID tagging applications get a boost, so retailers and smart-logistics companies can accelerate their IoT adoption.
With its increased performance, UCODE 9 allows for more efficient inventory counts. Additionally, UCODE 9 allows for a re-use of the existing UCODE 8 inlay antenna designs, which offers an easy migration path from UCODE 8 to UCODE 9.
Its higher chip performance enables smaller inlay designs which helps reducing the usage of plastic and aluminum thereby promoting environmental sustainability.
Product Details
Features
Key Features
- Read sensitivity: -24 dBm
- Write sensitivity: -22 dBm
- Encoding speed: 32 bits in 0.96 ms
- Drop-in antenna replacement for UCODE 8
- Self-adjust
- Memory safeguard
- Pre-serialization of 96-bit EPC
Memory
- 96-bit of EPC memory
- Supports pre-serialization of 96-bit EPC
- 96-bit Tag IDentifier (TID) factory-locked
- 48-bit unique serial number factory-encoded into TID
- 32-bit kill password to permanently disable the tag
- Wide operating temperature range: -40 °C up to +85 °C
- 100k write cycle endurance
- 20 years data retention
Supported Features
-
All mandatory commands of the EPC global Gen2 v2.1 specification are implemented including:
- Kill command
-
The following optional commands are implemented in conformance with the EPC specification
- Block Write (2 words, 32-bit)
- Self-adjust for automated tag performance optimization
- Permalock
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Design Resources
.svg?imwidth=300)
Software
Quick reference to our software types.
4 software offerings
-
Application Example Software
Beontag Specialty Labels
-
Application Example Software
Beontag Sustainable Products
-
Connectivity Software

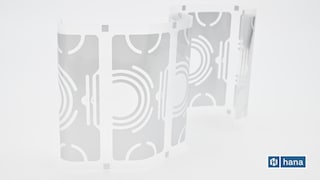

Beontag Standard RFID Inlays and Labels
-
