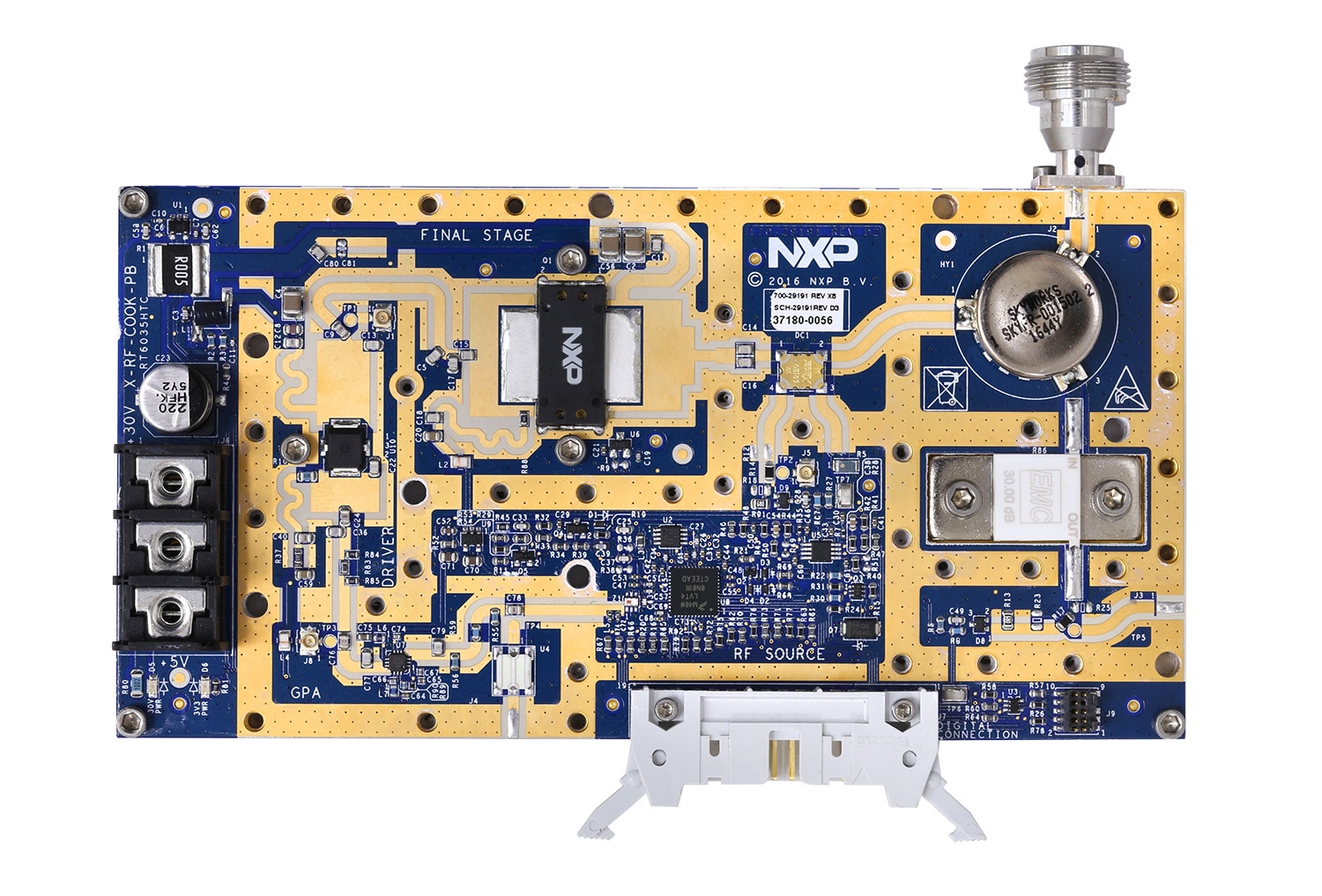

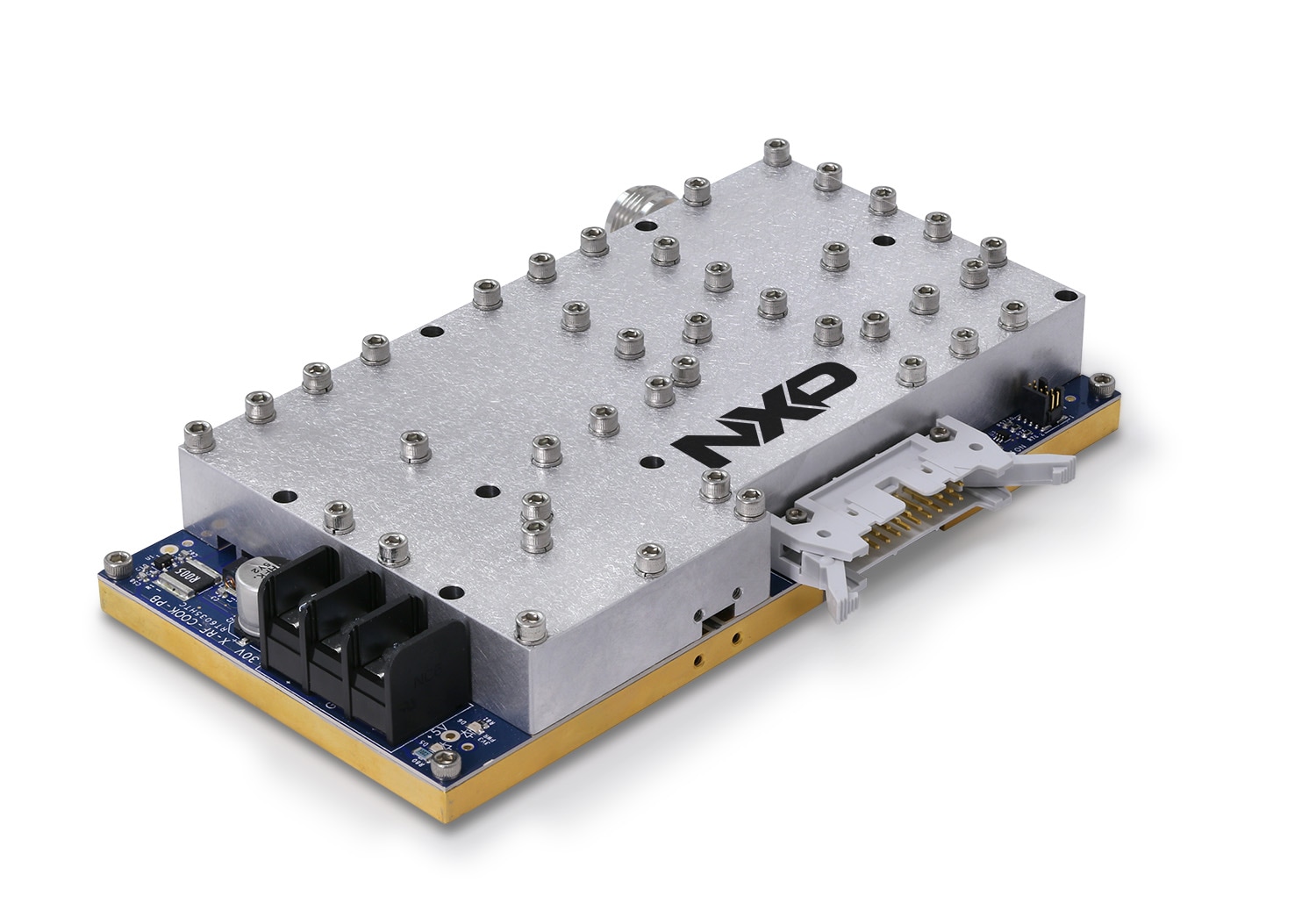

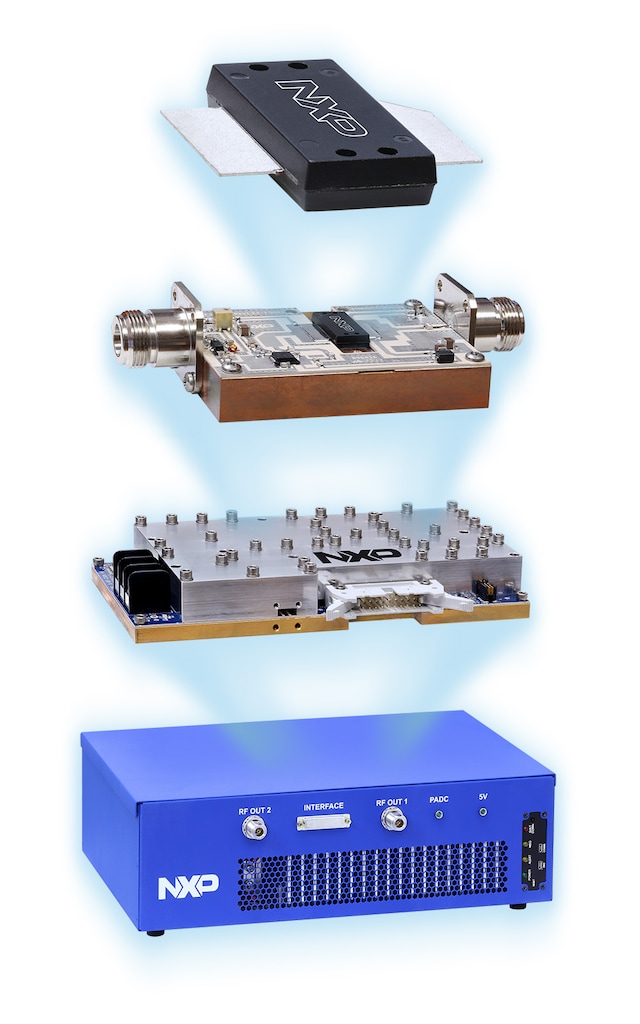

The RFEM24-250 is a fully integrated 2.45 GHz, 250 W RF generator module that includes full measurement capabilities. Its microcontroller includes an RF source that drives a 3-stage RF amplifier lineup. Its comprehensive command set controls parameters such as frequency, phase and power. The extensive measurement system provides calibrated data from multiple internal sensors and supports closed loop operations.
The RFEL24-500 NXP RF energy lab box is the development system for the RFEM24-250. It contains two RFEM24-250 RF energy modules, a cooling system (heatsink, fans), a 30 V, 500 W power supply unit and a USB to I²C interface.
Frequency | 2400-2500 MHz |
RF power output | 250 W @ 30 V |
Efficiency | 57% |
Output amplifier power | 24-32 V, 15 A Max |
VSWR | Unlimited |
RF power measurement | ±5% |
Control power | 5 V, 0.5 A Max |
RFEM24-250
