RF Energy Lab Box

RFEL24-500 No Longer Manufactured
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

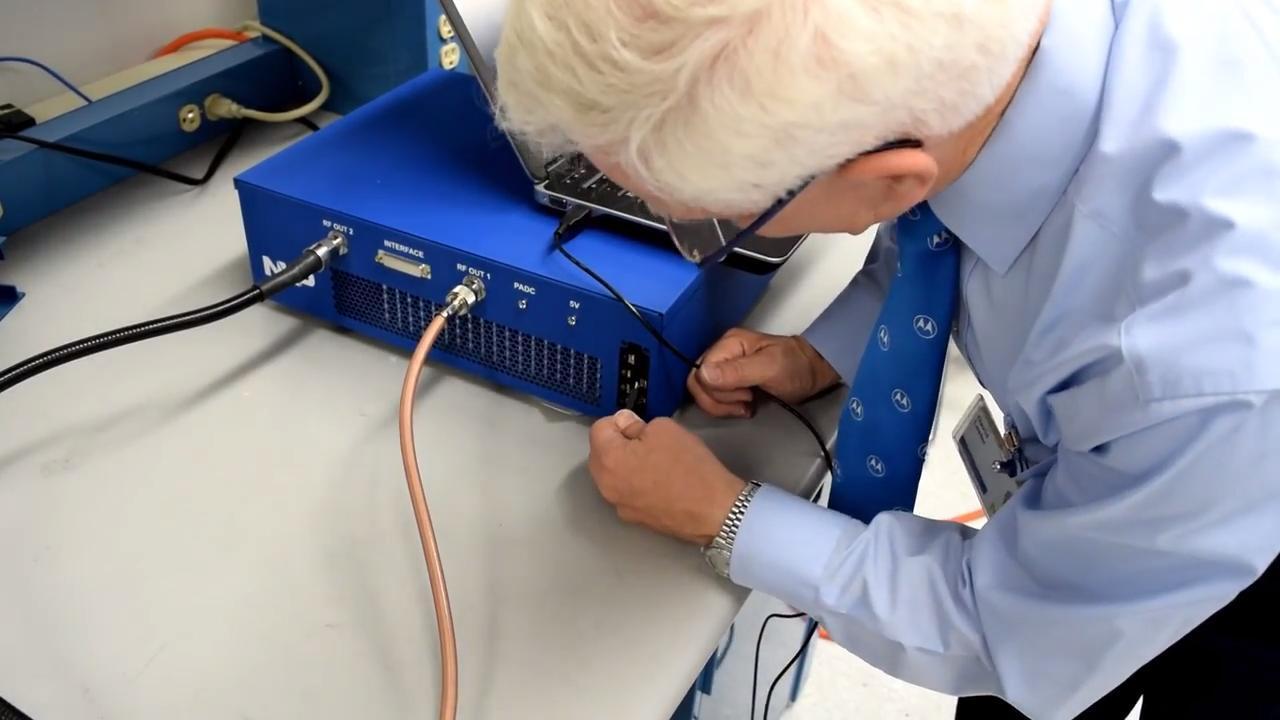

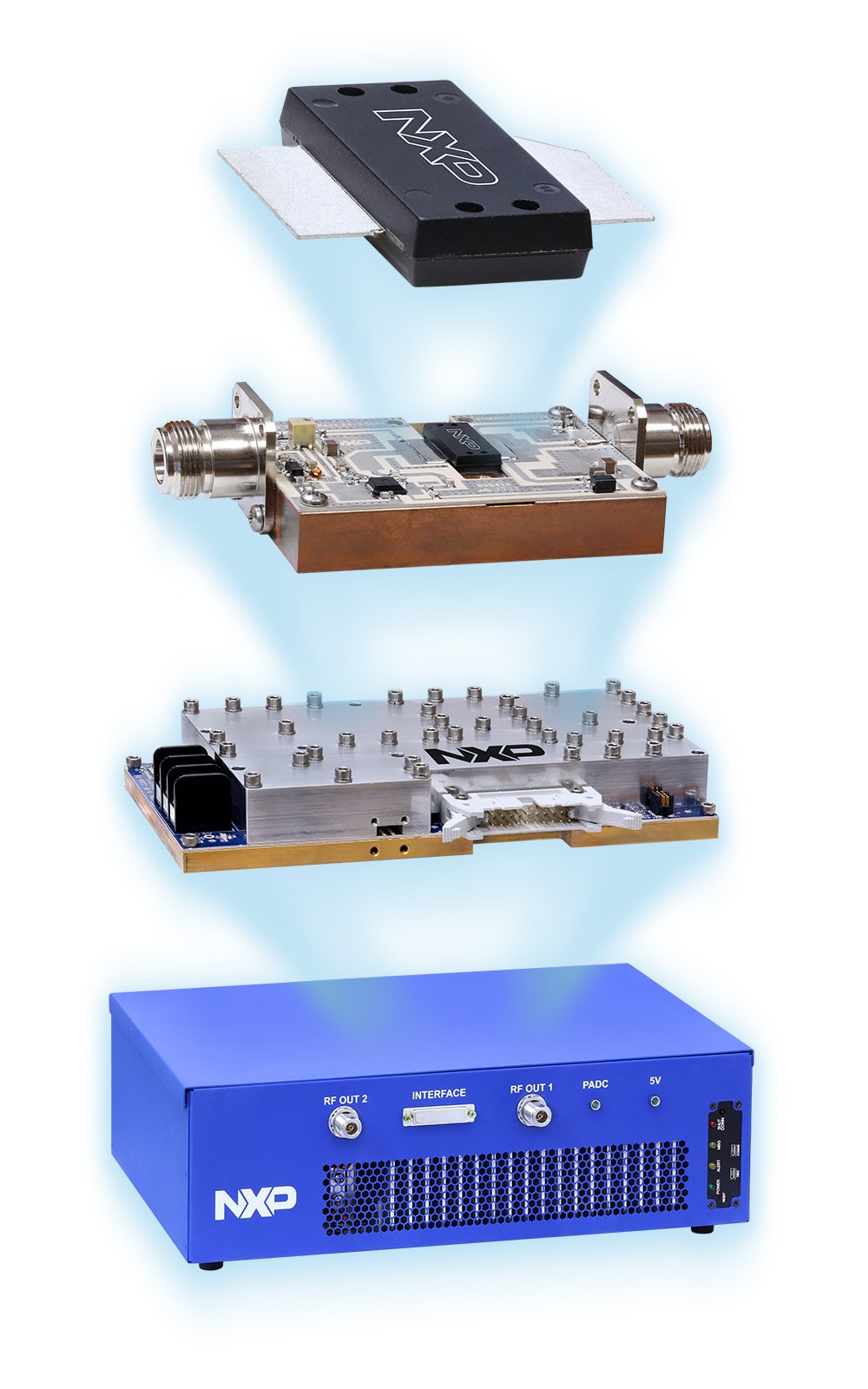

The RFEL24-500 RF energy lab box is a 2 x 250 W, fully integrated RF development system for the 2.45 GHz RFEM24-250 module. It is designed for RF and non-RF engineers to test and prototype innovative solutions without the need to invest in an extensive RF test bench. It allows designers to explore the benefits of solid-state RF energy for industrial, scientific and medical applications.

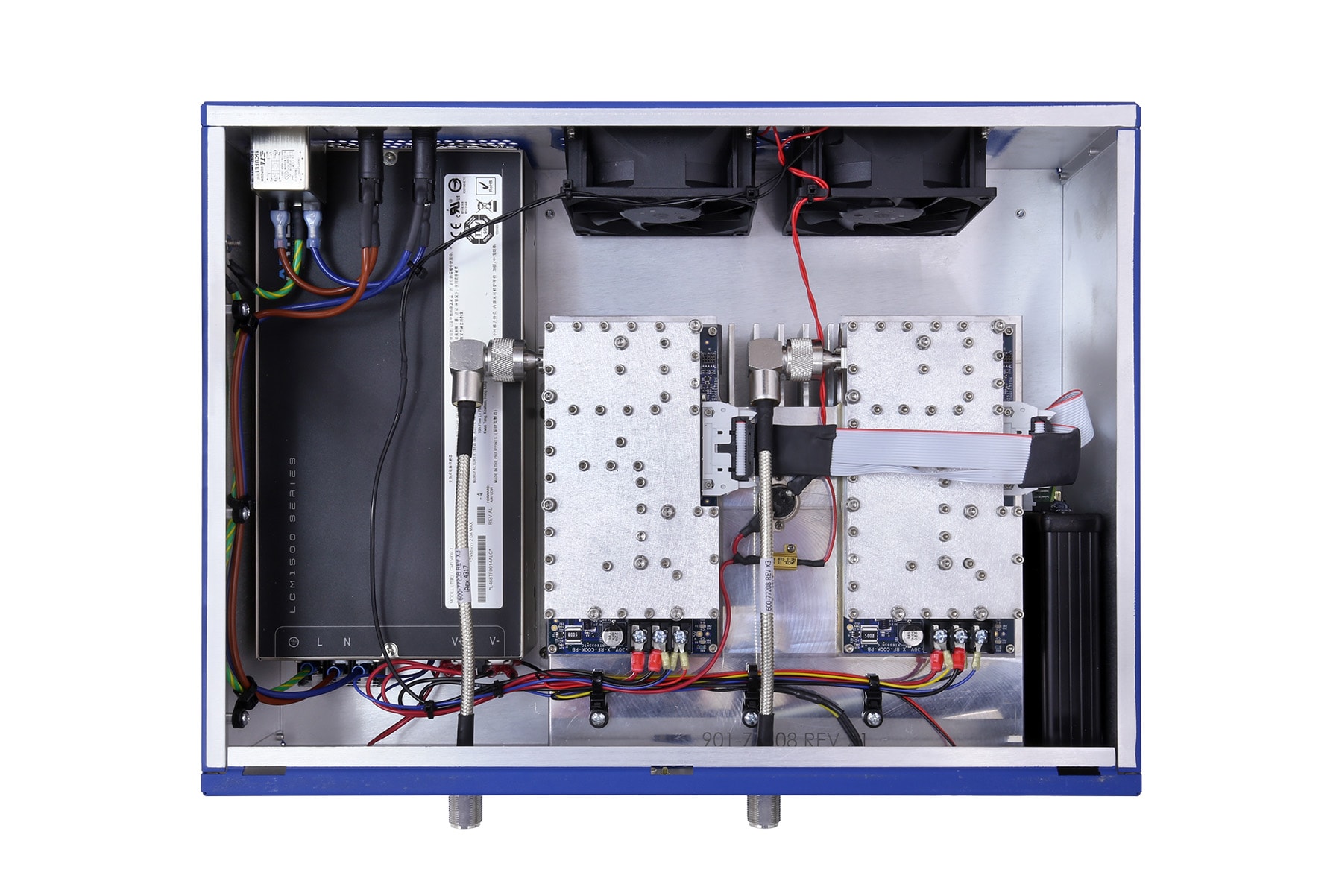

Features

  • RF signal generator
  • Two 2.45 GHz, 50 ohm, 250 W modules
  • Power, frequency and phase control

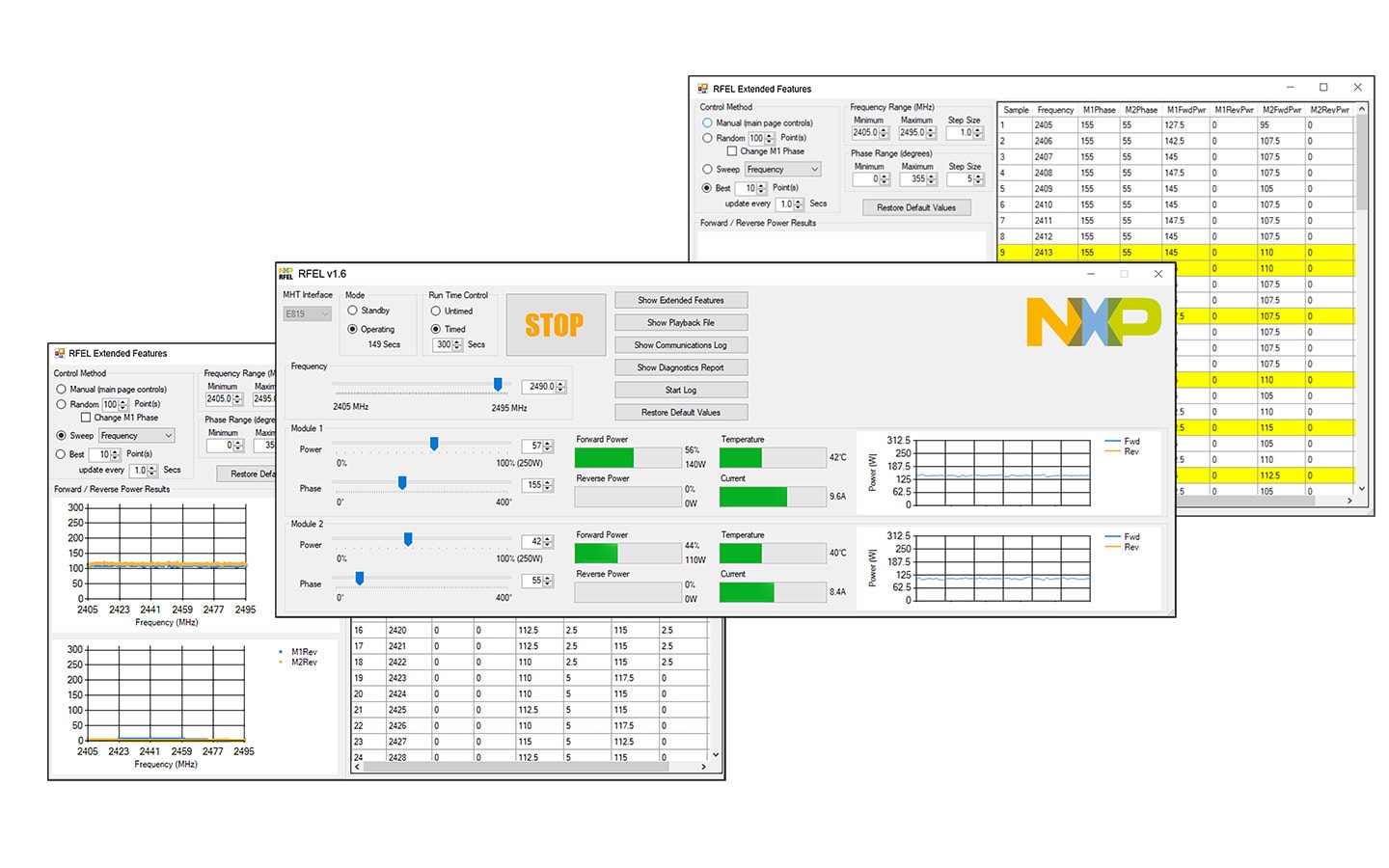

  • Operated by PC-based graphical user interface
  • Warnings and error thresholds for safe operation
  • Data logging
  • Thermostatically controlled fans
  • Frequency and phase sweep capabilities for best match optimization
  • High accuracy RF power measurement
  • Continuous monitoring of forward and reflected RF power, current and temperature
