3-Stage RF Energy Pallet Development Board
- No Longer Manufactured
- RF Energy Pallet with Pre-driver, Driver and Final Stage Amplifiers
RF Energy Pallet with Pre-driver, Driver and Final Stage Amplifiers
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

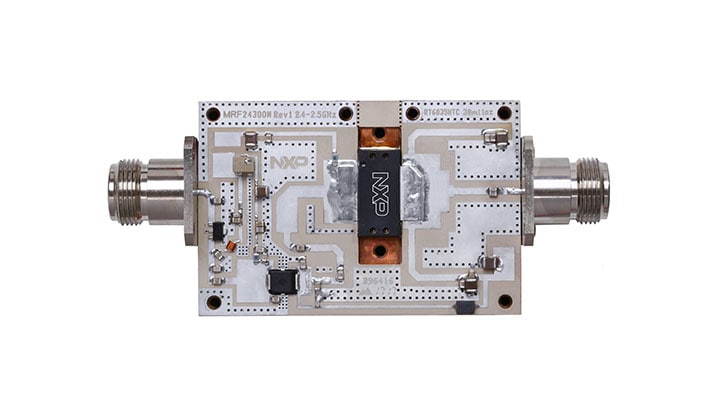

The RFEP24-300 RF energy pallet is a 3-stage development board intended to jump-start power amplifier development. It supports applications with frequencies from 2400-2500 MHz, such as cooking, welding, heating and ablation.
Product Details
Features
Frequency band
- 2400-2500 MHz
Typical performance @ 24-32 V
- Output power: 300 W
- Gain: 41.6 dB
- Drain efficiency (Min): 58%
Board size
- 2" x 3" (5.1 cm x 7.6 cm)
Circuit Information contains
- RF energy pallet overview
- Performance and measurements
- Development board component layout
- Development board parts list
Related Solutions
- RFEL24-500: 500 W NXP RF energy lab box development system, enabling distinct features such as scalable power and phase control
- RFEM24-250: 250 W RF generator, enabling distinct features such as scalable power and phase control targeted for replacing vacuum tube based applications
