Note: JN5189/88T is preferred for any new new Zigbee®, Thread design. No new software releases planned
The KW20Z is an ultra low-power, highly-integrated single-chip device that enables IEEE® 802.15.4-2011 RF connectivity for portable, extremely low-power embedded systems. Applications include portable health care devices, access control, security systems, smart energy and home area networks.
The KW20Z Wireless MCU integrates a 2.4 GHz transceiver supporting O-QPSK modulations, an Arm® Cortex®-M0+ CPU, 160 KB Flash and 20 KB SRAM, 802.15.4 packet processor, hardware security and peripherals optimized to meet the requirements of the target applications.
| Part Number | Wireless Connectivity Protocol | Package Size | Hardware Development Tool |

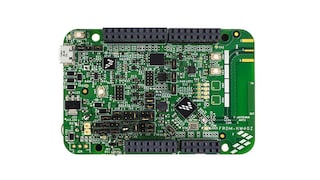

| MKW40Z160VHT4 | Bluetooth Low Energy and IEEE 802.15.4 | 7 mm x 7 mm x 1 mm 48-pin Laminate QFN | FRDM-KW40Z USB-KW40Z |
| MKW30Z160VHM4 | Bluetooth Low Energy | 5 mm x 5 mm x 1 mm 32-pin Laminate QFN | |
| MKW20Z160VHT4 | IEEE 802.15.4 | 7 mm x 7 mm x 1 mm 48-pin Laminate QFN |
MCUXpresso Config Tools – A comprehensive suite of system configuration tools, including pins, clocks, SDK builder and more.
MCUXpresso SDK – An open-source software development kit (SDK) built specifically for your processor and evaluation board selections.
MCUXpresso IDE – An easy-to-use integrated development environment (IDE) for creating, building, debugging, and optimizing your application.
Kinetis Connectivity Software Version 1.0.1 includes the following components:
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
