NTM88 is the recommend family for new designs as the FXTH87 family is discontinued.

The FXTH87 is a highly integrated tire pressure sensor family and features:

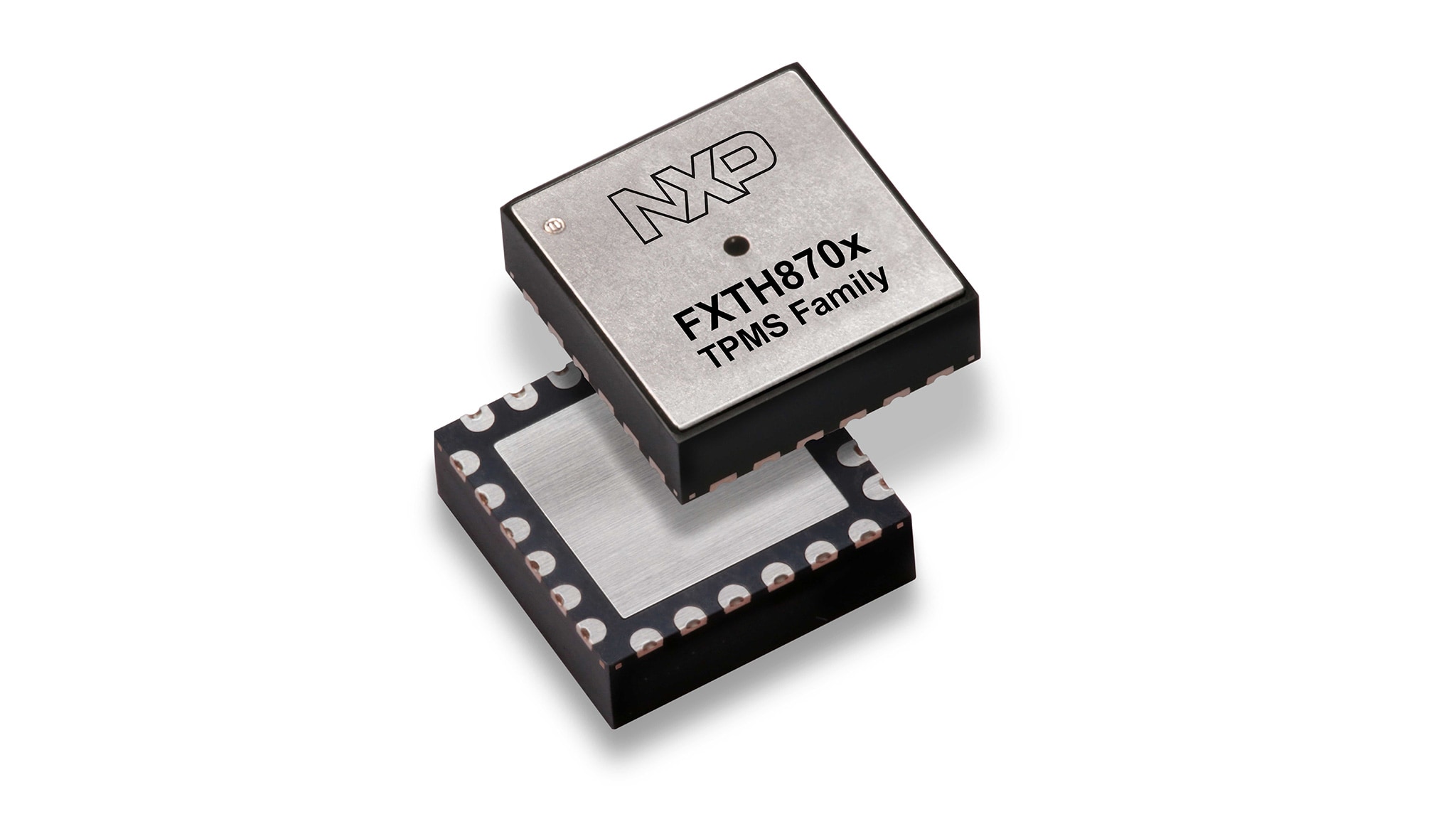

Very small footprint in a 7 mm x 7 mm package
Very low power consumption
Very large memory size at 8 kB
Dual-axis accelerometer architecture; the XZ axis offers motion detection and tire localization capabilities

Data Sheet

Reference Manual

Product Details

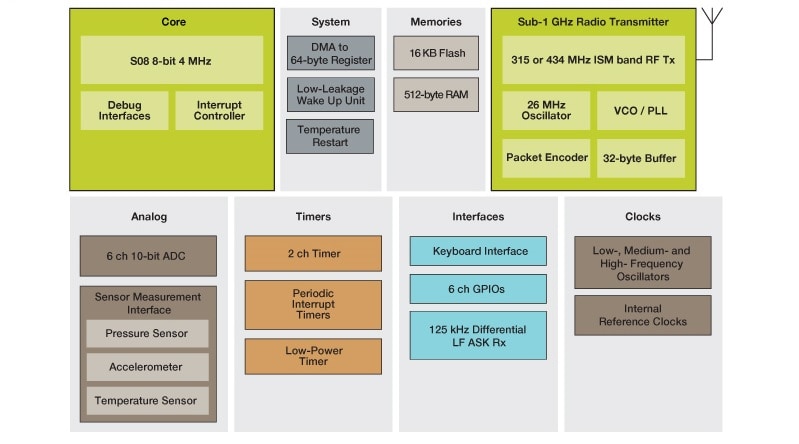

Block Diagram

FXTH87xxxx6T1 TPMS

Get diagram PDF

Features

QFN 7 x 7 x 2.2 mm package enables visible solder joint for inspection
100–450 kPa and 100–900 kPa pressure ranges
Z-axis or dual XZ-axis accelerometers
Accelerometer standard or precision tolerances available
Low-power wake-up timer and periodic reset is driven by LFO
Dedicated state machines for reduced power consumption
8-bit MCU/S08 core with SIM, interrupt and debug/monitor
512 Bytes RAM / 16 k Flash (8 k for NXP^® library, 8 k for applications)
Internal 315/434 MHz RF transmitter
Internal 125 kHz LF receiver
Six multipurpose GPIO pins (including two A/D inputs)

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Documentation

Quick reference to our documentation types.

1-5 of 19 documents

Data Sheet
FXTH870x6, Tire Pressure Monitor Sensor - Data SheetFeatured
PDFRev 1.7Feb 8, 20191.8 MBFXTH870X6English
Supported Parts
Account Required
Data Sheet
FXTH870xD, Tire Pressure Monitor Sensor - Data SheetFeatured
PDFRev 1.6Feb 8, 20191.8 MBFXTH870XDEnglish
Supported Parts
Account Required
Data Sheet
FXTH871x7 Tire Pressure Monitor Sensor - Data Sheet
PDFRev 0.6Apr 29, 20202.0 MBFXTH871X7English
Supported Parts
Account Required
Data Sheet
FXTH871x6 Tire Pressure Monitor Sensor - Data sheet
PDFRev 2.4Apr 29, 20201.9 MBFXTH871X6English
Supported Parts
Account Required
Data Sheet
FXTH871xD Tire Pressure Monitor Sensor - Data sheet
PDFRev 1.8Apr 29, 20202.0 MBFXTH871XDEnglish
Supported Parts
Account Required
Reference Manual
FXTH87 Family Evaluation Design Reference Manual - Reference Manual

PDFRev 1.0Sep 2, 20151.0 MBFXTH87EDRMEnglish
Application Note
AN5149: Field Software Updates Using TPMS LF Application Note

PDFRev 4May 24, 20233.5 MBAN5149English

Account Required
Application Note
AN12524: Migration from FXTH87/87E to NTM88 Application Note

PDFRev 4May 9, 2022228.8 KBAN12524English

Account Required
Application Note
AN4391: Using the FXTH87 and NTM88 Family of LF Receivers for TPMS Applications Application Note

PDFRev 1.1May 2, 20222.0 MBAN4391EnglishAssociated File: AN4391SW

Account Required
Application Note
AN13371: TPMS Clocks Calibration Application Note

PDFRev 1Oct 1, 2021316.9 KBAN13371English
Application Note
AN12523: Firmware Versus Library Model Applications Application Note

PDFRev 3Mar 24, 2021386.5 KBAN12523English

Account Required
Application Note
AN12519: Implementing Post-Assembly TPMS Sensor Calibration Application Note

PDFRev 1Jul 1, 2019190.7 KBAN12519English

Account Required
Application Note
AN5322: TPMS Wheel Location Introduction and Main Concepts Application Note

PDFRev 1.0Jan 25, 20176.7 MBAN5322English

Account Required
Application Note
Using the Kinetis KW01 as the Receiver for the FXTH870xD TPMS Sensor

PDFRev 0Aug 11, 20151.4 MBAN5136EnglishAssociated File: AN5136SW1 AN5136SW2 AN5136SW3
Application Note
AN4277. Interfacing to Freescale’s FXTH87xx In-Flash Firmware Routines Using C-language Constructors
PDFRev 1Oct 22, 201482.2 KBAN4277EnglishAssociated File: AN4277SW
Supported Parts
User Guide
FXTH87xx22 Embedded Firmware User Guide - User Guide

PDFRev 3Aug 17, 2022589.7 KBFXTH87XX22FWUGEnglish
User Guide
FXTH87xx11 and FXTH87xx12 Embedded Firmware User Guide - User Guide
PDFRev 3Aug 17, 2022547.8 KBFXTH87XX1XFWUGEnglish
Supported Parts
User Guide
UM11325: Installing and Using CodeWarrior IDE for TPMS for FXTH87, FXTH87E and NTM88 User Manual

PDFRev 1Jan 9, 20209.1 MBUM11325English

Account Required
User Guide
FXTH87xx02 Embedded Firmware User Guide - User Guide
PDFRev 2.2Apr 5, 2017464.2 KBFXTH87XX02FWUGEnglish
Supported Parts

Show All

Design Resources

Design Files

Quick reference to our design files types.

1-5of 12 design files

Receive the full breakdown. See the product footprint and more in the eCad file.

Printed Circuit Boards and Schematics
GRB-TPMS-FXTH871511-434

ZIPRev BJun 8, 2015 00:00:00309.4 KBGRB-TPMS-FXTH871511-434
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
Schematic TPMS FXTH870912 315MHz

PDFRev BApr 29, 2014 00:00:0064.5 KBSCH-TPMS-FXTH870912-315
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
Schematic TPMS FXTH871511 434MHz

PDFRev BJun 8, 2015 00:00:0055.1 KBSCH-TPMS-FXTH871511-434
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
GRB-TPMS-FXTH870911-315

ZIPRev DJun 9, 2015 00:00:00311.2 KBGRB-TPMS-FXTH870911-315
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
GRB-TPMS-FXTH870912-434

ZIPRev 2.1Jun 13, 2014 00:00:00307.7 KBGRB-TPMS-FXTH870912-434
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
GRB-TPMS-FXTH870911-434

ZIPRev DJun 9, 2015 00:00:00312.1 KBGRB-TPMS-FXTH870911-434
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
Schematic TPMS FXTH871511 315MHz

PDFRev BJun 8, 2015 00:00:0053.6 KBSCH-TPMS-FXTH871511-315
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
Schematic TPMS FXTH870912 434MHz

PDFRev B1Jun 2, 2014 00:00:0065.5 KBSCH_TPMS_FXTH870912-434
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
Schematic TPMS FXTH870911 315MHz

PDFRev DJun 9, 2015 00:00:0055.4 KBSCH-TPMS-FXTH870911-315
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
GRB-TPMS-FXTH870912-315

ZIPRev 2.0Apr 29, 2014 00:00:00307.8 KBGRB-TPMS-FXTH870912-315
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
Schematic TPMS FXTH870911 434MHz

PDFRev DJun 9, 2015 00:00:0055.7 KBSCH-TPMS-FXTH870911-434
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
GRB-TPMS-FXTH871511-315

ZIPRev BJun 8, 2015 00:00:00310.2 KBGRB-TPMS-FXTH871511-315
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Show All

Software

Quick reference to our software types.

4 software files

Libraries
NEW_TPMS_LFOCAL Library

ZIPRev 4.0Oct 4, 2021 14:55:00615.6 KBNEW_TPMS_LFOCAL_Lib

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Demo Software
TPMS Demo BLE Beacons by GenFSK

ZIPRev 1.0Oct 2, 2019 14:41:0011.5 MBTPMS-DEMO-BLE-GENFSK

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Debugging and Visualization Tools
Starter Package for FXTH87/E and MKW01

ZIPRev 1.0Sep 20, 2019 13:30:0022.9 MBFXTH-STARTER-PACKAGE

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Debugging and Visualization Tools
NXP Sensor GUI

ZIPRev 4.0.3.5Jan 16, 2017 14:48:00176000 KBSENSOR-GUI-R4
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
