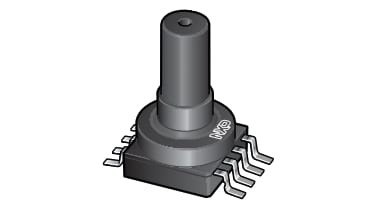

SOT1691-2: SO8

Overview

SO8, plastic, small outline package; 8 terminals; 2.54 mm pitch; 1.07 mm x 1.07 mm x 1.99 mm body

Package Version	Package Name	Mount	Terminal Position	Package Style	Dimensions	Termination Count	Material
SOT1691-2	SO8	surface mount	double	SO	1.07 x 1.07 x 1.99	8	plastic

Manufacture Code	Reference Codes	Issue Date
98ASA10686D	PDIP-P8(JEDEC	2017-06-11

Products

Part	Description	Quick access
MPVZ5004GW6U	Pressure Sensor, 5V, 0/3.92kPa, SOP 8, Port	View parametrics
MPVZ4006GW6U	Pressure Sensor, 5V, 0/6kPa, SOP 8, Port	View parametrics
MPVZ5010GW6U	Pressure Sensor, 5V, 0/10kPa, SOP 8, Port	View parametrics
