LPCXpresso Board for LPC11U68

OM13058 Active

Roll over image to zoom in

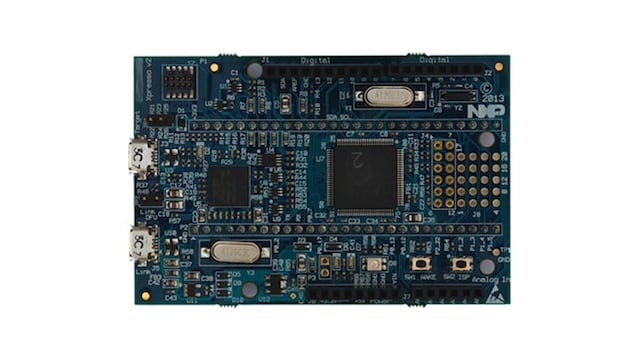

The LPC11U68 LPCXpresso board with NXP®'s LPC11U68 Arm® Cortex®-M0+ microcontroller is designed to make it as easy as possible to get started with your project.

The LPC11U68 LPCXpresso board is the correct development board to use for evaluation of the LPC11E6x devices. All other LPC11Exx devices should use the appropriate LPC11Exx development boards as found on their respective product information pages.

LPCXpresso is a low-cost development platform available from NXP supporting NXP's Arm®-based microcontrollers. The platform is comprised of a simplified Eclipse-based IDE and low-cost target boards which include an attached JTAG debugger. LPCXpresso is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production.

Product Details

Supported Devices

Processors and Microcontrollers

LPC1100 Arm Cortex-M0+/M0

  • LPC11U00: Scalable Entry Level 32-bit Microcontroller (MCU) based on Arm® Cortex®-M0+ and Cortex®-M0 Cores

Features

Debug

  • Integrated JTAG Debugger, which can also be used to debug an external target

Tools and OS Support

  • Fully supported by LPCXpresso Eclipse-based IDE and GNU C/C++ toolchain, available in free and Pro versions

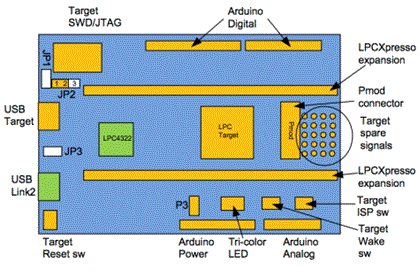

  • LPCXpresso / Arm® Mbed™, PMOD, and Arduino® UNO expansion connectors give simple access to a wide range of available expansion boards

User Components

  • Tri-color LED
  • ISP and WAKE buttons for easy testing of software functionality

Buy Options

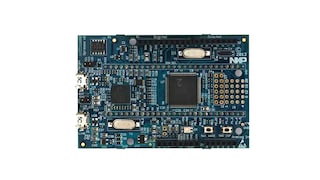

OM13058-Image

Click to expand

  • OM13058

  • LPCXpresso board for LPC11U68 with Link2OBD.

    • LPCXpresso™ LPC11U68 Development Board
  • $27.60 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 7
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
