HVBMS Centralized Cell Monitoring Unit Using ETPL with MC33775A (CMU)

RD33775ACNTEVB Active

Roll over image to zoom in

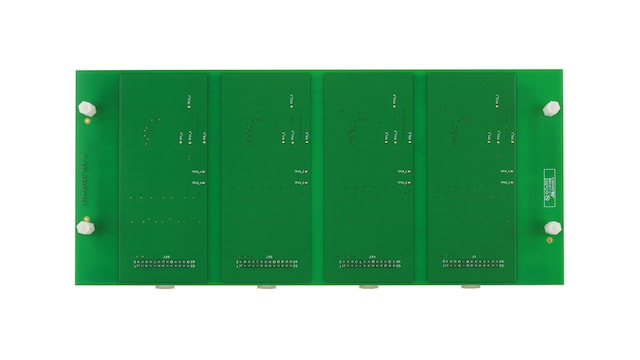

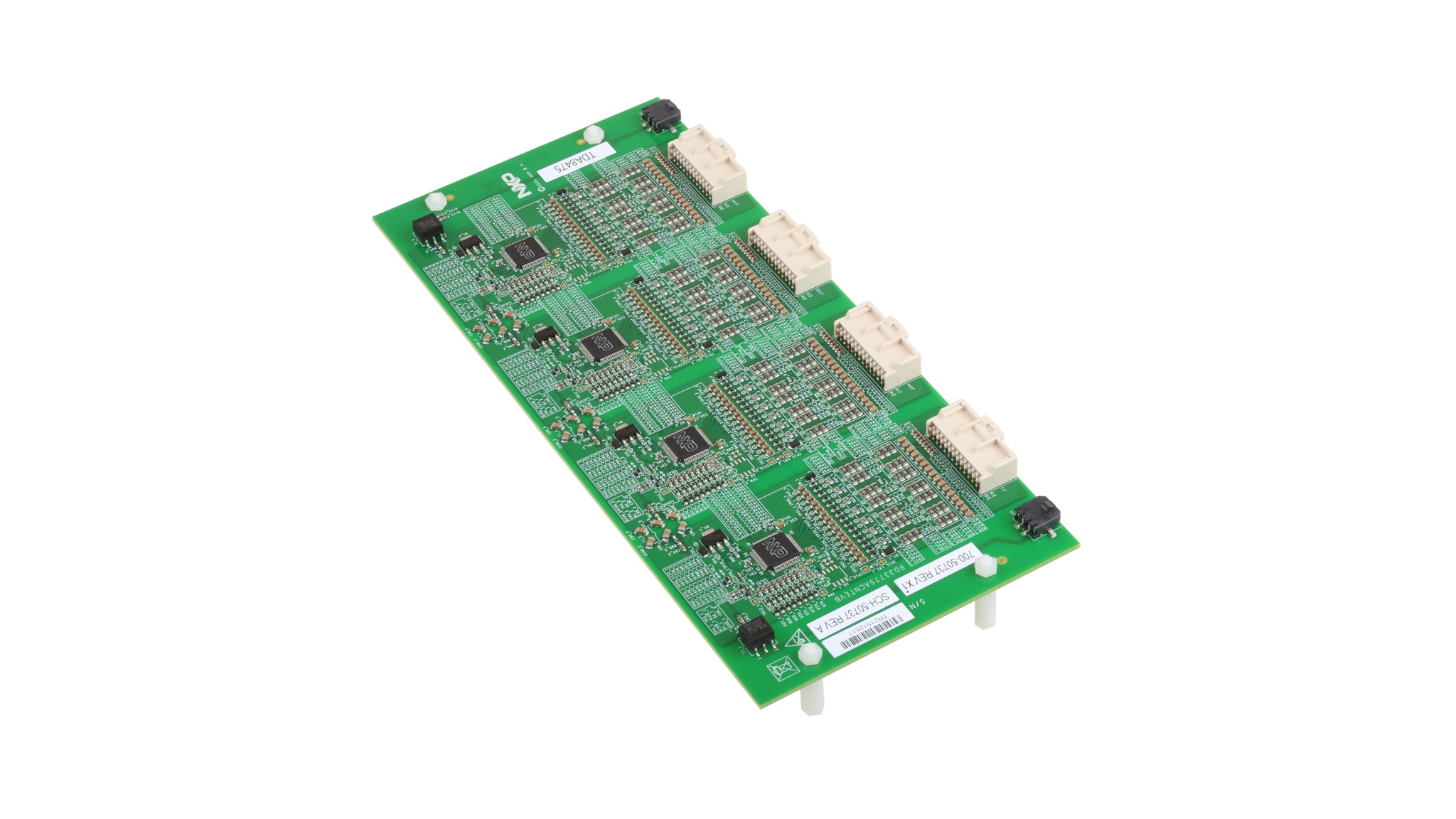

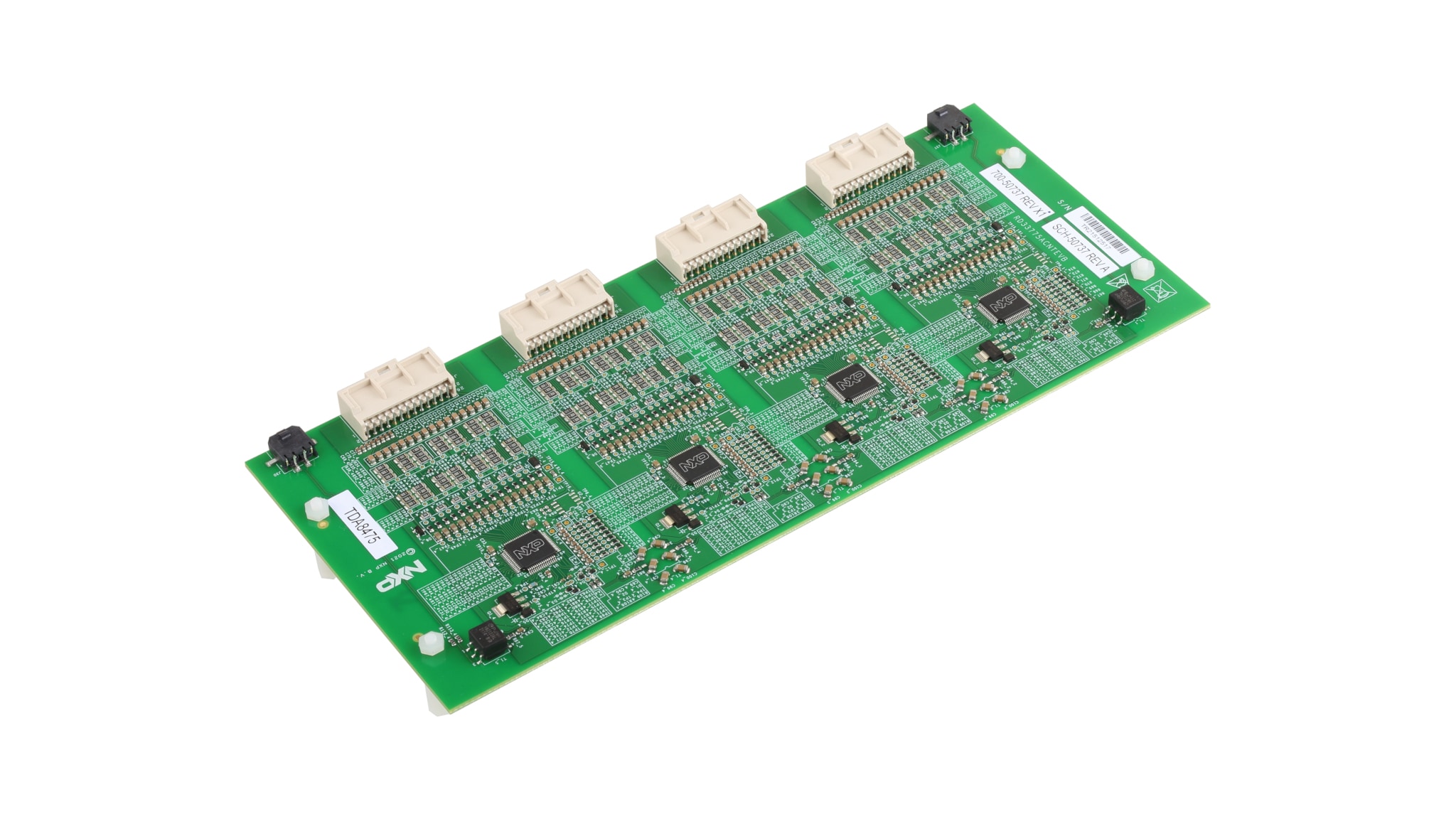

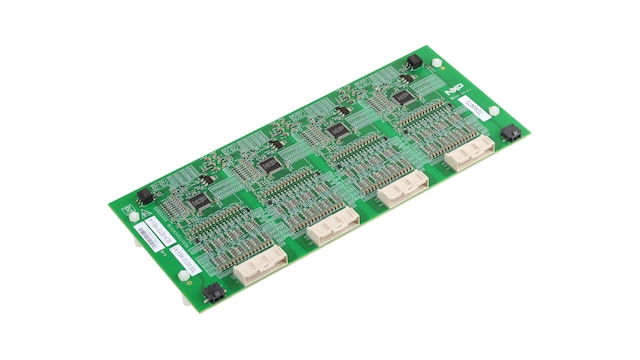

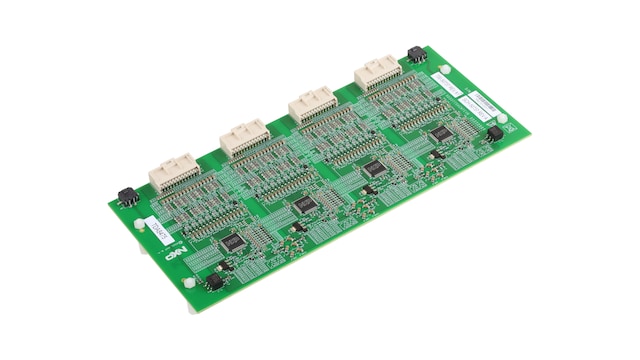

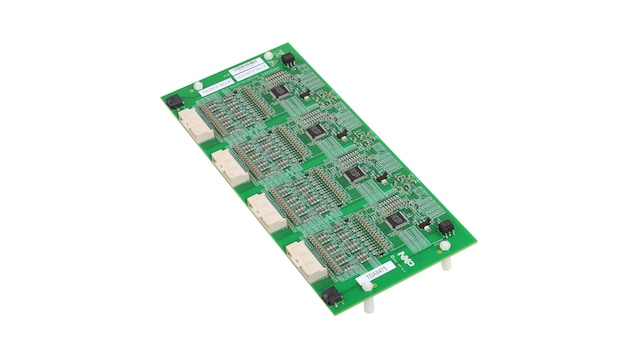

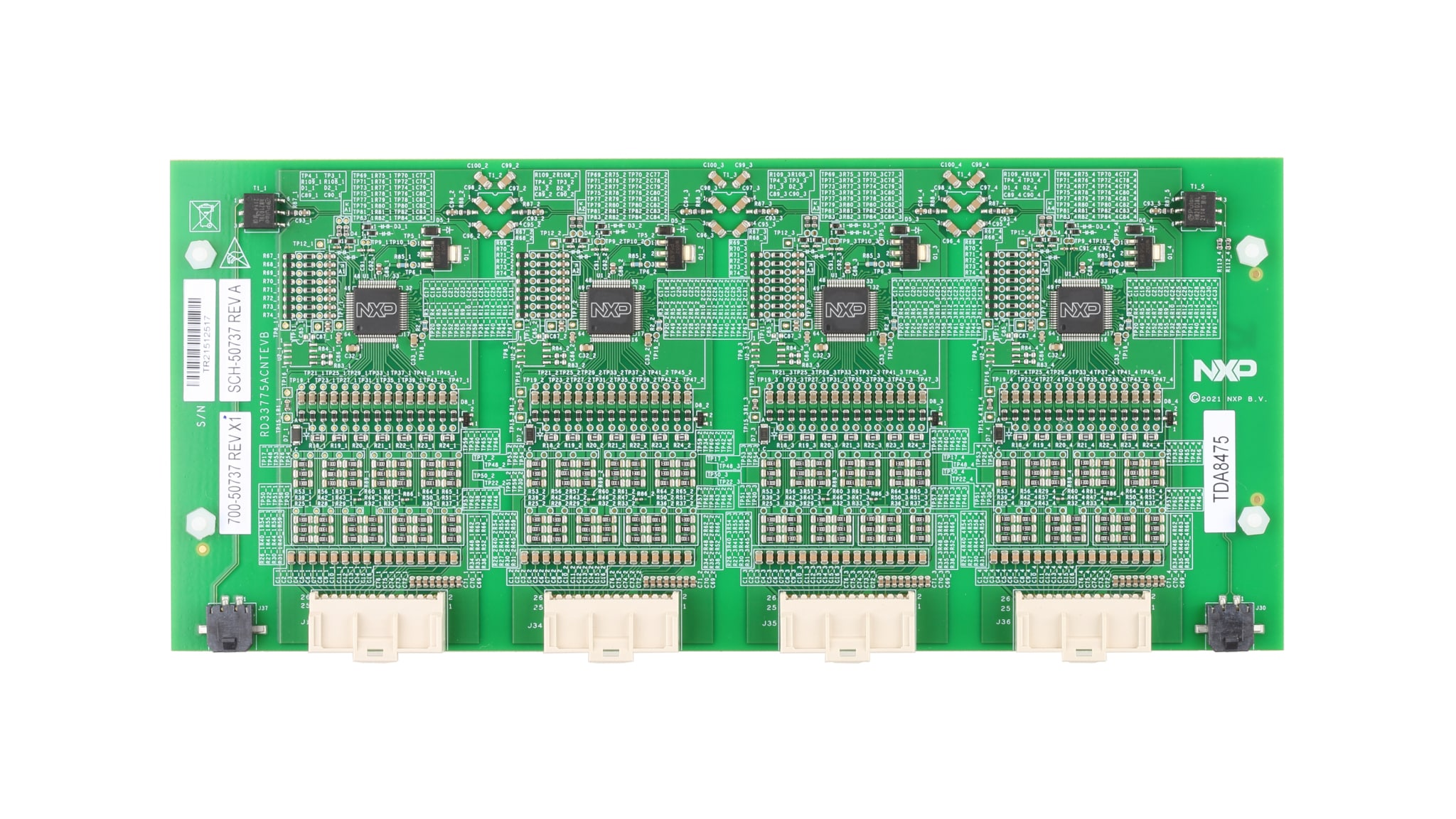

The RD33775ACNTEVB is a centralized cell monitoring unit (CMU) reference design with electrical transport protocol link (ETPL) communication. It is ideal for rapid prototyping of a high-voltage battery management system (HVBMS) hardware and software. This board contains four MC33775A analog front ends (AFEs) in a daisy chain.

This board is part of the RD-HVBMSCTBUN HVBMS reference design bundle using ETPL.

Block Diagram

HVBMS Centralized Cell Monitoring Unit Using ETPL with MC33775A - RD33775ACNTEVB

RD33775ACNTEVB CMU Block diagram
Get diagram PDF

Supported Devices

Power Management

Battery Cell Controllers

  • MC33775: 14 Channel Li-Ion Battery Cell Controller IC ASIL D

Features

Voltage Measurement

  • 4 MC33775A Battery cell controllers (BCCs) for up to 56 cells, extendable by adding more CMUs to the daisy chain
  • Life-time guaranteed high accuracy cell voltage measurement channels, with averaging and advanced filtering

Temperature Measurement

  • 8 analog inputs (including temperature sensors) or GPIOs with advanced filtering per BCC

Cell Balancing

  • Integrated temperature-controlled cell balancing with up to 300 mA (100 mA using default setup)

Communication

  • Isolated electrical transport protocol link (ETPL) communication between BJB and BMU

Cost Reduction

  • Optimized BOM using capacitive isolation on board

Buy Options

RD33775ACNTEVB-Image

Click to expand

  • RD33775ACNTEVB
    Active

  • HVBMS Centralized Cell Monitoring Unit Using ETPL with MC33775A (CMU).

  • Kit contains:

    • 1 RD33775ACNTEVB board
    • 4 supply cables
    • 1 ETPL cable
  • $493.35 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE20-Image

Click to expand

  • BATT-TPLCABLE20
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE50-Image

Click to expand

  • BATT-TPLCABLE50
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-14CTCABLE25-Image

Click to expand

  • $34.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 30
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
