FS84/FS85/FS66 Safety SBC Programming Boards

KITFS85SKTEVM Active

Roll over image to zoom in

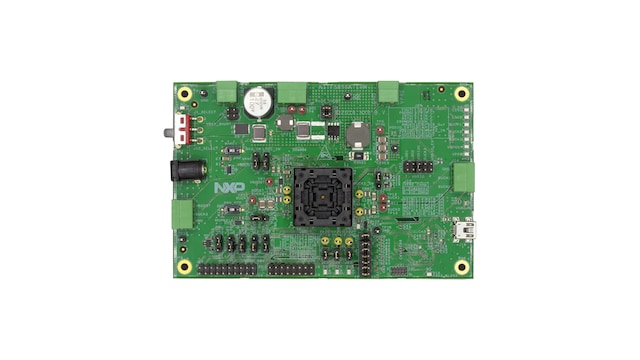

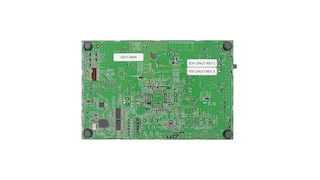

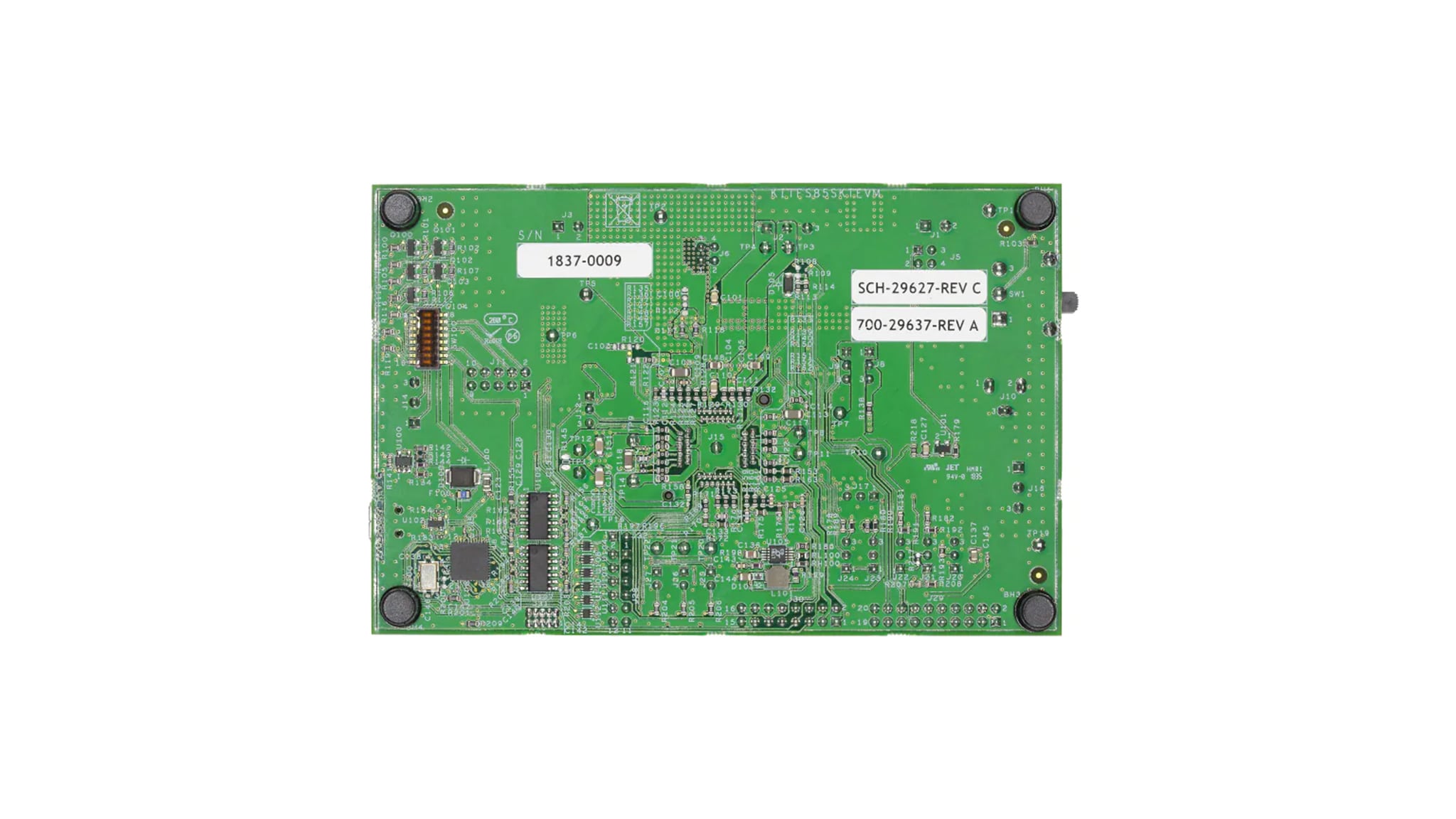

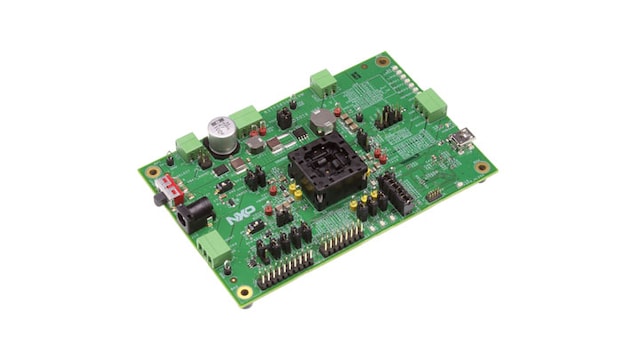

KITFS85SKTEVM provides easy customer configuration of the devices thanks to a QFN56 socket. Devices can be easily placed on socket, fused and then soldered on customer prototype board. It's targeting 12V automotive and 24 V truck application.

This kit can be connected to the FlexGUI software which allows the customer to modify the registers and develop an OTP (One Time Programming) configuration and burn it when ready. In addition to the OTP programming, the customer can test all features (with some limitation due to the socket). The OTP can burn 3 times.

Supported Devices

Power Management

System Basis Chips

  • FS85: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL D
  • FS84: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL B
  • FS6600: Safety System Basis Chip for S32S2 Microcontroller, Fit for ASIL D

Features

  • VBAT power supply connectors (Jack and Phoenix)
  • VPRE output 3.3V or 4.1V
  • VBUCK1/2 in a standalone or multiphase mode
  • VBUCK3
  • VBOOST 5.0V or 5.74V, up to 400mA
  • LDO1 and LDO2, from 1.1V to 5V, up to 400mA
  • Ignition key switch
  • FS0B External Safety pin
  • Embedded USB connection for easy connection to software GUI (access to SPI/I2C bus, IOs, RSTB, FS0B, INTB, Debug, MUX_OUT, regulators)
  • LEDs that indicate signal or regulatory status
  • Support OTP fuse capabilities
  • USB connection for register access, OTP emulation and fuse

    • Note that due to the socket, all output current should be limited to 1A maximum

Buy Options

KITFS85SKTEVM-Image

Click to expand

  • KITFS85SKTEVM
    Active

  • Evaluation board - FS85/FS84/FS66 Functional SBC, with programming socket.

    • KITFS85SKTEVM board
    • Power Supply mating connectors
    • USB mini cable Type A Male / Type B Male
  • $310.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
