FS84 QFN48EP Safety SBC Evaluation Board for Automotive

KITFS84AUTEVM Active

Roll over image to zoom in

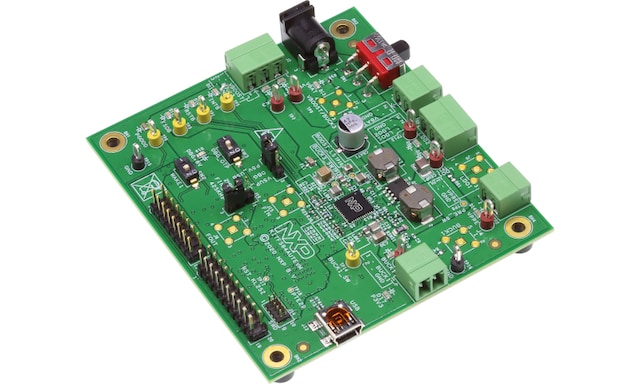

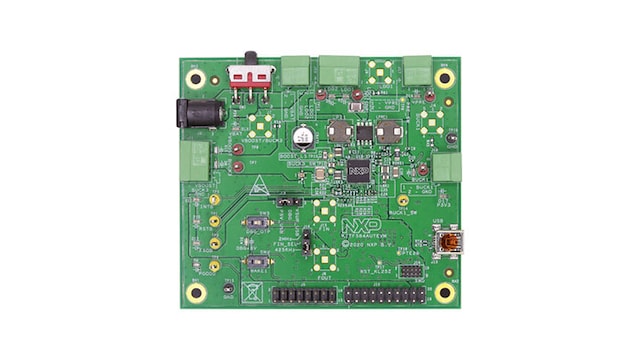

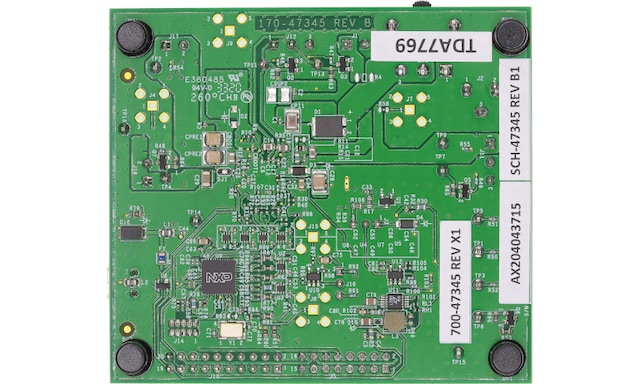

KITFS84AUTEVM provides easy customer development of FS84 QFN48EP devices. It's targeting 12 V automotive application.

This kit can be connected to the FlexGUI software, which allows the customer to modify the registers and develop a one time programming (OTP) configuration. Then, the FS84 QFN48EP chip on the board is programmed. This offers the customer the flexibility to configure the OTP for their application needs. The OTP can be burned 3 times.

Supported Devices

Power Management

System Basis Chips

  • FS84: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL B

Features

General

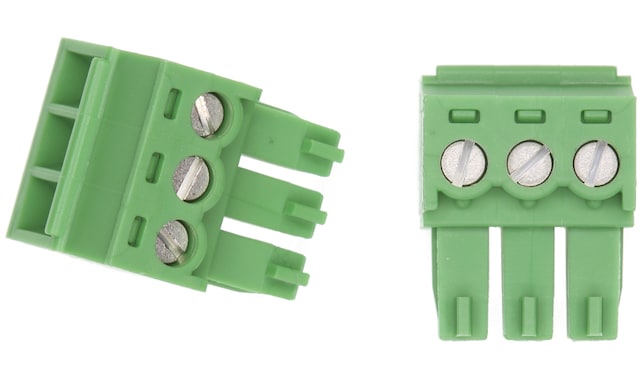

  • VBAT power supply connectors (Jack and Phoenix)
  • VPRE output 3.3 V, 4.1 V and 5 V
  • VBUCK1
  • VBUCK3
  • VBOOST 5.0 V or 5.74 V, up to 400 mA
  • LDO1 and LDO2, from 1.1 V to 5 V, up to 400 mA
  • Ignition key switch
  • FS0B external safety pin
  • Embedded USB connection for easy connection to software GUI (access to SPI bus, IOs, RSTB, FS0B, INTB, Debug, MUX_OUT, regulators)
  • LEDs indicating signal or regulator status
  • Supporting OTP fuse capabilities
  • USB connection for register access, OTP emulation and fuse

Buy Options

KITFS84AUTEVM-Image

Click to expand

  • KITFS84AUTEVM
    Active

  • FS84 QFN48EP Safety SBC Evaluation Board for Automotive.

  • Kit Contains

    • KITFS84AUTEVM Evaluation Board
    • Power Supply Mating Connectors
    • USB Mini Cable Type A Male / Type B Male
  • $250.41 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
