NXP Rapid IoT Prototyping Kit

IOT-PROTOTYPING

Roll over image to zoom in

NXP’s Rapid IoT Prototyping Kit is a comprehensive, secure, and power-optimized solution designed to accelerate prototype and development of an IoT end node. Rapid IoT integrates 11 NXP devices (microcontroller, low-power connectivity, sensors, NFC, secure element, power management, interface) in a small form-factor hardware design, and combines it with proven software enablement (drivers, RTOS, middleware, cloud connect) and a web IDE with GUI-based programming. Rapid IoT provides the easiest and fastest path for anyone to take their connected thing idea to a proof-of-concept.

Rapid IoT Prototyping Kit: SLN-RPK-NODE - Fact Sheet

Rapid IoT Prototyping Kit: SLN-RPK-NODE | Extended Version - Fact Sheet

Block Diagram

IOT-PROTOTYPING

NXP Rapid IoT Block Diagram
Get diagram PDF

Supported Devices

Wireless Connectivity

Multiprotocol MCUs

  • KW41Z: Kinetis® KW41Z-2.4 GHz Dual Mode: Bluetooth® Low Energy and 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm® Cortex®-M0+ Core

Sensors

Barometric Pressure 15 to 150 kPa

  • MPL3115A2: Absolute Digital Pressure Sensor (20 to 110 kPa)

Security and Authentication

Authentication

  • SE050: EdgeLock® SE050: Plug and Trust Secure Element Family – Enhanced IoT Security with High Flexibility

RFID

Connected NFC Tags

  • NTAG213F_216F: NTAG213F, NTAG216F: NFC Forum Type 2 Tag Compliant IC with 144/888 B User Memory and Field Detection

Processors and Microcontrollers

K6x Ethernet

  • K64_120: Kinetis® K64-120 MHz, 256 KB SRAM Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core

Power Management

Load Switches

  • NX5P3290UK: USB PD and Type-C Current-Limited Power Switch

Battery Chargers

  • MC34671: 600 mA Single-Cell Li-Ion / Li-Polymer Battery Charger

Analog and Mixed Signal

Real-Time Clocks

  • PCF2123: SPI Real-Time Clock/Calendar

Analog Switches

  • NX3L2267: Low-Ohmic Dual Single-Pole Double-Throw Analog Switch

More

Features

Conectivity

  • iOS/Android™ mobile apps and IoT cloud connect platforms
  • Compatible with NXP IoT Modular Gateway
  • Expandable to most IoT end node use cases with 400+ Click boards™
  • Rapid IoT Studio IDE
  • Multiple sensors (gyroscope, accelerometer/magnetometer barometer/temperature, air quality, ambient light and capacitive touch)

Authentication

  • Automatic source code and project generation for MCUXpresso IDE/SDK

Buy Options

SLN-RPK-NODE-Image

Click to expand

  • SLN-RPK-NODE
    Active

  • NXP Rapid IoT Prototyping Kit.

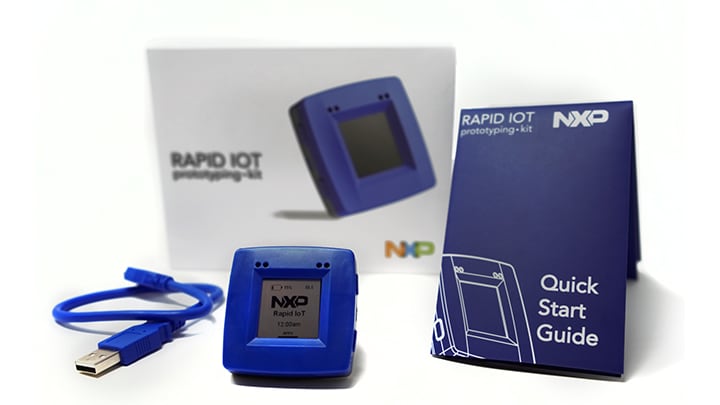

  • Kit contains:

    • Rapid IoT Prototyping Kit
    • Quick Start Guide
    • USB cable
  • For a quantity of 1
Order from distributors
