FS84/FS85/FS66 12 V Safety SBC Evaluation Board for Automotive Applications

KITFS85FRDMEVM Active

Roll over image to zoom in

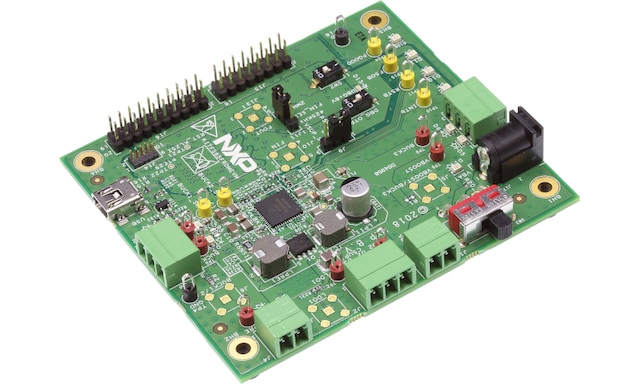

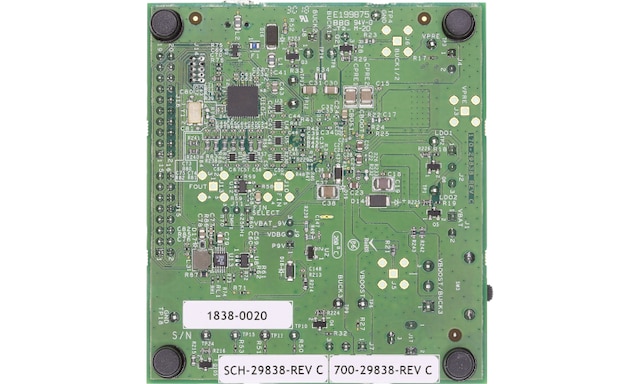

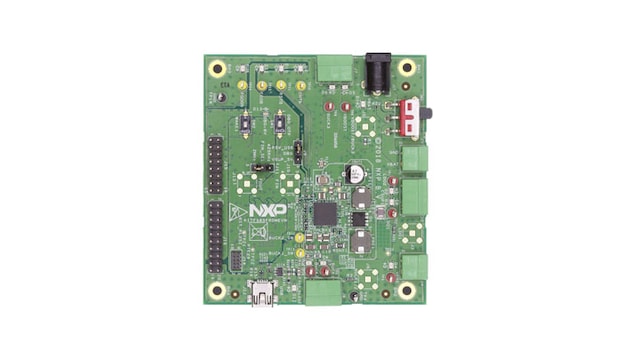

KITFS85FRDMEVM provides easy customer development of the FS84/FS85 and FS66 family devices. It's targeting 12 V automotive applications.

This kit can be connected to the FlexGUI software which allows the customer to modify the registers and develop an OTP (One Time Programing) configuration. Then the FS85 chip on the board is programmed. This offers the customer the flexibility to configure the OTP for his application needs. The OTP can be burned 3 times.

The board contains a superset device (MC33FS8530AE0S), allowing tests on all the FS84/FS85 and FS6600 derivatives.

Supported Devices

Power Management

System Basis Chips

  • FS85: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL D
  • FS84: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL B
  • FS6600: Safety System Basis Chip for S32S2 Microcontroller, Fit for ASIL D

Features

Connectivity

  • Embedded USB connection for easy connection to software GUI (access to SPI/I2C bus, IOs, RSTB, FS0B, INTB, Debug, MUX_OUT, regulators)
  • USB connection for register access, OTPemulation, and fuse

Power Management

  • VBAT power supply connectors (Jack and Phoenix)
  • VPRE output capability up to 6 A (external MOSFET)
  • VBUCK1/2 in standalone or multiphase mode, up to 3.6 A peak
  • VBUCK3 up to 3.6 A peak
  • VBOOST 5.0 V or 5.74 V, up to 400 mA
  • LDO1 and LDO2, from 1.1 V to 5 V, up to 400 mA
  • Ignition key switch

General Specifications

  • FS0B External Safety pin

Support

  • Support OTP fuse capabilities

Components

  • LEDs that indicate signal or regulator status

Buy Options

KITFS85FRDMEVM-Image

Click to expand

  • KITFS85FRDMEVM
    Active

  • FS84/FS85/FS66 12 V safety SBC evaluation board for automotive.

    • KITFS85FRDMEVM board
    • Power Supply mating connectors
    • USB mini cable Type A Male / Type B Male
  • $177.10 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 9
    • Shipping: Normally ships 1-2 business days
