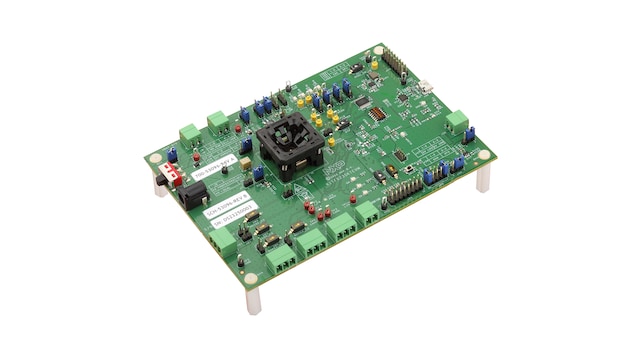

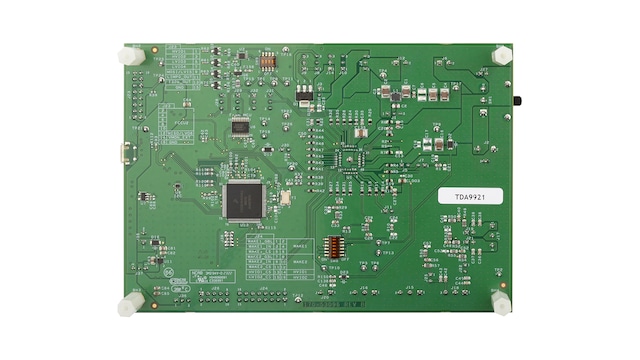

FS23 Safety SBC Programming Socket Board

KITFS23SKTEVM

Roll over image to zoom in

The KITFS23SKTEVM provides easy customer configuration of the FS23 device family, thanks to a QFN48 socket and flexibility to play with all the features of the device and make measurements on the main part of the application. All regulators, high-side drivers and CAN/LIN buses are accessible through connectors. The on-board S32K144, combined with the FS23 NXP GUI software allow to fully configure and control FS23 SBC, targeting 12 V automotive applications.

Devices can be easily placed on socket to perform one time programming (OTP) emulation, functional testing or program OTP fuses when ready. No extra tool is needed to perform FS23 OTP.

Supported Devices

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K3: S32K3 Microcontrollers for Automotive General Purpose
  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Power Management

System Basis Chips

  • FS23: Safety System Basis Chip (SBC) Family with Power Management, CAN and LIN

Features

Microcontroller (MCU)

  • 32-bit Arm® Cortex®-M4F based S32K144 on-board for an easy connection to the GUI for register access, OTP emulation and fuse

USB

  • USB interface with USB micro-B connector

Software Support

  • Pre-flashed firmware on the MCU
  • Matching GUI for application development (access to SPI or I²C bus, I/Os, CAN, LIN, safety outputs, Debug, AMUX, regulators)

Power Supply

  • External 12 V supply through Jack or Phoenix connector

Power Management

  • BUCK, 3.3 V or 5.0 V, up to 400 mA or HVLDO1, 3.3 V or 5.0 V, up to 250 mA
  • HVLDO2, 3.3 V or 5.0 V, up to 100 mA
  • HVLDO3, 3.3 V or 5.0 V, up to 150 mA

External Safety Pins

  • FS0B, LIMP0

Support

  • Debug mode access
  • Manual or automated OTP fuse programming
  • Connectors allowing easy access to digital signals

Status

  • LEDs indicate signal and regulator status
  • Analog variable resistor to test external VMON
  • QFN48 non-soldered socket to allow functional testing and programming of multiple devices

Buy Options

KITFS23SKTEVM-Image

Click to expand

  • KITFS23SKTEVM

  • FS23 Safety SBC Programming Socket Board.

  • Kit contains:

    • Assembled and tested evaluation board with preprogrammed S32K144 microcontroller in an antistatic bag
    • 2-position and 3-position mating Phoenix connectors
    • USB-STD A to USB-micro B cable
  • $218.61 USD
  • For a quantity of 1
    • Availability: Pending Stock
