Freedom Development Platform for Kinetis® KL28MCUs

FRDM-KL28Z Active

Roll over image to zoom in

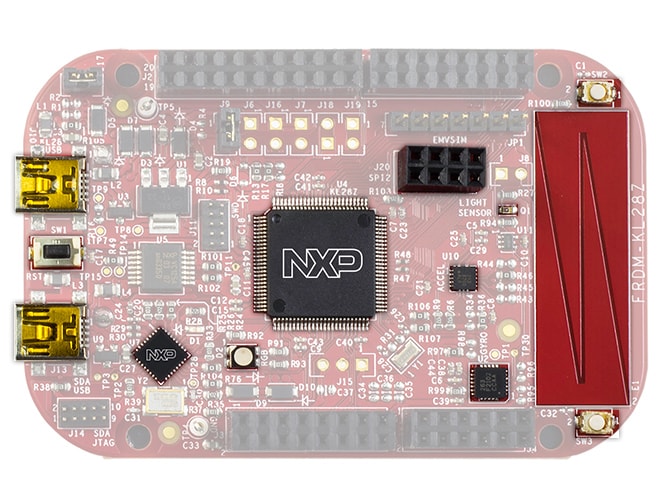

The FRDM-KL28Z supports power supply voltage range from 1.71V to 3.6V.It features a KL28Z, a device boasting up to 512KB Flash and 128KB SRAM, and numerous analog and digital peripherals. The onboard interfaces include an RGB LED, a 6-axis digital sensor, a 3-axis digital angular rate gyroscope, an ambient light sensor, and a capacitive touch slider.

Product Details

Supported Devices

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL28: Kinetis® KL28-72/96 MHz, 512KB Flash, USB, Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Interfaces

USB Interfaces

Features

Microcontroller

    MKL28Z512VLL7 MCU

  • 96 MHz
  • 512 KB Flash
  • 128 KB RAM
  • 32 KB ROM
  • 100 LQFP package

Connectivity

  • I/O headers for easy access to MCU I/O pins

Power Management

  • Flexible power supply options: USB, coin cell battery, external source

Debug

  • OpenSDA: Onboard serial and debug adapter(U7)

Sensors

  • 3-Axis Digital Angular Rate Gyroscope, FXAS21002CQ (U2)
  • Accelerometer and magnetometer, FXOS8700CQ (U10)
  • Ambient light sensor (Q1)
  • Capacitive touch slider
  • Reset pushbutton (SW1)
  • NMI and LLWU buttons (SW2, SW3)
  • RGB LED (D2)

Buy Options

FRDM-KL28Z-Image

Click to expand

  • FRDM-KL28Z
    Active

  • FRDM Development Platform, Kinetis L MCU, KL28.

    • FRDM-KL28Z development board
    • Quick start guide
    • Supporting cable
  • $32.99 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
N true 0 TSPFRDM-KL28Zen 2 User Guide User Guide t792 2 en_US en_US 2 1 0 English The FRDM-KL28Z hardware is form-factor compatible with the Arduino<sup>®</sup> Rev3 pin layout, providing a broad range of expansion board options. The on-board interfaces include an RGB LED, a 6-axis digital sensor (combining a 3D accelerometer and 3D magnetometer), a 3-axis digital angular rate gyroscope, an ambient light sensor, and a capacitive touch slider. 1466161099811705235699 TSP 1.4 MB Registration without Disclaimer None documents Y Extended 1466161099811705235699 /secured/assets/documents/en/user-guide/FRDMKL28ZUG.pdf 1405245 /secured/assets/documents/en/user-guide/FRDMKL28ZUG.pdf FRDMKL28ZUG Y N 2016-10-31 FRDM-KL28Z User’s Guide /webapp/Download?colCode=FRDMKL28ZUG /secured/assets/documents/en/user-guide/FRDMKL28ZUG.pdf User Guide N 132339537837198660 2023-06-18 pdf Y en Jun 16, 2016 User Guide t792 User Guide User Guide Y N FRDM-KL28Z User’s Guide 2 English This page will help guide you through the process of learning about your FRDM-KL28Z board. 1553615607154705254854 Y 1553615607154705254854 NGS-FRDM-KL28Z NGS-FRDM-KL28Z /document/guide/getting-started-with-the-frdm-kl28z:NGS-FRDM-KL28Z HTML 0 2019-03-26 NGS-FRDM-KL28Z TSP User Guide 132339537837198660 2025-03-06 en Dec 28, 2022 User Guide t792 User Guide User Guide Y Getting Started with the FRDM-KL28Z false en false 0 FRDM-KL28Z downloads en true 0 Y TSP User Guide 2 /secured/assets/documents/en/user-guide/FRDMKL28ZUG.pdf 2016-10-31 1466161099811705235699 TSP 1 Jun 16, 2016 User Guide User Guide The FRDM-KL28Z hardware is form-factor compatible with the Arduino<sup>®</sup> Rev3 pin layout, providing a broad range of expansion board options. The on-board interfaces include an RGB LED, a 6-axis digital sensor (combining a 3D accelerometer and 3D magnetometer), a 3-axis digital angular rate gyroscope, an ambient light sensor, and a capacitive touch slider. Y Registration without Disclaimer /secured/assets/documents/en/user-guide/FRDMKL28ZUG.pdf English 1405245 None User Guide 2023-06-18 Y /webapp/Download?colCode=FRDMKL28ZUG FRDM-KL28Z User’s Guide /secured/assets/documents/en/user-guide/FRDMKL28ZUG.pdf documents 132339537837198660 User Guide N en Extended Y t792 pdf 0 Y N FRDM-KL28Z User’s Guide 1.4 MB FRDMKL28ZUG N 1466161099811705235699 2019-03-26 1553615607154705254854 2 Dec 28, 2022 User Guide User Guide This page will help guide you through the process of learning about your FRDM-KL28Z board. Y NGS-FRDM-KL28Z English 0 User Guide 2025-03-06 /document/guide/getting-started-with-the-frdm-kl28z:NGS-FRDM-KL28Z Getting Started with the FRDM-KL28Z NGS-FRDM-KL28Z TSP 132339537837198660 User Guide en Y t792 HTML NGS-FRDM-KL28Z 1553615607154705254854 true Y Tools
