HVBMS Centralized Cell Monitoring Unit Using CAN (FD) with MC33774 (CMU)

RD33774CNC3EVB Active

Roll over image to zoom in

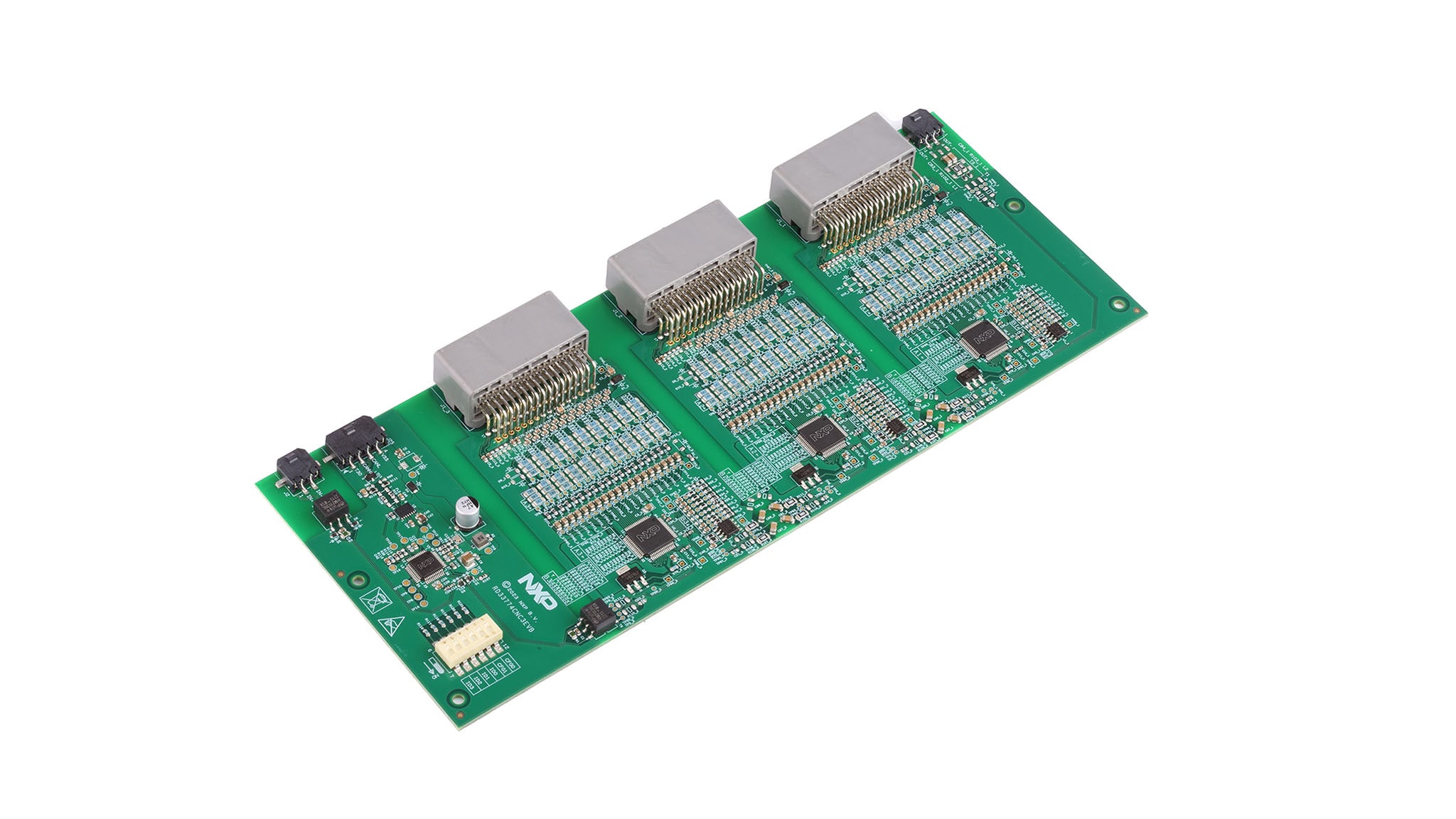

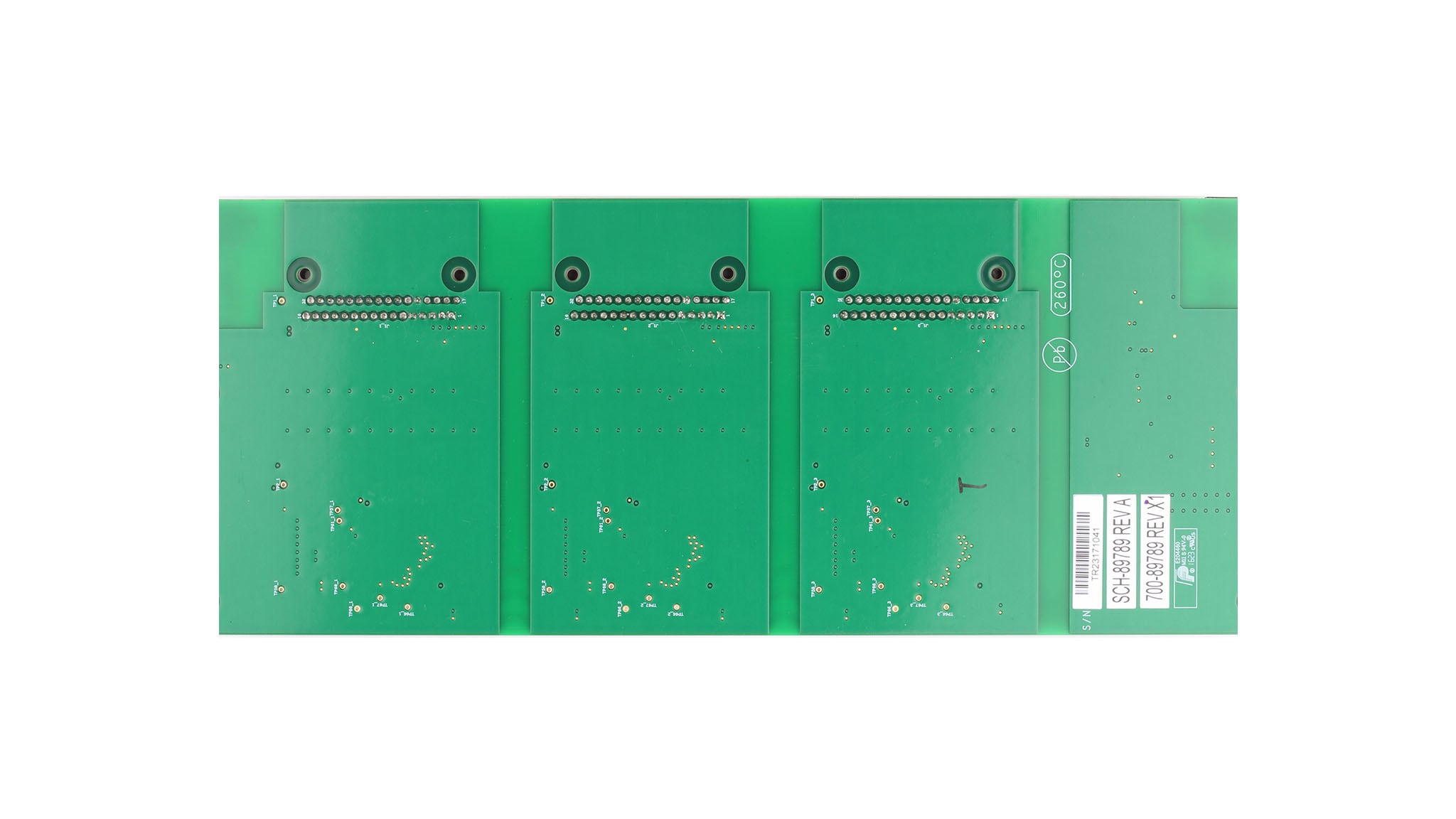

The RD33774CNC3EVB is a centralized cell monitoring unit (CMU) reference design CAN (FD) communication. It is ideal for rapid prototyping of a high-voltage battery management system (HVBMS). This board contains three MC33774 analog front ends (AFEs) in a daisy chain.

Supported Devices

Power Management

Battery Cell Controllers

  • MC33774: 18 Channel Li-Ion Battery Cell Controller IC ASIL D

Features

Voltage Measurement

  • 3 MC33774 battery cell controllers (BCCs) for up to 54 cells, extendable by adding more CMUs to the daisy chain
  • Life-time guaranteed high accuracy cell voltage measurement channels, with averaging and advanced filtering

Temperature Measurement

  • 8 analog inputs (including temperature sensors) or GPIOs with advanced filtering per BCC

Cell Balancing

  • Integrated temperature-controlled cell balancing with up to 300 mA (100 mA using default setup)

Communication

  • CAN FD communication
  • High speed CAN FD transceiver up to 5 Mbit/s

Cost Reduction

  • Optimized BOM using capacitive isolation on and off board

Buy Options

RD33774CNC3EVB-Image

Click to expand

  • RD33774CNC3EVB
    Active

  • HVBMS Hardware Reference Design Using CAN FD.

  • Kit contains:

    • 1 RD33774CNC3EVB board
    • 3 supply cables
    • 1 CAN and power cable
    • 1 ETPL cable
  • $454.32 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
