Evaluation Kit - 33988, Dual 8 mOhm High Side Switch

KIT33988CEVBE
Active

Roll over image to zoom in

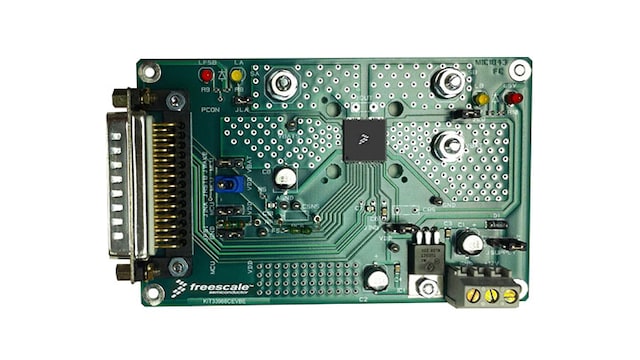

The KIT33988CEVBE evaluation kit supports the 33988, which is a dual self-protected 8.0 mΩ silicon switch used to replace electromechanical relays, fuses, and discrete devices in power management applications. The 33988 is designed for harsh environments, and it includes self-recovery features. The device is suitable for loads with high inrush current, as well as motors and all types of resistive and inductive loads.

Product Details

Supported Devices

Power Management

High Side Switches

  • MC12XS2: 12 V Multipurpose Low RDSON eXtreme Switch

Features

Power Management

  • 6.0 V to 27 V operating voltage with standby currents < 5.0 µA
  • Enhanced -16 V reverse polarity VPWR protection

User Components

  • Dual 8.0 mOhm max high side switch with parallel input or SPI control

General Specifications

  • SPI control of over-current limit, over-current fault blanking time, output OFF open load detection, output ON/OFF control, watchdog timeout, slew-rates, and fault status reporting
  • SPI status reporting of over-current, open and shorted loads, over-temperature, under-voltage and over-voltage shutdown, fail-safe pin status, and program status
  • Output current monitoring with two SPI-selectable current ratios

Buy Options

KIT33988CEVBE-Image

Click to expand

  • KIT33988CEVBE
    Active

  • Evaluation Kit - MC33988, Dual 8 mOhm Intelligent High-current Self-protected Silicon High Side Switch.

    • KIT33988CEVBE Hardware
    • Quick Reference Guide
  • For a quantity of 1
Order from distributors
