Evaluation Kit - 33982, Single 2 mOhm High Side Switch

KIT33982CEVBE
Active

Roll over image to zoom in

The Evaluation Kit supports the 33982, which is a self-protected silicon 2.0 mΩ high side switch used to replace electromechanical relays, fuses, and discrete devices in power management applications. The 33982 is designed for harsh environments, and it includes self-recovery features. The device is suitable for loads with high inrush current, as well as motors and all types of resistive and inductive loads.

Product Details

Supported Devices

Power Management

High Side Switches

  • MC12XS2: 12 V Multipurpose Low RDSON eXtreme Switch

Features

Power Management

  • 6.0 V to 27 V operating voltage with standby currents < 5.0 µA
  • Enhanced -16 V reverse polarity VPWR protection

General Specifications

  • Single 2.0 mO max high side switch with parallel input or SPI control
  • Output current monitoring with two SPI-selectable current ratios
  • SPI control of over-current limit, over-current fault blanking time, output-OFF open load detection, output ON/OFF control, watchdog timeout, slew rates, and fault status reporting
  • SPI status reporting of over-current, open and shorted loads, over-temperature shutdown, under-voltage and over-voltage shutdown, fail-safe pin status, and program status

Buy Options

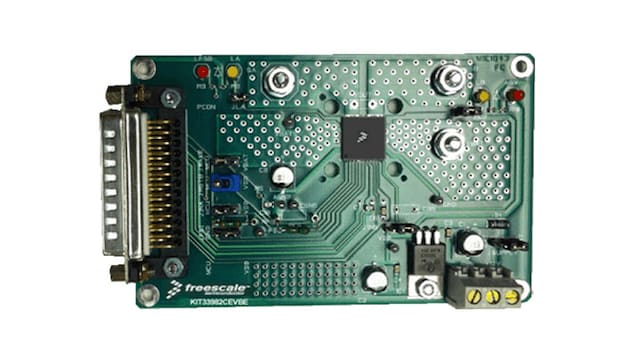

KIT33982CEVBE-Image

Click to expand

  • KIT33982CEVBE
    Active

  • Evaluation Kit - MC33982, Single 2 mOhm Intelligent High-current Self-protected High Side Switch.

    • KIT33982CEVBE Hardware
    • Quick Reference Guide
  • $111.42 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
N true 0 TSPKIT33982CEVBEen 3 Data Sheet Data Sheet t520 1 Fact Sheet Fact Sheet t523 1 User Guide User Guide t792 1 en_US 2 1 2.0 English The hardware in the evaluation kit includes an 33982 evaluation board and a standard USB A-to-B cable. 1289943427285697220607 TSP 1.1 MB None None documents Y None 1289943427285697220607 /docs/en/user-guide/KT33982UG.pdf 1111620 /docs/en/user-guide/KT33982UG.pdf KT33982UG N 2010-12-14 KIT33982CEVBE, Evaluation Board - User Guide /docs/en/user-guide/KT33982UG.pdf /docs/en/user-guide/KT33982UG.pdf User Guide N Y 132339537837198660 2023-06-19 pdf en Jul 27, 2016 User Guide t792 User Guide User Guide Y N KIT33982CEVBE, Evaluation Board - User Guide 2 MC33982CHFK 20.0 English The 33982 is a self-protected 2.0 mOhm high-side switch replacing electromechanical relays, fuses, and discrete devices in power management applications. T1036786592705 TSP 2.4 MB None None documents None T1036786592705 /docs/en/data-sheet/MC33982.pdf 2371203 /docs/en/data-sheet/MC33982.pdf MC33982 N N 2023-07-12 MC33982: Single Intelligent High-current Self-protected Silicon High-side Switch (2.0 mOhm) Data Sheet /docs/en/data-sheet/MC33982.pdf /docs/en/data-sheet/MC33982.pdf Data Sheet N Y 980000996212993340 2023-12-14 pdf N en Dec 14, 2023 Data Sheet t520 Data Sheet Data Sheet Y N MC33982: Single Intelligent High-current Self-protected Silicon High-side Switch (2.0 mOhm) Data Sheet false en_US 0 false en Fact Sheet Fact Sheet 1 3 2 English The eXtreme switch portfolio contains a wide breadth of switches for automotive and industrial applications, offering low-on resistance, control and diagnostics for 12, 24 and 36 V applications. 1487371579070725010252 TSP 118.8 KB None None documents None 1487371579070725010252 /docs/en/fact-sheet/ESWITCHFS.pdf 118772 /docs/en/fact-sheet/ESWITCHFS.pdf ESWITCHFS documents N N 2017-02-17 Smart High-Side Switches Fact Sheet /docs/en/fact-sheet/ESWITCHFS.pdf /docs/en/fact-sheet/ESWITCHFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en Jul 29, 2022 736675474163315314 Fact Sheet Y N Smart High-Side Switches Fact Sheet false 0 KIT33982CEVBE downloads en true 0 Y TSP Data Sheet 1 /docs/en/data-sheet/MC33982.pdf 2023-07-12 T1036786592705 TSP 2 Dec 14, 2023 Data Sheet Data Sheet The 33982 is a self-protected 2.0 mOhm high-side switch replacing electromechanical relays, fuses, and discrete devices in power management applications. None /docs/en/data-sheet/MC33982.pdf English 2371203 None Data Sheet 2023-12-14 N /docs/en/data-sheet/MC33982.pdf MC33982: Single Intelligent High-current Self-protected Silicon High-side Switch (2.0 mOhm) Data Sheet /docs/en/data-sheet/MC33982.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 20.0 N N MC33982: Single Intelligent High-current Self-protected Silicon High-side Switch (2.0 mOhm) Data Sheet 2.4 MB MC33982CHFK MC33982 N T1036786592705 Fact Sheet 1 /docs/en/fact-sheet/ESWITCHFS.pdf 2017-02-17 1487371579070725010252 TSP 3 Jul 29, 2022 Fact Sheet The eXtreme switch portfolio contains a wide breadth of switches for automotive and industrial applications, offering low-on resistance, control and diagnostics for 12, 24 and 36 V applications. None /docs/en/fact-sheet/ESWITCHFS.pdf English documents 118772 None 736675474163315314 2022-12-07 N /docs/en/fact-sheet/ESWITCHFS.pdf Smart High-Side Switches Fact Sheet /docs/en/fact-sheet/ESWITCHFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 2 N N Smart High-Side Switches Fact Sheet 118.8 KB ESWITCHFS N 1487371579070725010252 User Guide 1 /docs/en/user-guide/KT33982UG.pdf 2010-12-14 1289943427285697220607 TSP 1 Jul 27, 2016 User Guide User Guide The hardware in the evaluation kit includes an 33982 evaluation board and a standard USB A-to-B cable. Y None /docs/en/user-guide/KT33982UG.pdf English 1111620 None User Guide 2023-06-19 /docs/en/user-guide/KT33982UG.pdf KIT33982CEVBE, Evaluation Board - User Guide /docs/en/user-guide/KT33982UG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 2.0 N KIT33982CEVBE, Evaluation Board - User Guide 1.1 MB KT33982UG N 1289943427285697220607 true Y Tools
