Evaluation Board for MC33665A with SPI and TPL Communication

FRDM665SPIEVB

Roll over image to zoom in

The FRDM665SPIEVB serves as a hardware evaluation tool in support of the MC33665A device (SPI variant) from NXP. The MC33665A is a gateway router that can route TPL messages from the microcontroller (MCU) to four different TPL ports. It is designed for use in both automotive and industrial applications. The device can route both TPL2 and TPL3 messages. The FRDM665SPIEVB is an ideal board for rapid prototyping of the MC33665A for SPI interface to a MCU. Onboard TPL interface for four TPL ports has transformer isolation.

Supported Devices

Power Management

Battery Communication ICs

  • MC33665A: General Purpose BMS Communication TPL Transceiver and CAN FD Gateway

Features

Connectivity

  • SPI communication (10 Mbit/s of data)
  • TPL Communication (2 Mbit/s)
  • 20 pin connector for GPIO and I²C interface
  • Connectors to interface with S32K344 EVB

LED Indicator

  • VBAT
  • VDD5V
  • VREG
  • VIO

Control

  • DIP switch to configure CFG and ID pins
  • Jumpers to configure VDDIO
  • Reset switch to control MC33665A

MC33665A

  • SPI to 4 x TPL communication
  • 8 GPIO pins (2 pins configurable for I²C)

Buy Options

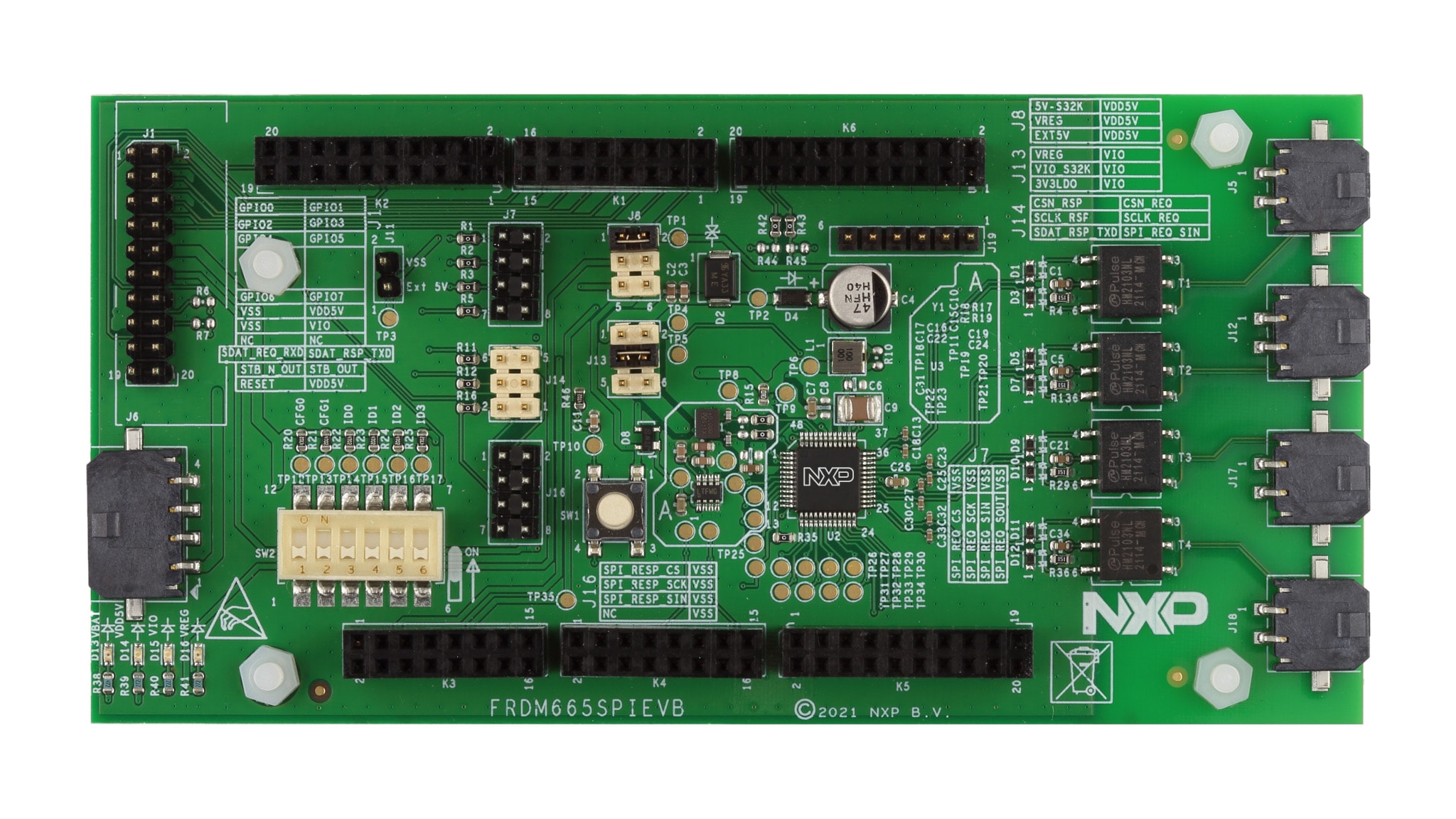

FRDM665SPIEVB-Image

Click to expand

  • FRDM665SPIEVB
    Active

  • Evaluation Board for MC33665A with SPI and TPL Communication.

  • Evaluation board for MC33665A with SPI

    Kit contains

    • FRDM665SPIEVB
    • TPL Cable 50 cm
    • Power Cable
  • $301.30 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE20-Image

Click to expand

  • BATT-TPLCABLE20
    Active

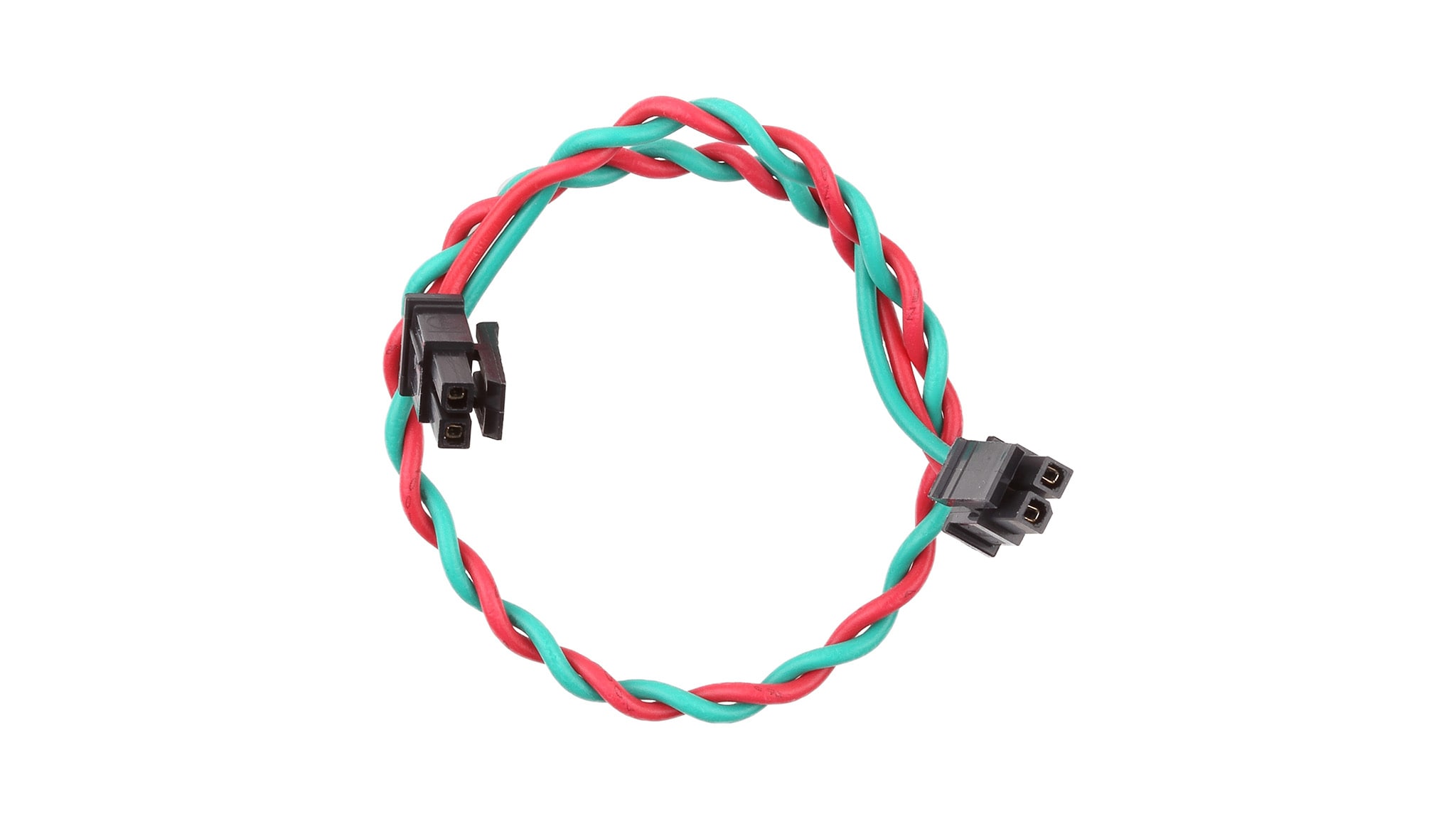

  • Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.
