NXP EasyEVSE Development Platform (i.MX 93, Linux OS, Wi-Fi 6)

EV-CHRG-STN-MPU Preproduction
EasyEVSE EV Charging Station Development Platform

Click over video to play

The EasyEVSE development platform provides software, boards, cables, design files and detailed instructions to quickly simulate a charging control session between a charging station and an electric vehicle. This modular scalable platform is the foundation for developing secure wireless cloud connectivity, accurate energy billing, safe control, one-tap NFC authentication and ISO 15118 power line communications across a HomePlug Green PHY.

The ISO 15118-2 platform variant supports traditional EV charging with a Plug and Charge feature to simplify the user experience. The ISO 15118-20 platform variant adds support for bi-directional power transfer between the electric vehicle supply equipment (EVSE) and the vehicle.

Product Details

Features

Hardware

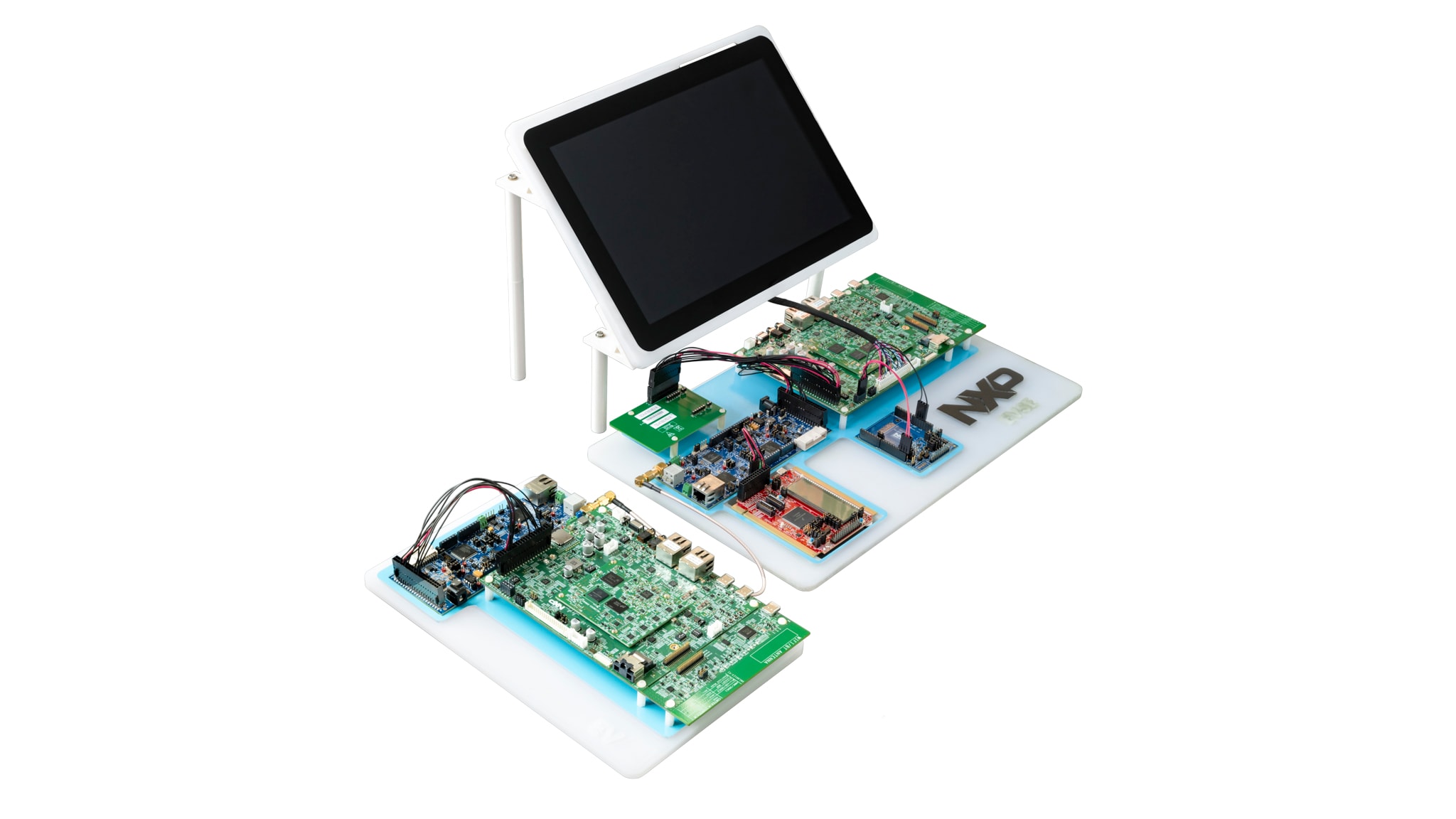

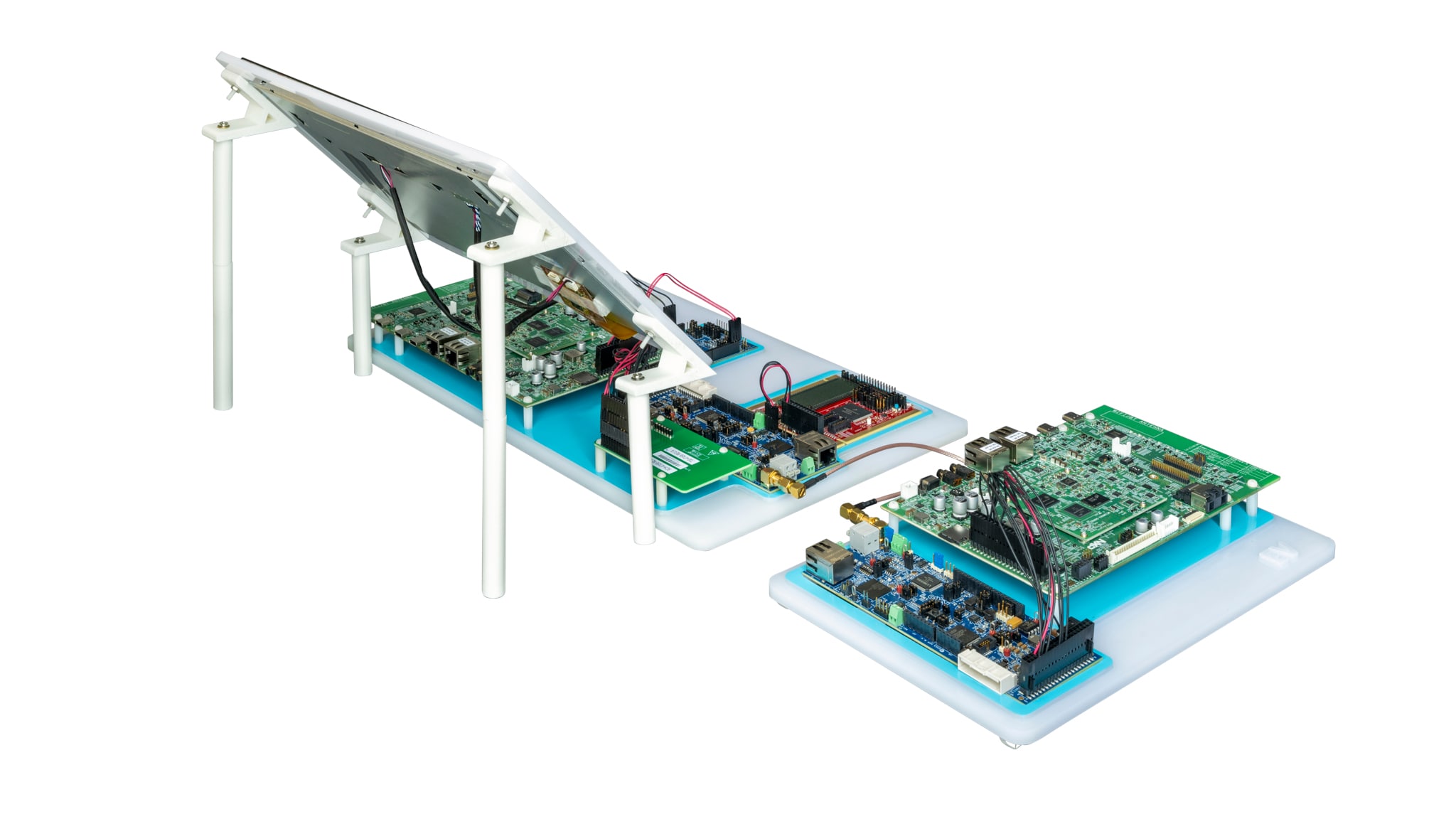

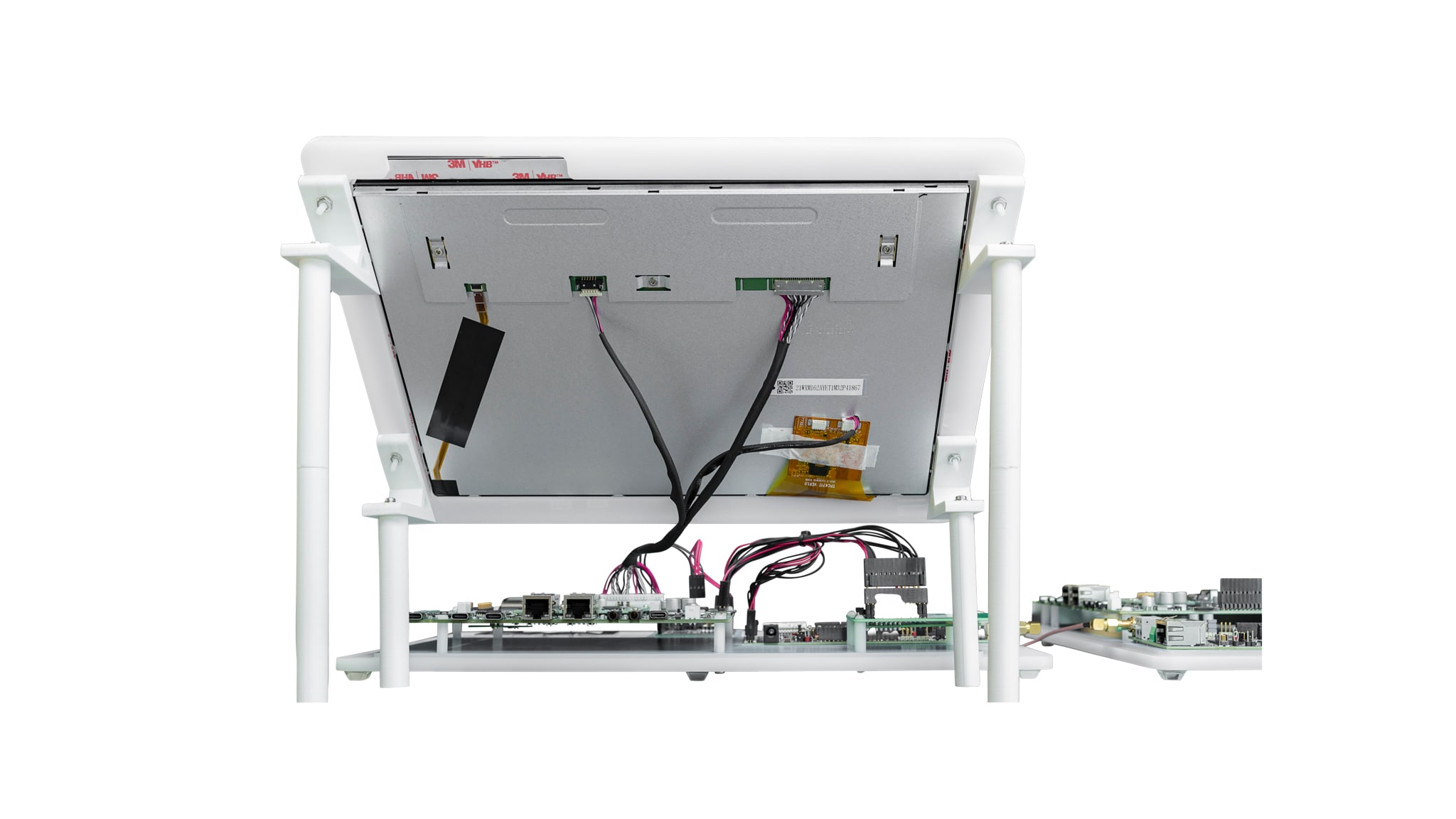

  • The solution ships as a ready-to-use, wired and pre-tested kit containing the following hardware:
    • 2 x MCIMX93-EVK boards which include the LBES5PL2EL Murata module with NXP IW612 chipset (Wi-Fi 6, BLE 5.2)
    • 2 x EVSE-SIG-BRD signal board with a microcontroller and transceivers to support a variety of EV charging control protocols, such as an NXP LPC55S36 MCU with PWM for the SAE J1772 control pilot, an NXP TJA1021BT LIN transceiver for SAE J3068, and a Lumissil CG5317 HomePlug Green PHY for ISO 15118
    • OM-SE050ARD-E EdgeLock SE050 development board
    • TWR-KM35Z75M metering board
    • OM27160B1EVK NFC development kit
    • DY1212W-4856 12.1" TFT LCD display with LVDS connector (touch panel)
    • 10 x cables
    • 3 x power supplies
    • 2 x plexiglass mounts

Software

  • The solution contains specific application software and miscellaneous tools that help to evaluate, run and further develop a full-featured EVSE
  • Complimentary example software is downloadable at the link below and consists:
    • Sample source code on the MPU:
      • EasyEVSE Yocto manifest
      • EasyEVSE Yocto meta layer containing recipes for building the image
      • EasyEVSE Linux userspace applications
    • Sampe source code on the KM MCU:
      • Meter project for TWRKM3x7x board
    • Azure IoT Central templates
      • EasyEVSE application template shareable link (EVSEAppShareLink)
      • EasyEVSE IoT central JSON file

Documentation

  • User guide describes how to get the EasyEVSE up and running using a simplified setup
  • User manual provides detailed instructions to use the development platform
  • Step-by-step instructions are shown when you click the Get Started button above

Availability

  • The entire kit is ordered from one single part number, shown in the Buy Options section below

More

Buy Options

EVSE-IMX93-Image

Click to expand

  • EVSE-IMX93

  • NXP EasyEVSE Development Platform (i.MX 93, Linux OS, Wi-Fi 6).

  • Kit contains

    • 2 x MCIMX93-EVK with Murata Wi-Fi module (IW612 Wi-Fi 6 transceiver)
    • EVSE-SIG-BRD2X signal board
    • DY1212W-4856 display (LVDS, touch)
    • OM-SE050ARD-E EdgeLock SE050 secure element board
    • TWR-KM35Z75M metering board
    • OM27160B1EVK NFC kit
    • 10 cables, 3 power supplies, 2 plexiglass carriers
    • 10 cables, 3 power supplies, 2 plexiglass carriers
  • $3900.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
EVSE-IMX93-CBL-Image

Click to expand

  • EVSE-IMX93-CBL

  • Cable kit to connect the EasyEVSE Development Platform (Linux OS, Wi-Fi 6).

  • Kit contains cable harness for EVSE and EV side

      Kit Contains:

      Electrical Vehicle Supply Equipment (EVSE) side:

      • 1 x cable harness from the MCIMX93-EVK to the OM-SE050ARD-E
      • 1 x cable harness from the MCIMX93-EVK to the EVSE-SIG-BRD2X and to the OM27160B1EVK
      • 1 x cable harness from the EVSE-SIG-BRD1X/2X to the TWR-KM35Z75M

      Electrical Vehicle (EV) side:

      • 1 x cable harness from the MCIMX93-EVK to the EVSE-SIG-BRD2X
  • $700.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 3
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
