LPCXpresso824-MAX Board for LPC82x family MCUs

OM13071
Active

Roll over image to zoom in

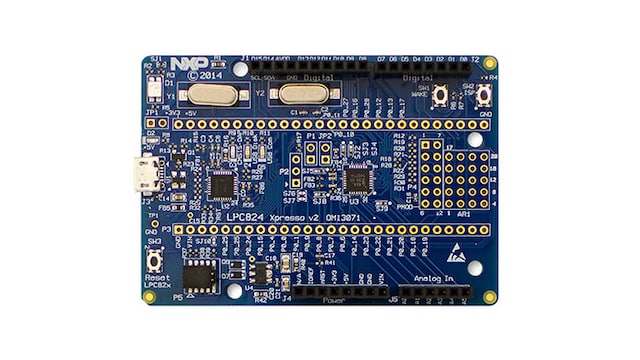

The LPCXpresso824-MAX board with NXP®.s LPC824 Cortex®-M0+ microcontroller is designed to make it as easy as possible to get started with your project.

LPCXpresso™ is a low-cost development platform available from NXP, supporting NXP's Arm®-based microcontrollers. The platform is comprised of a simplified Eclipse-based IDE and low-cost target boards which include an attached JTAG debugger. LPCXpresso is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production.

The order code for this board is OM13071.

Product Details

Features

Connectivity

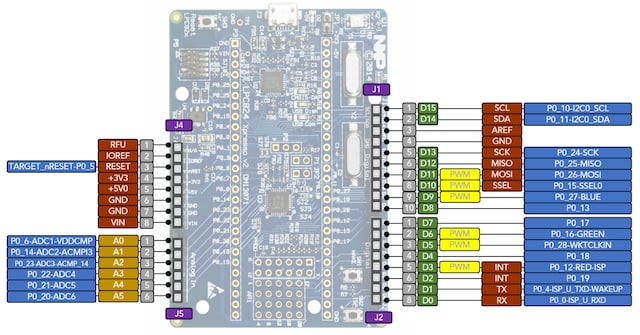

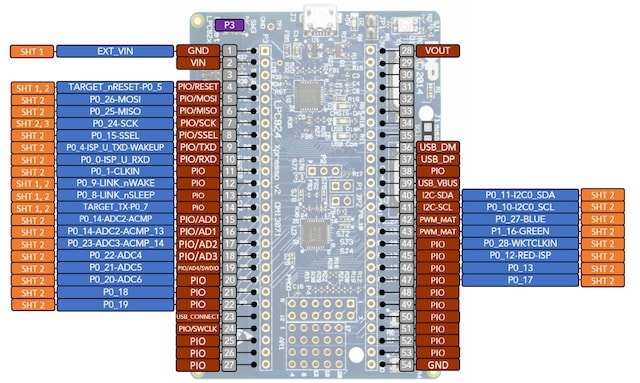

  • LPCXpresso / Mbed, PMOD, and Arduino® UNO expansion connectors give simple access to a wide range of available expansion boards

Debug

  • Integrated SWD debugger probe for target MCU

User Components

  • Tri-color LED
  • ISP and WAKE buttons for easy testing of software functionality
  • Compatible with development tools and probes from NXP ecosystem partners
  • Fully supported by LPCXpresso Eclipse-based IDE and GNU C/C++ toolchain, available in free and Pro versions

Buy Options

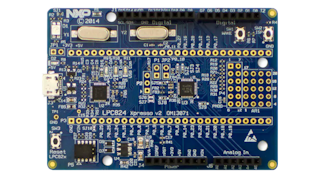

OM13071-Image

Click to expand

OM13071
Active

LPCXpresso824-MAX Board for LPC82x family MCUs.

$21.85 USD
In Stock :24

Normally ships 1-2 business days
