LPCXpresso™ Board for LPC1549

OM13056 Active

Roll over image to zoom in

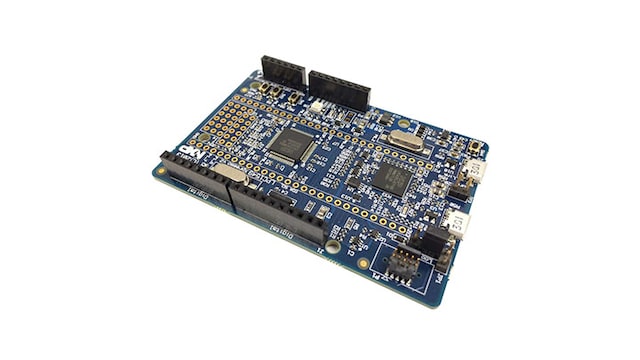

The LPC1549 LPCXpresso™ board with NXP®'s LPC1549 Cortex-M3 microcontroller is designed to make it as easy as possible to get started with your project.

LPCXpresso™ is a low-cost development platform available from NXP supporting NXP's Arm-based microcontrollers. The platform is comprised of a simplified Eclipse-based IDE and low-cost target boards which include an attached JTAG debugger. LPCXpresso is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production.

The order code for this board is OM13056UL.

LPC1500 marketing category page

Product Details

Supported Devices

Processors and Microcontrollers

LPC1500 Arm Cortex-M3

  • LPC1517JBD48: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1517JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1518JBD100: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1518JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1519JBD100: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1519JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1547JBD48: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1547JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1548JBD100: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1548JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1549JBD100: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1549JBD48: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1549JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3

Features

Support

  • Fully supported by LPCXpresso Eclipse-based IDE and GNU C/C++ toolchain, available in free and Pro versions

Debug

  • Integrated JTAG Debugger that can also be used to debug an external target

Expansion Port

  • LPCXpresso / mbed, PMOD, and Arduino® UNO expansion connectors give simple access to a wide range of available expansion boards

Components

  • Tri-color LED, ISP and WAKE buttons for easy testing of software functionality

Buy Options

OM13056-Image

Click to expand

  • OM13056
    Active

  • LPCXpresso board for LPC1549 (Link2).

    • LPC1549 LPCXpresso™ Development Board
  • For a quantity of 1
Order from distributors
