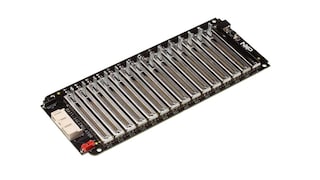

The BATT-14CEMULATOR board can emulate a multi-cell battery pack that can be easily hooked-up to the evaluation boards for MC33771C battery cell controllers (BCC):

RD33771CDSTEVB
FRDM33771CSPEVB

The user can connect the BATT-14CEMULATOR board for a quick evaluation of NXP BCC ICs, or to help the users in their software development. These boards basically provide a very intuitive way to change the voltage across any of the 14 cells of an emulated battery pack as well as the voltage across some analog inputs of the BCC IC that are typically used as temperature sensors.

Design Files

Software

Product Details

Supported Devices

Power Management

Battery Cell Controllers

MC33771C: 14-Channel Li-Ion Battery Cell Controller IC

Features

Power Input

12 V

Cell Voltage Output

Adjustable individual cell voltage (1.25 V to 4.9 V)

Temperature Sensor Emulator

Adjustable (0 V to 4.9 V)

User Components

LED power indicator

Buy Options

Click to expand

BATT-14CEMULATOR
14-Cell Battery Pack Emulator to Supply MC33771C BCC EVBs.
BATT-14CEMULATOR, 14-Cell Slider Battery Pack Emulator

$393.30USD
For a quantity of 1
- Availability: In stock
- Inventory: 4
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors
