IEEE® 802.15.4 Packet Sniffer USB Dongle Form Factor

USB-KW24D512 Active

Roll over image to zoom in

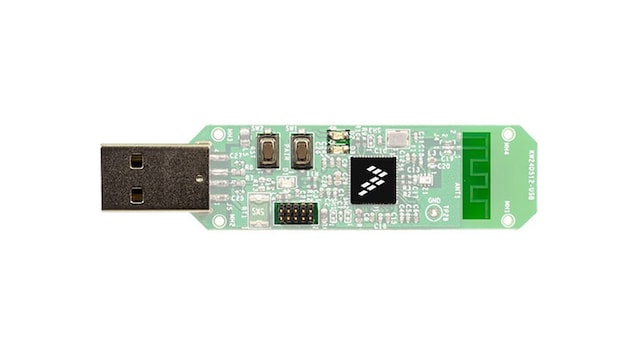

The USB-KW24D512 board is an IEEE® 802.15.4 packet sniffer in a convenient USB dongle form factor.

  • Packet sniffers are essential for wireless network development allowing over-the-air traffic monitoring
  • As a standalone board, the USB-KW24D512 can also be used in a lab as a development platform and programmed as a network node (for example)

Note: this page is made available for historical reference only.

Supported Devices

Wireless Connectivity

Thread

  • KW2xD: Kinetis® KW2xD-2.4 GHz 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm® Cortex®-M4 Core

Features

CPU

  • 50 MHz Arm®-Cortex®-M4 CPU core
  • MCU operating range: 1.7 V to 3.6 V, -40 ºC to +105 ºC

Memory

  • 512 KB flash
  • 64 KB SRAM

Power Management

  • Typical current consumption: 250 µA/MHz run, 1.7 µA RTC standby
  • Peak typical current consumption: 17 mA TX (at 0 dBM) and 19 mA max RX
  • Supply voltage: 5 VDC
  • -102 dBM RX sensitivity and +8 dBM TX output power

Connectivity

  • Dual Personal Area Network (PAN) support in hardware
    • Run two RF networks simultaneously
  • USB 2.0 FS/LS H/D/OTG
  • IEEE 802.15.4 compliant
  • 16-bit ADC
  • Crypto engine: DES, 3DES, AES 128-256, SHA-1, SHA-256, MD5, RNG
  • Active and passive tamper detection with RTC timestamp

Buy Options

USB-KW24D512-Image

Click to expand

  • USB-KW24D512
    Active

  • USB Dongle, Kinetis W MCU, KW24, 50 MHz, 512 KB Flash.

    • USB-KW24D512 packet sniffer/dongle
    • Quick start guide
  • $103.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 47
    • Shipping: Normally ships 1-2 business days
ADD TO CART
