Touch-Sensing Software Evaluation Board

TSSEVB Active

Roll over image to zoom in

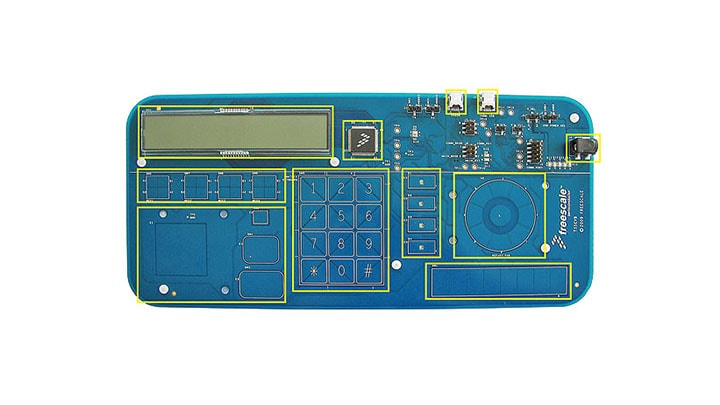

The Touch-Sensing Software evaluation board (TSSEVB) contains everything you need to get started with a touch-sensing application. The touch-sensing software library enables capacitive sensing for the entire NXP® S08 MCU portfolio, providing touch sense decoding structures such as keypad, rotary and slider.

Product Details

Features

Microcontroller

  • S08LG32 MCU

Connectivity

  • Serial to USB converter
  • BDM on board

Power Management

  • Powered over USB or external power supply

User Components

  • Backlight LED on electrodes
  • LCD glass and buzzer
  • Rotary, Slider, Keypad, Multiplexed electrodes and Matrix

Tools and OS Support

    Demo applications included
  • GUI communication
  • Different thickness overlays

Buy Options

TSSEVB-Image

Click to expand

  • TSSEVB
    Active

  • Touch Sensing Software EVB.

    • TSSEVB board
    • USB cable
    • Two different material overlays
    • Getting Started DVD
      • TSS installer
      • Demo application files
      • Technical documentation
      • Electrode graphic tool
    • TSSEVB Quick Start Guide
    • Warranty page
  • $114.99 USD
  • For a quantity of 1
