10 mm x 8 mm Module 38-Lead PCB DXF file

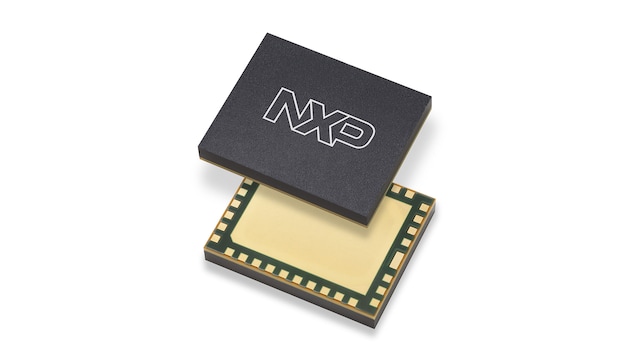

3300-3700 MHz, 29 dB, 8 W Avg. Airfast® Power Amplifier Module with Autobias Control
The A3M34SL039 is a fully integrated Doherty power amplifier module designed for wireless infrastructure applications that demand high performance in the smallest footprint. Ideal for applications in massive MIMO systems, outdoor small cells and low power remote radio heads. The field-proven LDMOS power amplifiers are designed for TDD LTE and 5G systems.
The module integrates an autobias feature with the option to overwrite production settings. Autobias automatically sets and regulates transistor bias over temperature upon power up. An integrated sensor for monitoring temperature is also present. Communications to the module can be accomplished via I²C.
Product Details
Features
- Advanced high performance in-package Doherty
- Fully matched (50 ohm input/output, DC blocked)
- Designed for low complexity digital linearization systems
- Autobias on power up
- Temperature sensing
- I²C digital interface
- Embedded registers and DACs for setting bias conditions
- Tx Enable control pin for TDD operation
RF Performance Table
3300–3700 MHz
Typical LTE Performance: Pout = 8 W Avg., VDD = 29 Vdc, 1 × 20 MHz LTE, Input Signal PAR = 8 dB @ 0.01% Probability on CCDF.1| Carrier Center Frequency |
Gain (dB) |
ACPR (dBc) |
PAE (%) |
| 3310 MHz | 29.9 | -28.0 | 33.2 |
| 3500 MHz | 29.6 | -31.6 | 37.1 |
| 3690 MHz | 29.1 | -29.6 | 35.0 |
Buy/Parametrics
1 result
Include 0 NRND
Part | Order | CAD Model | Status | Frequency (Min) (MHz) | Frequency (Max) (MHz) | Supply Voltage (Typ) (V) | Peak Power (Typ) (dBm) | Peak Power (Typ) (W) | Die Technology |
|---|---|---|---|---|---|---|---|---|---|
Active | 3300 | 3700 | 29 | 47.9 | 61.7 | LDMOS |
