LPCXpresso51U68 for the LPC51U68 MCUs

OM40005 Active

Roll over image to zoom in

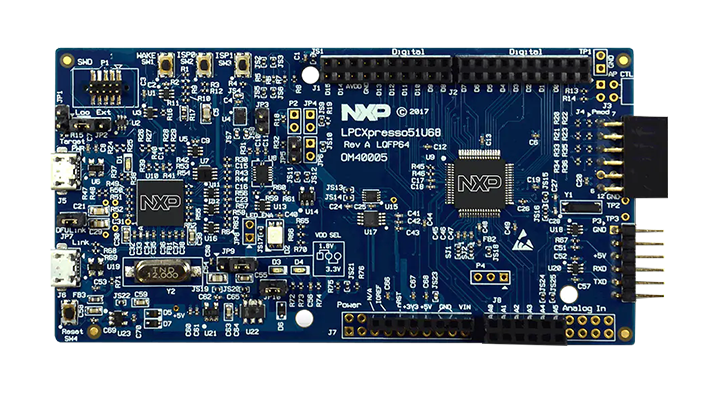

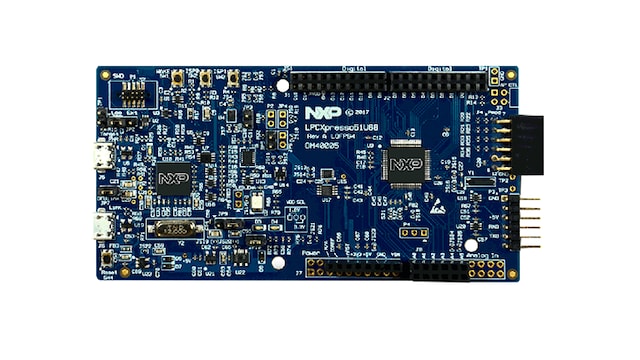

The LPCXpresso™ family of boards provides a powerful and flexible development system for NXP's Arm® Cortex®-M family of MCUs. The LPCXpresso51U68 board has been designed to enable evaluation of and prototyping with the LPC51U68 MCU leveraging the high-performance Cortex-M0+ core, power-efficiency and cost sensitive capabilities provided by the MCU device. The board also features an on-board, CMSIS-DAP / SEGGER J-Link compatible debug probe.

In addition, the board can be used with a wide range of development tools, including NXP’s MCUXpresso Integrated Development Environment (IDE) and other popular toolchains including IAR and Keil. MCUXpresso configuration tools and extensive SDK drivers/examples are available for the board at mcuxpresso.nxp.com.

Product Details

Supported Devices

Processors and Microcontrollers

General Purpose MCUs

  • LPC51U68: High-Performance, Power-Efficient and Cost Sensitive Arm® Cortex®-M0+ MCUs

Features

Microcontroller

  • LPC51U68 Target LQFP64 MCU
  • Link2 MCU

Connectivity

  • High-speed USB based
  • Link2 debug probe with Arm’s CMSIS-DAP and SEGGER J-Link protocol options
  • Link2 probe can be used with onboard LPC51U68 or external target
  • Support for external debug probes
  • FTDI UART connector
  • UART, I²C, and SPI port bridging from LPC51U68 target to USB via the onboard debug probe
  • Expansion options based on Arduino® UNO and PMod™, plus additional expansion port pins

Power Management

  • On-board 1.8/3.3 V or external power supply options
  • Built-in power consumption measurement

User Components

  • Tri-color LED
  • Target reset
  • ISP
  • Wake buttons

Buy Options

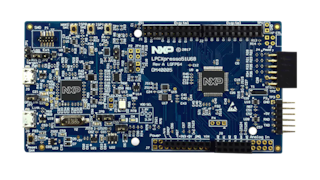

OM40005-Image

Click to expand

  • OM40005
    Active

  • LPCXpresso51U68 for the LPC51U68 MCUs.

    • 1 x LPCXpresso51U68 development board for rapid development and prototyping
  • $40.59 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 4
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
