TEA1716 240W / 12V and 24V display demo board

TEA1716DB1266 Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

Archived content is no longer updated and is made available for historical reference only.

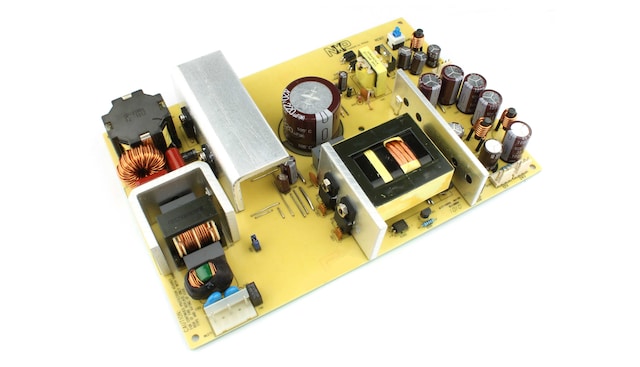

The TEA1716 LLC board demonstrates a 240 W resonant switching mode power supply for a typical LED TV design. The board is using te TEA1716 resonant combo controller (LLC and PFC) and provides 2 output voltages of 24 V / 8 A and 12 V / 4 A, the no load input power is <500 mW at high mains voltage. Typical efficiency at high output power is above 90 % for universal mains input with Schottky rectifiers.
