- Point of Sale Reader
Point of Sale Solution
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.
Many companies are creating products today that they want to add payment capabilities to. However, getting the necessary PCI and EMVCo certifications are a significant engineering and development barrier. The SLN-POS-RDR Point of Sale (POS) Reader Solution enables you to quickly add a PCI®- and EMVCo®-compliant PIN entry device (PED), NFC reader, chip card reader and magnetic stripe reader (MSR) to any design to enable credit card payment.
Product Details

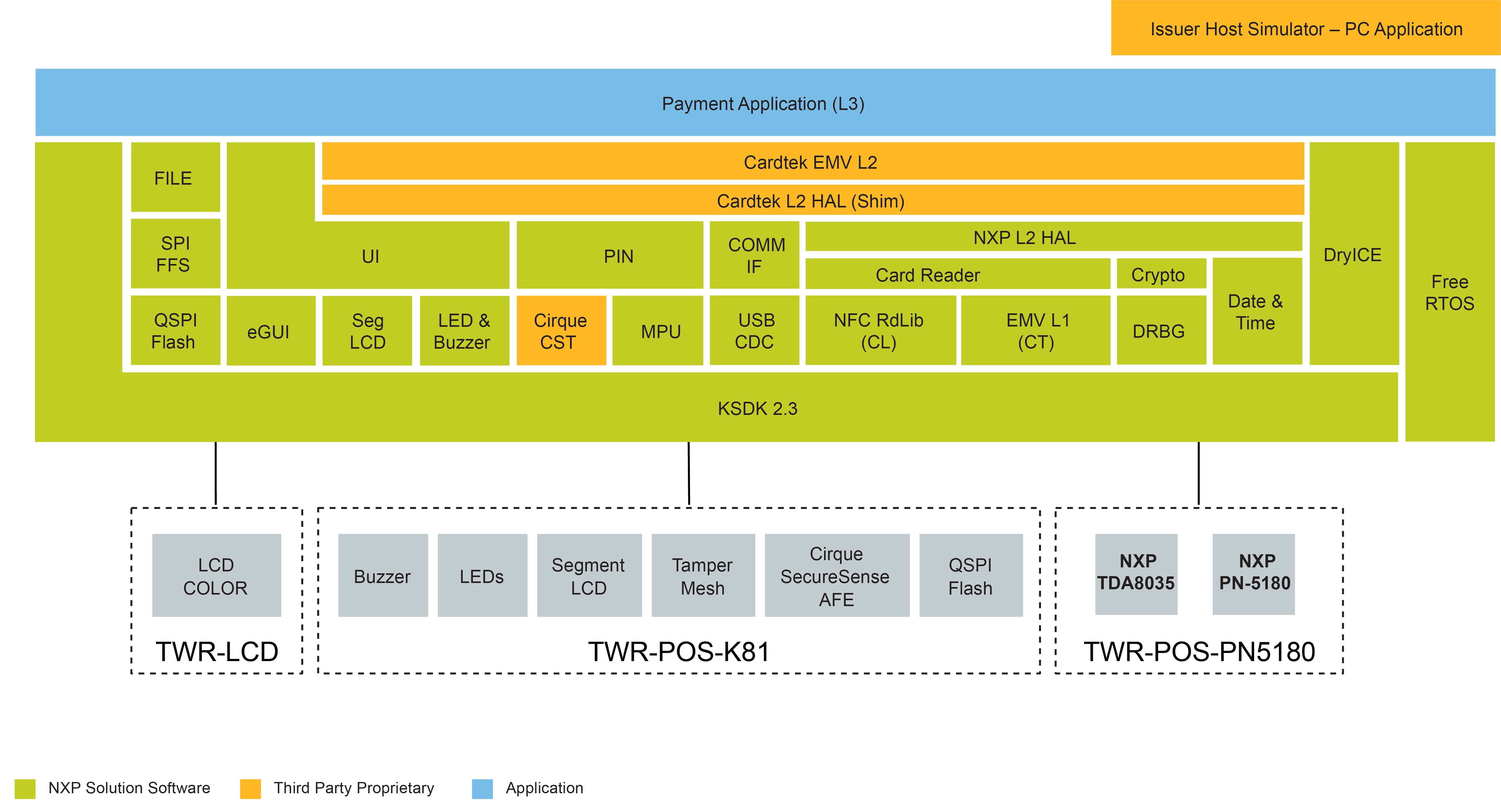

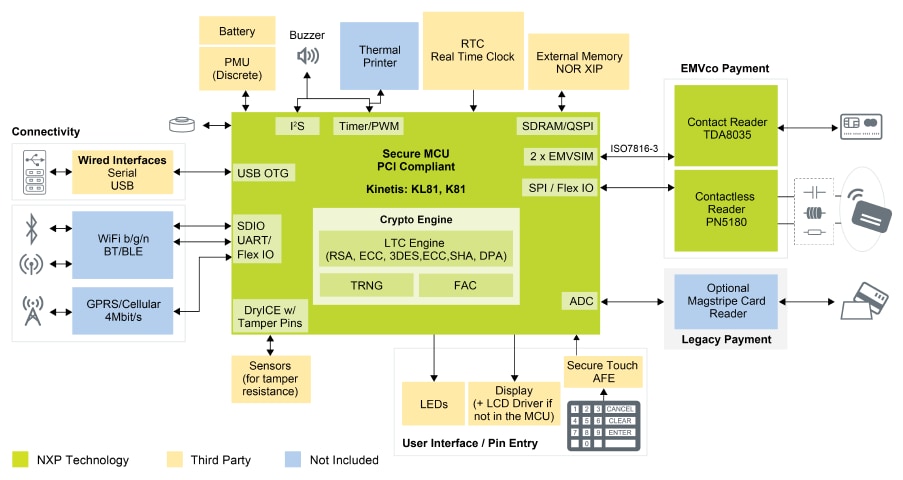

Block Diagram
Choose a diagram:
Supported Devices
Security and Authentication
Contact Readers
- TDA8035HN: High-Integrated and Low-Power Smart Card Interface
RFID
NFC Readers
- PN5180: Full NFC Forum-Compliant Frontend IC
Processors and Microcontrollers
K8x Secure
- K81_150: Kinetis K81-150 MHz HW Cryptographic Co-Processor, Anti-Tamper and QuadSPI Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core
KL Series Arm Cortex-M0+
- KL8x: Kinetis® KL8x-72/96 MHz Secure Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
Features
Kinetis K81
- Advanced physical tamper security
- Advanced public-key hardware w/ support for RSA and ECC
- XIP from external Q-SPI flashes with decryption on the fly
Contactless Reader
- PN5180 contactless 13.56 MHz NFC front-end IC
Contact Reader
- TDA8035 contact front-end IC
Display Options
- Two-line character segment
- 3.2” QVGA TFT
EMVCo
- EMVCo Level 1 CT/CL stacks by NXP
- EMVCo Level 2 CT/CL stacks by Cardtek
- EMVCo and PCI PTS V4.1 certification
Other
- Chip-and-PIN keypad based on Cirque® SecureSense™ technology
Buy Options
-

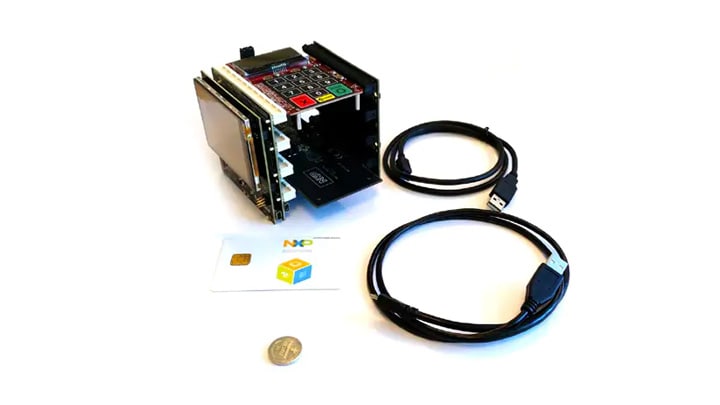

TWR-POS-K81
Active -
Point-Of-Sales (POS) Tower System Development Board based on Kinetis K81 MCUs.
-
TWR-LCD
Active -
Tower System, Peripheral Module, Graphical LCD.
Documentation
Quick reference to our documentation types.
4 documents
-
User Guide
Getting Started with Point of Sale SolutionGetting Started
-
User Guide
Point of Sale (POS) Reader Solution - Quick Start GuideGetting Started
