OM40008
-
IoT mini prototype board.
- No Longer Manufactured
- Mini IoT Baseboard
Mini IoT Baseboard
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

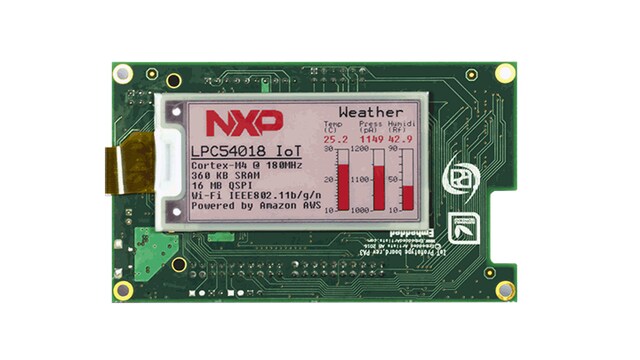

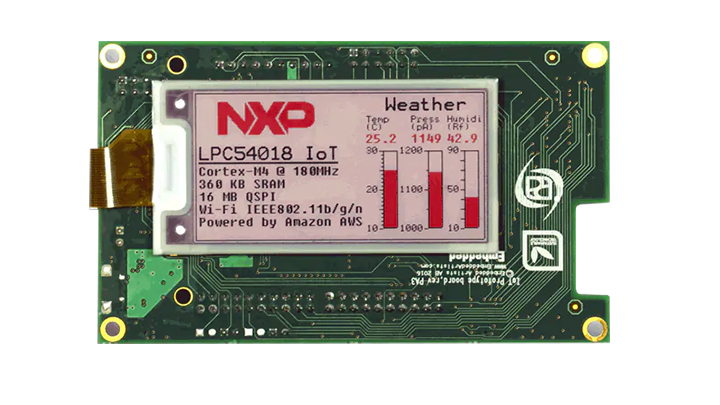

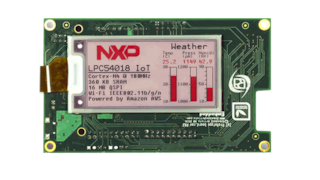

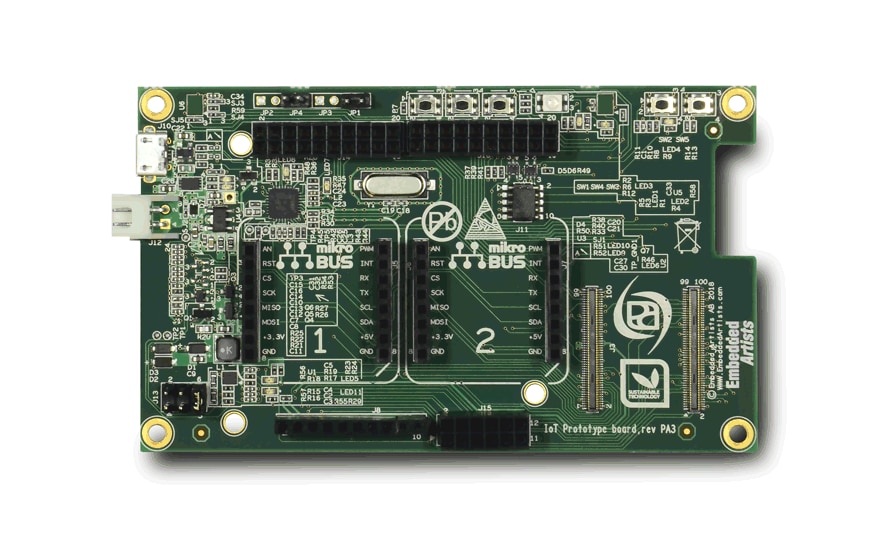

The mini IoT baseboard has been designed by Embedded Artists in partnership with NXP to complement NXP’s MCU IoT Modules (such as the LPC54018 IoT module OM40007), enabling easy-to-use, low-cost IoT application development. This baseboard provides an onboard accelerometer, buttons, LEDs and sites for the highly popular Arduino® UNO and Mikroe Click add-on boards, plus connections for ePaper displays from Pervasive Displays (available separately). The board includes support for a rechargeable lithium battery, enabling fully self-contained IoT system prototypes to be developed in a compact form factor.
An on-board CMSIS-DAP probe is provided for debugging with MCUXpresso IDE and other popular toolchains such as IAR EWARM and Keil MDK.
Product Details
Features
Power Management
- Onboard 3.3 V regulator with external power supply options
- LiPo battery charging support (using NXP MC34673)
Debug
- Onboard, USB-based debug probe with CMSIS-DAP protocol support with UART port bridging (VCOM port) from module target to USB host
Sensors
- NXP MMA8652FCR1 accelerometer
Support
- Support for simple supply IoT Module current measurement
- Support for Pervasive Displays ePaper modules (available separately)
Expansion Port
- Arduino® UNO compatible expansion site
- Arduino® UNO R3 expansion site
- Mikroe Click expansion site
User Components
- RGB user LED, plus 2 discrete user LEDs
- Target reset, ISP/user (3), and User buttons
Buy Options
Design Resources
Design Files
Quick reference to our
design files types.
1 design file
-
Printed Circuit Boards and Schematics
Schematics for Revision A IoT Mini Baseboard
Software
Quick reference to our software types.
1 software file
-
Code Snippets
MCUXpresso Projects for IoT Mini Prototype Board (OM4008) with LPC54018 IoT (OM4007)
