QorIQ® P1022 and P1013 Dual- and Single-Core Communications Processors
- This page contains information on a product that is not recommended for new designs.
P1022 device is "Not recommended for new designs", please use the replacement families Power Architecture (T1013, T1023), Arm Architecture (LS1012A, LS1023A).
The QorIQ® P1022 family of processors is designed to deliver complex application processing performance with exceptional feature integration and high-speed connectivity for IP networking and advanced media processing applications. This device combines dual e500 processor cores built on Power Architecture® technology with enhanced system peripherals and interconnects technology to balance processor performance with I/O system throughput. The P1013 is a single-core version of the P1022 family.
Ideally suited for the printing and imaging market, the P1022 processor includes advanced deep sleep power and energy management features that enable developers to design next-generation energy efficiency, environmental and governmental energy regulatory power requirements. This innovative deep sleep function enables <1W system designs where the P1022 processor is able to continue to receive packets and perform fast recovery from an extremely low-power sleep mode.
Product Details

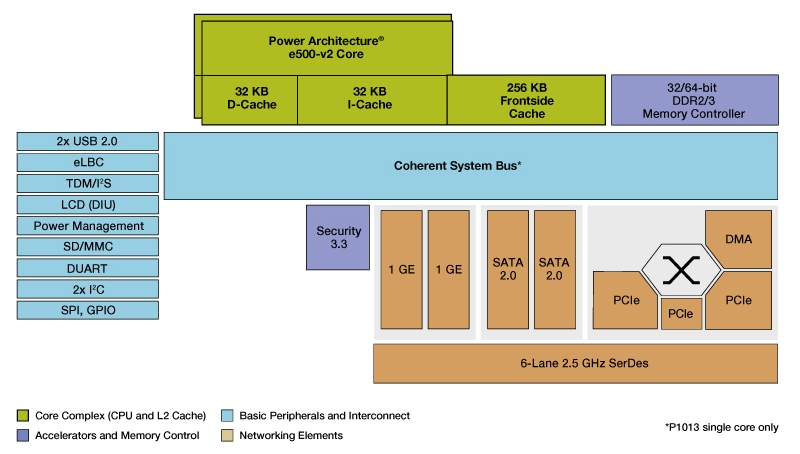

Features
Core Complex
- Dual (P1022) or single (P1013) high-performance Power Architecture e500 cores
- Core frequencies from 667 MHz to 1200 MHz
- 32 KB L1 I/D caches
- 256 KB L2 cache with ECC.
- Also configurable as SRAM and stashing memory
Networking Elements
- Two 10/100/1000 Mbps enhanced three-speed Ethernet controllers (eTSECs)
- High-speed interfaces supporting various multiplexing options:
- Six SerDes up to 3.125 GHz multiplexed across controllers
- Three PCI Express® interfaces
- Two SGMII interfaces
- Two serial ATA interfaces
Accelerators and Memory Control
- 32/64-bit DDR2/DDR3 SDRAM memory controller with ECC support
- Integrated security engine
- Protocol support includes SNOW, ARC4, 3DES, AES, RSA/ECC, RNG, single-pass SSL/TLS, Kasumi, XOR acceleration
Basic Peripherals and Interconnect
- Dual high-speed USB controllers (USB 2.0)
- eLBC, TDM, I²S, eSDHC, Dual I²C, DUART, PIC, DMA, GPIO
Additional Features
- LCD interface supporting a display of 1280 x 1024P
- @ 60 Hz, 24 bits per pixel
- Advanced power management
Comparison Table
| P1013 | P1022 | |
|---|---|---|
| Cores | 1 | 2 |
| Core Frequency | 667 - 1067 MHz | 667 - 1067 MHz |
| L2 Cache | 256KB | 256KB |
| DDR | 32/64-bit DDR2/DDR3 | 32/64-bit DDR2/DDR3 |
| GbE | 2 x 10/100/1000 | 2 x 10/100/1000 |
| PCIe Gen 1.0 | 2 controllers w/ 4 SERDES | 2 controllers w/ 4 SERDES |
| USB 2.0 | 2 | 2 |
| Memory Card | SD/MMC | SD/MMC |
| Other interfaces | Dual- SATA, LCD I/F, SPI, 2xI²C, DUART | Dual- SATA, LCD I/F, SPI, 2xI²C, DUART |
| Accelerators | SEC3.1 | SEC3.1 |
Buy/Parametrics
1-10 of 23 results
Exclude 23 NRND
Part | CAD Model | Status | Package Type | Package Termination Count | Core Type | Core: Number of cores (SPEC) | Operating Frequency [Max] (MHz) | PCIe | External Memory Supported | Ambient Operating Temperature (Min to Max) (℃) |
|---|---|---|---|---|---|---|---|---|---|---|
End of Life | HBGA689 | 689 | e500 | 1 | 800 | 3 | DDR2 SDRAM, DDR3 SDRAM | 0 to 105 | ||
End of Life | HBGA689 | 689 | e500 | 1 | 1067 | 3 | DDR2 SDRAM, DDR3 SDRAM | 0 to 105 | ||
End of Life | HBGA689 | 689 | e500 | 1 | 1200 | 3 | DDR2 SDRAM, DDR3 SDRAM | — | ||
End of Life | HBGA689 | 689 | e500 | 1 | 600 | 3 | DDR2 SDRAM, DDR3 SDRAM | 0 to 105 | ||
End of Life | HBGA689 | 689 | e500 | 1 | 800 | 3 | DDR2 SDRAM, DDR3 SDRAM | 0 to 105 | ||
End of Life | HBGA689 | 689 | e500 | 1 | 1067 | 3 | DDR2 SDRAM, DDR3 SDRAM | 0 to 105 | ||
End of Life | HBGA689 | 689 | e500 | 1 | 800 | 3 | DDR2 SDRAM, DDR3 SDRAM | -40 to 125 | ||
End of Life | HBGA689 | 689 | e500 | 1 | 1067 | 3 | DDR2 SDRAM, DDR3 SDRAM | -40 to 125 | ||
End of Life | HBGA689 | 689 | e500 | 1 | 600 | 3 | DDR2 SDRAM, DDR3 SDRAM | -40 to 125 | ||
End of Life | HBGA689 | 689 | e500 | 1 | 800 | 3 | DDR2 SDRAM, DDR3 SDRAM | -40 to 125 |
