QorIQ® P1010 and P1014 Low-Power Communications Processors with Trust Architecture
- This page contains information on a product that is not recommended for new designs.
P1010 and P1014 devices are "Not recommended for new designs", please use the replacement families Power Architecture (T1013, T1023), Arm Architecture (LS1012A, LS1023A).
The QorIQ® P1010 and P1014 communications processors expand QorIQ performance into cost- and power-sensitive applications. Based on 45 nm technology, the processors provide performance up to 1000 MHz and power dissipation as low as 1.1 watts, along with extensive integration and a rich set of interfaces that target cost-sensitive endpoint applications such as:
- IP Camera
- Industrial Robot
- Wireless LAN (WLAN) Access Point
- Network Attached Storage
- Printing and Imaging
- Router
Product Details

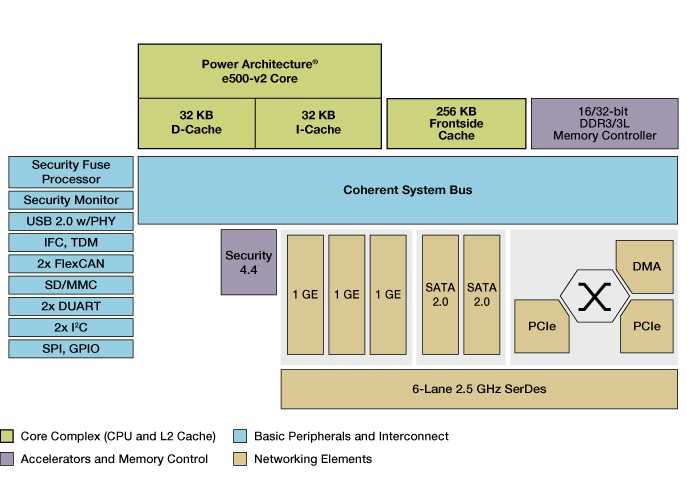

Features
Core Complex
- Single e500 core, built on Power Architecture® technology
- 32 KB of L1 instruction cache and 32 KB of L1 data cache
- 400 to 1000 MHz core clock frequency
- 256 KB L2 cache with ECC, also configurable as SRAM and stashing memory
Networking Elements
- SerDes
- 6 lanes at up to 3.125 GHz
- Supports SGMII, PCI Express® (PCIe) and SATA
Accelerators and Memory Control
- 16-/32-bit DDR3 SDRAM memory controller with ECC support
- Hardware-based cryptography acceleration (SEC4.0)
- Up to three Gigabit Ethernet interfaces with support for IEEE® 1588
- TCP/IP acceleration, quality of service and classification capabilities
- Support for RGMII and SGMII
Basic Peripherals and Interconnect
- 1 x USB controller (USB 2.0) with integrated PHY, OTG and device support
- 2x Serial ATA (SATA2.0) controllers
- Serial peripheral interface (SPI)
- Trusted boot platform, integrated security
- Four-channel DMA controller
- 2 x I²C controllers, 2 x DUARTs, timers
- Integrated flash controller (IFC) with enhanced capabilities to support large pages
- 2x PCIe controllers
- 2x FlexCAN interfaces to support industrial protocols
Additional Features
- Trusted boot platform
Comparison Table
| P1010 | P1014 | |
|---|---|---|
| Core Frequency | 533 to 1000 MHz | 400 to 800 MHz |
| L2 Cache | 256 KB | 256 KB |
| DDR3 | 16/32-bit @ 800 MHz | 16-bit @ 800 MHz |
| GE Ports | 3 | 2 |
| SATA | 2 | 2 |
| PCI Express | 2 | 2 |
| Security | Trusted | No |
| CAN | 2 | No |
Buy/Parametrics
1-10 of 42 results
Exclude 42 NRND
Part | Order | CAD Model | Status | Budgetary Price excluding tax | Package Type | Package Termination Count | Core Type | Core: Number of cores (SPEC) | Operating Frequency [Max] (MHz) | PCIe | External Memory Supported | Ambient Operating Temperature (Min to Max) (℃) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
End of Life | — | FBGA425 | 425 | — | — | — | — | — | — | |||
— | End of Life | — | FBGA425 | 425 | e500 | 1 | 533 | 2 | DDR3 SDRAM, DDR3L SDRAM | 0 to 105 | ||
— | End of Life | — | FBGA425 | 425 | e500 | 1 | 667 | 2 | DDR3L SDRAM, DDR4 SDRAM | 0 to 105 | ||
End of Life | — | FBGA425 | 425 | — | — | — | — | — | — | |||
— | End of Life | — | FBGA425 | 425 | e500 | 1 | 800 | 2 | DDR3 SDRAM, DDR3L SDRAM | 0 to 105 | ||
End of Life | — | FBGA425 | 425 | — | — | — | — | — | — | |||
— | End of Life | — | FBGA425 | 425 | e500 | 1 | 800 | 2 | DDR3L SDRAM, DDR4 SDRAM | 0 to 105 | ||
— | End of Life | — | FBGA425 | 425 | e500 | 1 | 1000 | 2 | DDR3 SDRAM, DDR3L SDRAM | 0 to 105 | ||
— | End of Life | — | FBGA425 | 425 | e500 | 1 | 533 | 2 | DDR3L SDRAM, DDR4 SDRAM | 0 to 105 | ||
— | End of Life | — | FBGA425 | 425 | e500 | 1 | 667 | 2 | DDR3 SDRAM, DDR3L SDRAM | 0 to 105 |
