High performance multi-protocol NFC frontend

CLRC663
Active

Roll over image to zoom in

If you need the best NFC performance or the lowest power consumption, use this remarkably efficient yet highly flexible frontend to push your design further. It offers an extended temp range, pin-to-pin compatibility to CLRC663 family (MFRC630, SLRC610), and time-saving software tools.

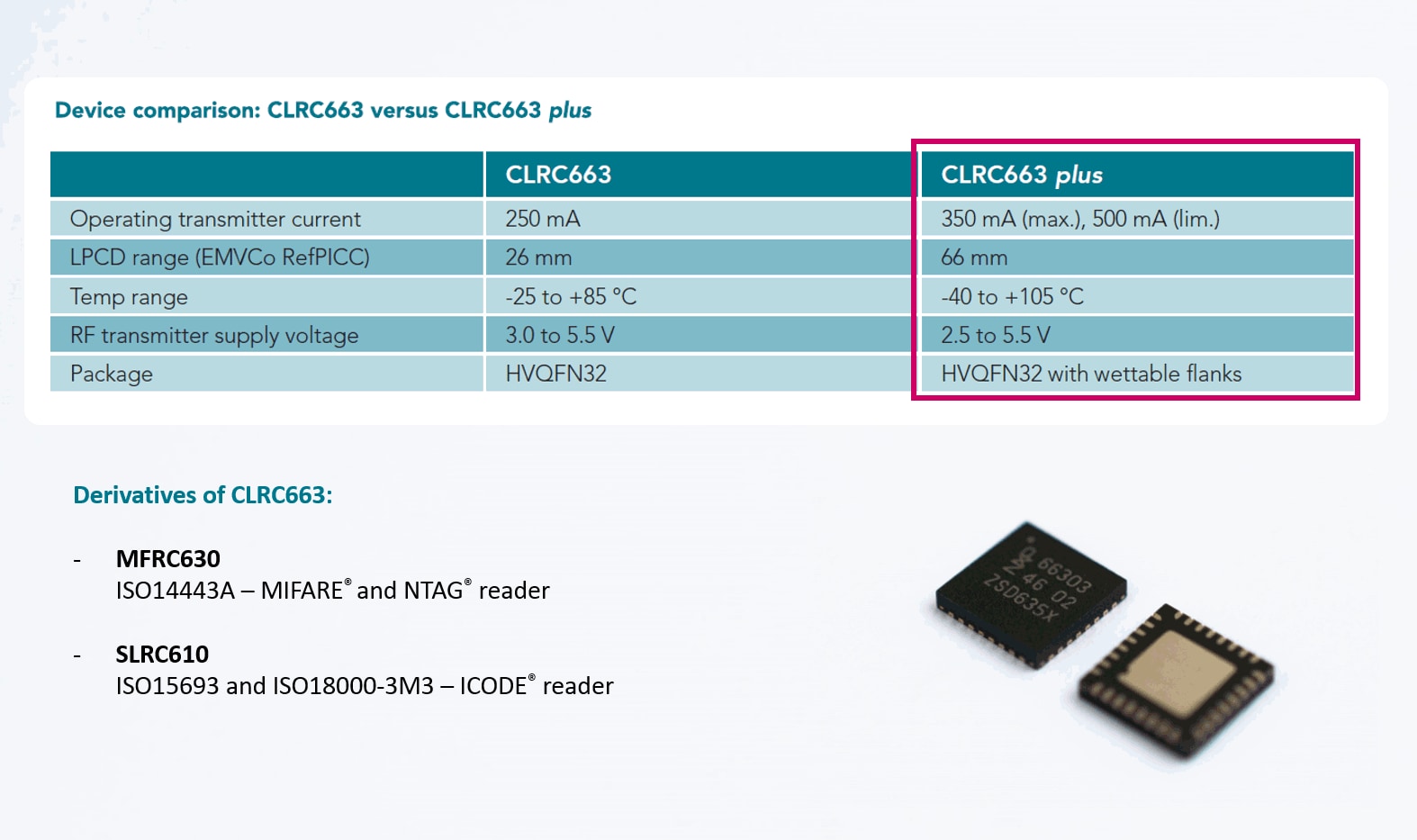

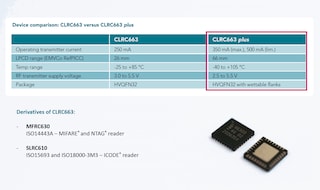

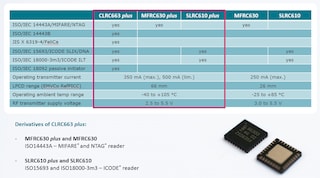

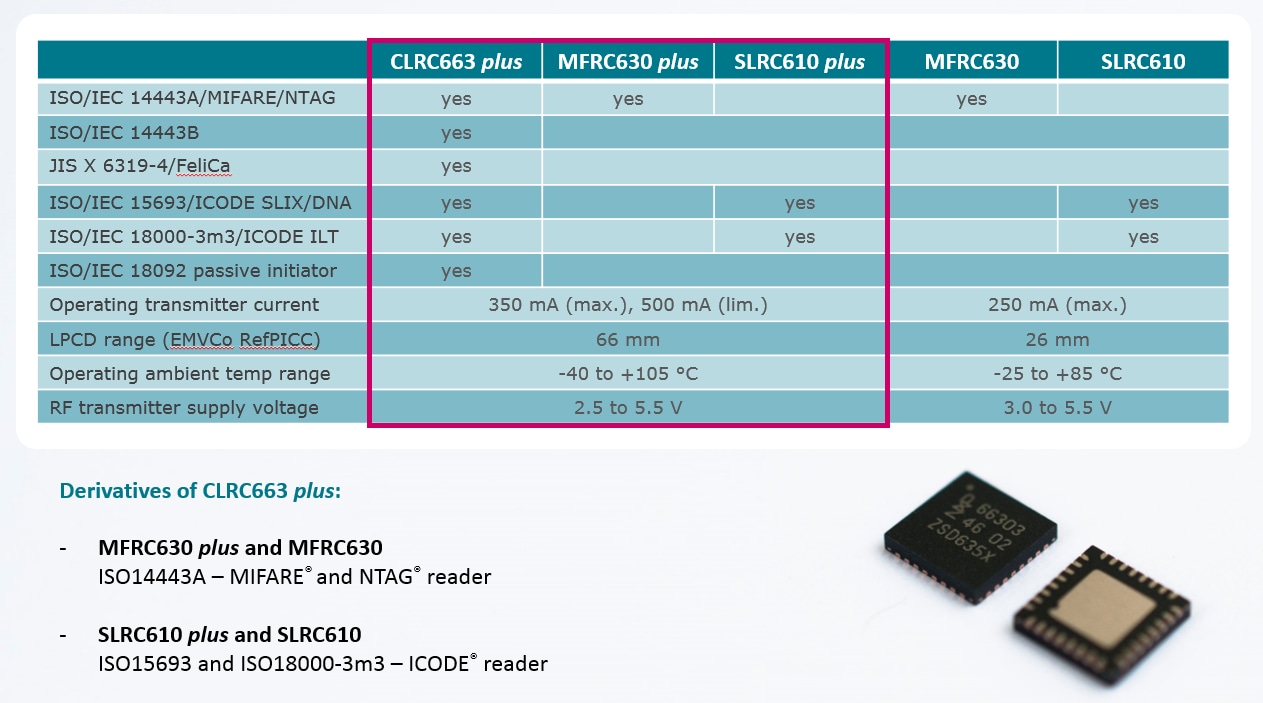

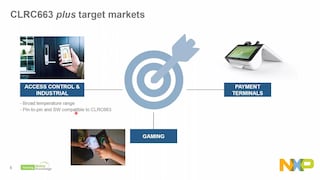

The CLRC663 plus (CLRC66303HN) is the perfect choice for NFC applications with high performance requirements: access control, payment, gaming and industrial.

Product Details

Features

High performance and more flexible antenna design

  • Maximum transmitter current: 350 mA operating with 500 mA limiting value
  • Freely programmable 6 kByte EEPROM

Longer battery life

  • Supply voltage: 2.5 to 5.5 V
  • Power-save modes: hard power-down, standby, extended LPCD options

Industrial/Automotive

  • Temp range (-40 to +105 °C)

Multiple interfaces to support a broad range of microcontrollers and high-security reader implementations

  • Host interfaces: SPI, I²C, UART
  • Up to 8 GPIO
  • SAM interface
  • 512 byte FIFO buffer reduces performance requirements of host controller

Fast development

  • Supports NFC Cockpit and NFC Reader Library
  • Complete development kits

Included licenses

  • Includes NXP ISO/IEC14443-A and Innovatron ISO/IEC14443-B intellectual property licensing rights

EMVCo ready

  • EMVCo 2.6 L1 analog & digital compliance

Full RF standard compliance

  • ISO/IEC 14443A/MIFARE
  • ISO/IEC 14443B
  • JIS X 6319-4 (comparable with FeliCa1 scheme)
  • ISO/IEC 15693 (ICODE® SLIX family, ICODE® DNA)
  • ISO/IEC 18000-3 mode 3/ EPC Class-1 HF (ICODE® ILT family)
  • Peer-to-Peer Mode: ISO/IEC 18092 passive initiator

Compatible with all NXP smartcard products

  • Complete MIFARE® family: Ultralight, Classic 1K & 4K, DESFire EV1 & EV2 and Plus EV1
  • Complete NTAG® family incl. NTAG I²C plus
  • Complete SmartMX® family incl. SmartMX2 P40 & P60

Compact, time-saving package

  • HVQFN32 with wettable flanks to support high production yield
  • Pin-compatible to CLRC663 makes it easy to upgrade from existing designs

More

Buy/Parametrics

1 result

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Budgetary Price excluding tax

Package Type

Package Termination Count

Additional Features

CLRC66303HN
Data Sheet

Active

1K @ US$4.20

HVQFN32

32

register level command- response
