Getting Started with the NAFExx388-EVB Evaluation Board

Last Modified: Jun 20, 2023Supports NAFExx388-EVB

Contents of this document

  • 1

    Out of the Box

  • 2

    Get Hardware

  • 3

    Configure Hardware

Purchase your NAFExx388-EVB

Contents of this document

1. Out of the Box

The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost, and improved performance in powering state-of-the-art systems.

This page will guide you through the process of setting up and using the NAFExx388- EVB board.

1.1 Kit Content and Packing List

The NAFExx388-EVB contents include:

  • Assembled and tested evaluation board in an antistatic bag

1.2 Static Handling Requirements

1.3 Minimum System Requirements

  • PC Pentium processor (or equivalent)
  • One USB port (either 3.0 or 2.0 compatible)
  • Windows 7, 8, 10
  • OM13098 (LPC54628) MCU evaluation board (from www.nxp.com)

NextGet Hardware

2. Get Hardware

2.1 Board Features

  • Eight input SW configurable AI-AFE
  • Easy-to-use GUI-based software demonstrates the capabilities of the NAFExx388
  • Onboard transformer to provide DC-DC power supply (+3.3 V, ±15 V) to NAFExx388
  • Convenient test points for easy scope measurements and signal access
  • USB interface to the host PC

2.2 Board Description

The NAFExx388-EVB evaluation board features a highly configurable, industrial-grade, multichannel AI-AFE that meets high-precision measurement requirements. The device is composed of a low-leakage, high-voltage multiplexer, low-offset drift buffers, a low noise and drift PGA, a precision 24-bit sigma delta (ADC) and low-drift voltage reference.

2.3 Kit Featured Components

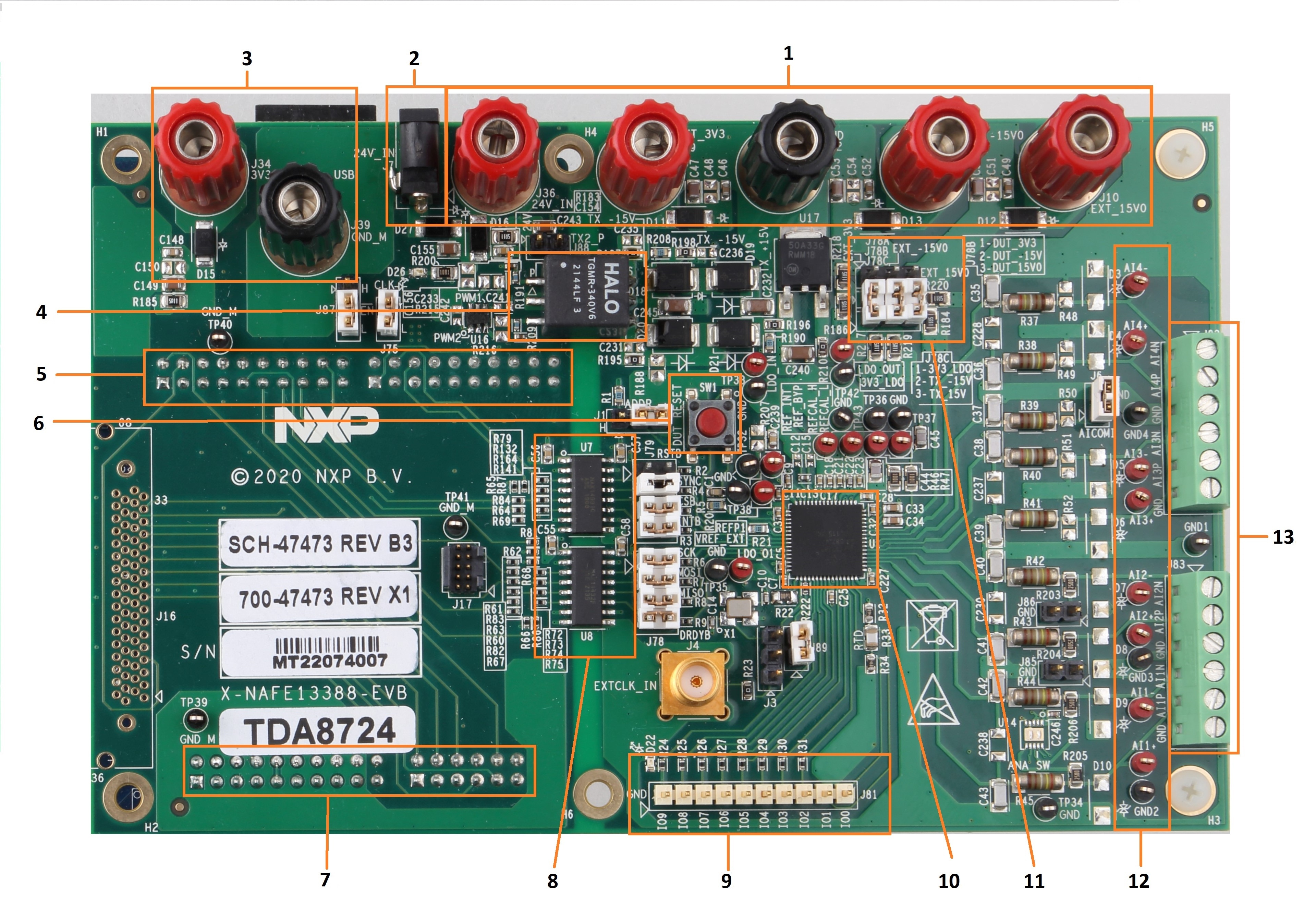

Overview of the NAFExx388-EVB board

  1. Banana jack for external power supply connection for DUT
  2. Jack connector for 24 V AC-DC power adaptor
  3. Banana jack for external power supply connection for isolated left DIO (digital IO) section
  4. DC-DC transformer
  5. PMOD connector to MCU
  6. Switch to reset the DUT
  7. PMOD connector to MCU
  8. Digital Isolators
  9. DUT GPIO test points
  10. DUT – NAFExx388
  11. 3-way jumpers for power supply source selection
  12. Access test points for DUT 8 analog inputs
  13. Screw connector to source DUT 8 analog inputs

PreviousOut of the Box
NextConfigure Hardware

3. Configure Hardware

3.1 Configure the Hardware

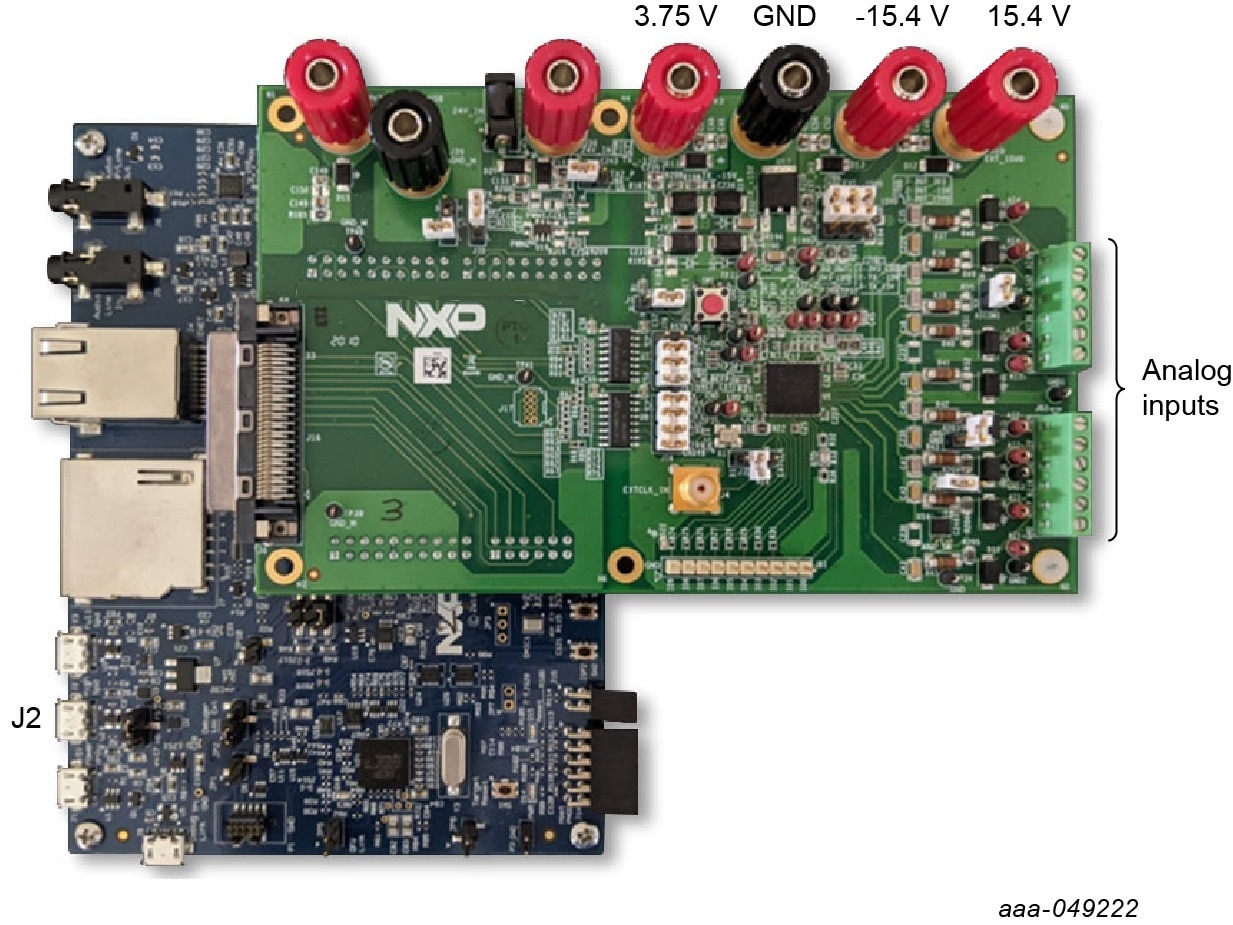

The NAFExx388 evaluation kit includes the NAFExx388 evaluation board, an OM13098 (LPC54628) evaluation board, and a USB cable.

To set up the hardware, do the following:

  1. Firmly connect the NAFExx388 (AFE) evaluation board to the LPC54628 (microcontroller) evaluation board using the Arduino connectors.
  2. To connect both boards, slide J15, J18, J19, and J22 male connectors at the bottom side of the NAFExx388 (AFE) evaluation board into the appropriate female connectors on the LPC54628 (microcontroller) evaluation board.
  3. Apply AVDD/DVDD = 3.75 V on J9, HVDD = +15.4 V on J10, and HVSS = -15.4 V on J11 banana jack connectors and turn on the power supply.
  4. Connect USB to µUSB cable between USB port of the computer and J2 (µ USB) port of LPC54628 evaluation board.

PreviousGet Hardware
NextDesign Resources

Design Resources

Board Information

Additional References

In addition to our NAFExx388, Highly Configurable 8 Channel ±25 V Universal Input Low Power Analog Front-End page, you may also want to visit:
