1. Out of the Box

The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems.

This page will guide you through the process of setting up and using the FRDM665CANFDEVB board.

1.1 Kit Contents and Packing List

The FRDM665CANFDEVB contents include:

MC33665A CAN FD EVB, CAN or CAN FD to four transformer physical layer (TPL) interface EVB
One TPL daisy chain cable; two-wire twisted pair daisy chain interface cable
Power cable
Quick Start Guide

Mark as complete:1.1 Kit Contents and Packing List

1.2 Additional Hardware

In addition to the kit contents, the following hardware is necessary or beneficial when working with this board.

External dual power supply 10 V to 18 V/2 A (optional)
EVBs of battery cell controller (BCC) devices from NXP
S32K344EVB-Q172 evaluation and development board for S32K344 from NXP
14 cell battery pack or a battery emulator, such as BATT-14CEMULATOR

Mark as complete:1.2 Additional Hardware

NextGet to Know the Hardware

2. Get to Know the Hardware

2.1 Board Features

CAN or CAN FD
Onboard analog termination for daisy chain communication to BCC devices
Configurable VIO voltage
Configurable VDD5V from internal and external supply
DIP switch for configuring the arbitration baud rate and CAN ID of MC33665A
Reset switch for the device and board
LED display for the status of power
Connectors for external interface to general-purpose input/output (GPIO) and I²C-bus

Note: Contact NXP engineering team for using TPL AUTOWAKE function in FRDM665CANFDEVB/MC33665A.

Mark as complete:2.1 Board Features

2.2 Board Description

The FRDM665CANFDEVB serves as a hardware evaluation tool in support of the MC33665A device of NXP. The MC33665A is a gateway router that can route TPL messages from the microcontroller (MCU) to four different TPL ports. It is designed for use in both automotive and industrial applications. The device can route both TPL2 and TPL3 messages. The FRDM665CANFDEVB is an ideal board for rapid prototyping of MC33665A for CAN or CAN FD interfaces to an MCU.

Mark as complete:2.2 Board Description

2.3 Kit Featured Components

Overview of the FRDM665CANFDEVB board.

GS-FRDM665CANFDEVB-aaa-045598

Mark as complete:2.3 Kit Featured Components

PreviousOut of the Box

NextConfigure Hardware

3. Configure Hardware

FRDM665CANFDEVB can be configured as a stacked board to S32K344EVB.

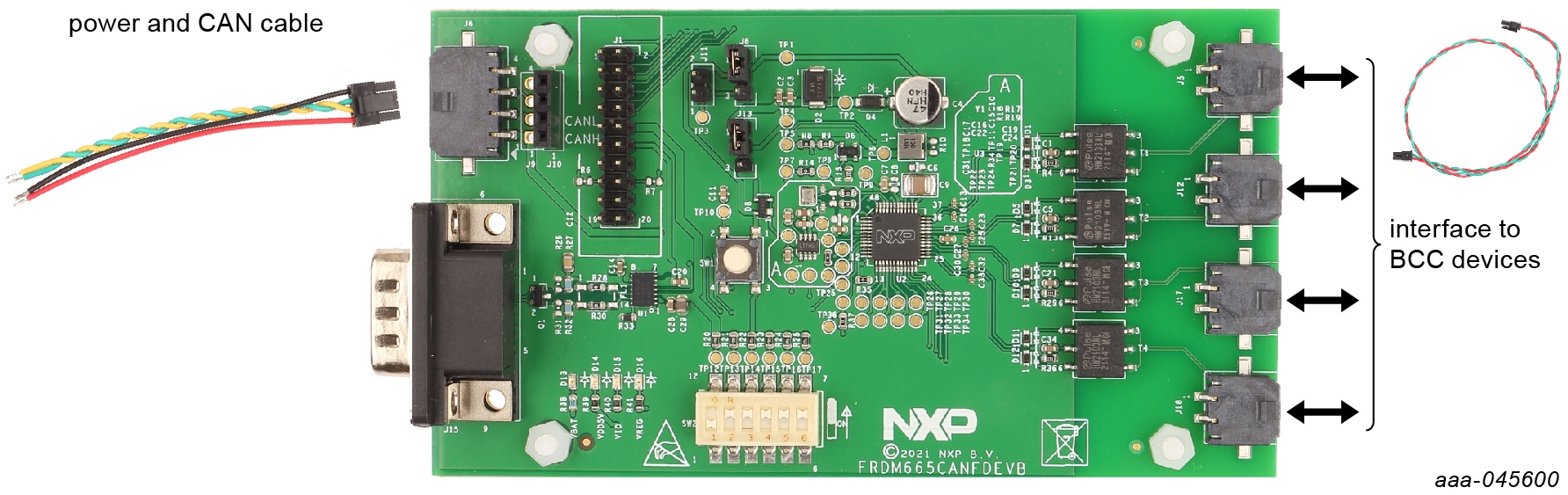

3.1 CAN or CAN FD Interface

FRDM665CANFDEVB can be connected to a PC, laptop or other. ECUs with power and CAN cables or connectors. 12 V supply line can be used to power the FRDM665CANFDEVB. Female sub-D9 connector can be interfaced to relevant CAN tool or ECU. SW2 can be used to configure the CAN ID for MC33665A, CFG pins can also be configured to set the arbitration speed for MC33665A. Press SW1 button (RST switch) after changing any settings on SW2 (ID and CFG). Ensure the settings on J8 for VDD5V and J13 for VIO selection are appropriate for the power supplied to the board. CANEVB interface J10 can be used for direct interface with S32K344EVB for CAN or CAN FD.
