Getting Started with FRDM-MCXW71
Contents of this document
-
Plug It In
-
Get Software
-
Build, Run
-
Create
-
MCUXpresso Developer Experience
Sign in to save your progress. Don't have an account? Create one.
Purchase your FRDM-MCXW71 | MCUXpresso Developer Experience

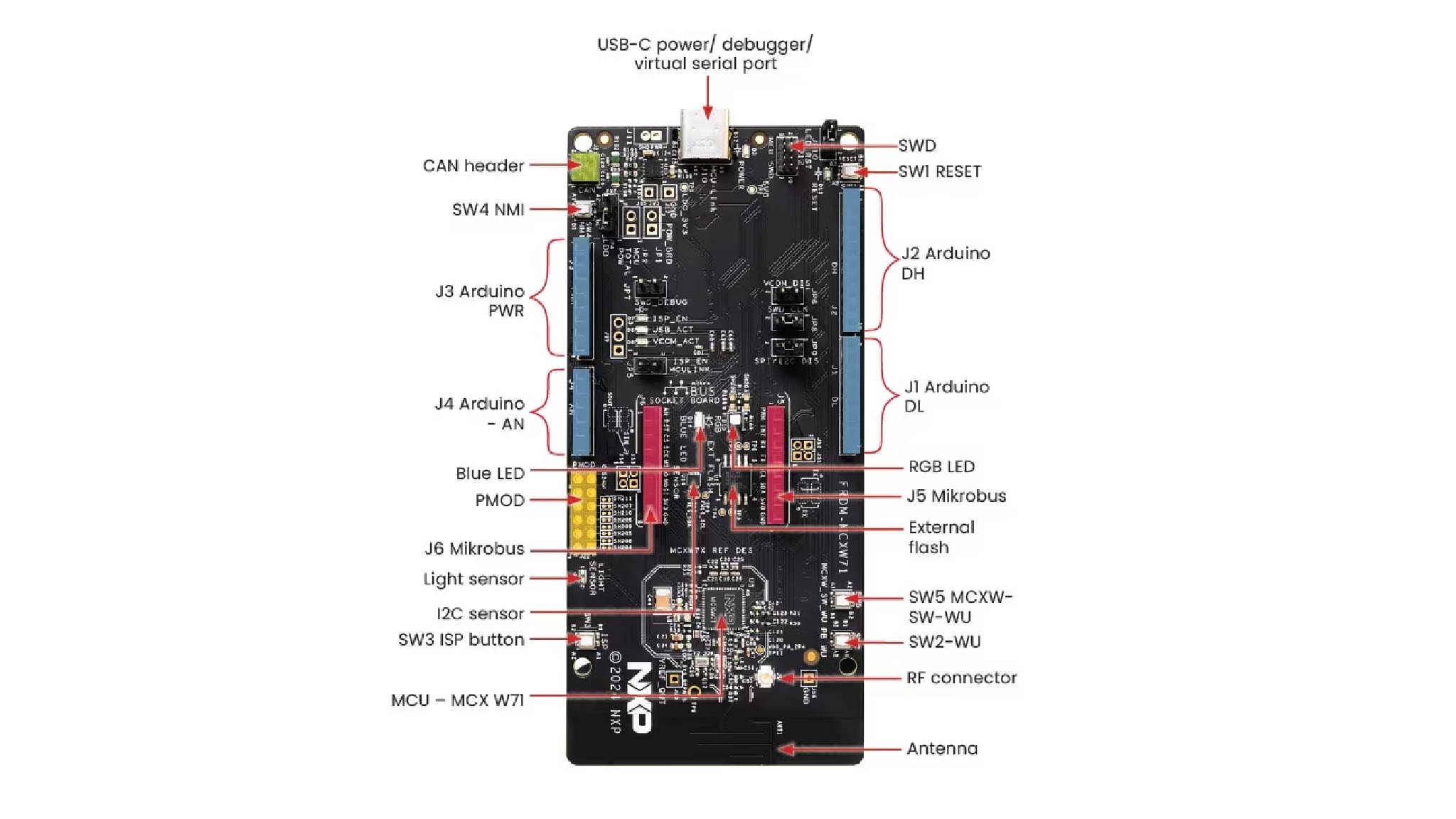

1. Plug It In
Let's take your FRDM board for a test drive! You have the choice of watching the sequence in a short video or following the detailed actions listed below.
2. Get Software
2.1 Install Your Toolchain
NXP offers a complimentary toolchain called MCUXpresso IDE. Please download MCUXpresso v11.8.1 or above.
Learn how to install VS Code for your host PC with the following tutorial.
Want to use a different toolchain?
No problem! The MCUXpresso SDK includes support for other tools such as IAR , Keil and command-line GCC .
2.2 Jump Start Your Design with the MCUXpresso SDK
The MCUXpresso SDK is complimentary and includes full source code under a permissive open source license for all hardware abstraction and peripheral driver software. You may install the MCUXpresso SDK directly from the MCUXpresso SDK website at MCUXpresso SDK Builder . Click the button below to open this board's SDK builder.
2.3 MCUXpresso Config Tools
The MCUXpresso Config Tools is an integrated suite of configuration tools that guides users in creating new MCUXpresso SDK projects, and also provides pin and clock tools to generate initialization C code for custom board support, it is fully integrated as a part of MCUXpresso IDE and also as a separate tool if using a different IDE.
Click the Get MCUXpresso Config Tools below to get the Config Tools installer.
2.4 Programming and Provisioning Tools
NXP provides MCUXpresso Secure Provisioning (SEC) Tool for trial run and mass production use. It supports secure programming and device provisioning on NXP's microcontrollers at the production stage. The MCUXpresso Secure Provisioning (SEC) Tool is a GUI-based application provided to simplify generation and provisioning of bootable executables on NXP MCU devices.
The Secure Provisioning SDK (SPSDK) is an open-source development kit with its source code released on GitHub and PyPI . This command-line tool is useful when interfacing with a custom or partner programming tool.
2.5 Install Drivers
MCU-Link is supported on host computers running on Windows 10, MacOS X, and Ubuntu Linux operating systems (OSs). For each OS, an MCU-Link firmware package is available that includes the host device drivers, MCU-Link firmware, and scripts to program CMSIS-DAP and J-Link firmware options.
To download and install the host device drivers and update the MCU-Link firmware, follow these steps:
- Go to the MCU-Link page on the NXP website
- Click Design Resources. Then, click the SOFTWARE category. The latest version installation packages are displayed at the top for all three compatible OSs
- Download the package for your host OS and install it (Linux/MacOS) or execute the installer program (Windows). The package is installed/unzipped to the
MCU-LINK_installer_Vx_xxx_directory - Switch MCU-Link to (USB) ISP mode by shorting jumper
JP5 - Connect the

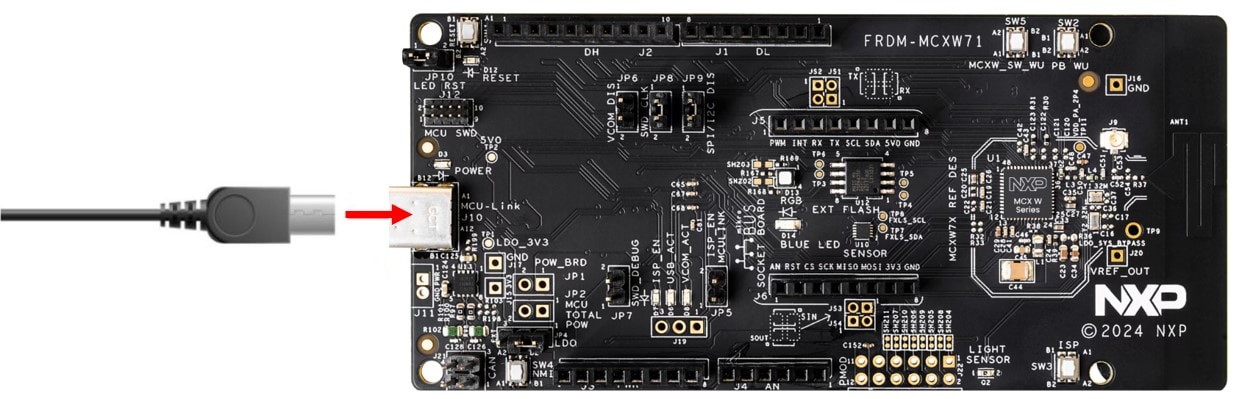

J10connector on the board to the USB port of the host computer through a USB micro-B cable. MCU-Link gets powered up in (USB) ISP mode. The board gets enumerated as a human interface device (HID) class device - Program the MCU-Link firmware into the MCU-Link internal flash using the instructions provided in the "Firmware Installation Guide" section of the "Readme.txt" file. This file can be found in the
MCU-LINK_installer_Vx_xxx_directory. Use the scripts provided to program the CMSIS-DAP or J-Link firmware option - Disconnect the board from the host computer, remove jumper
JP5and reconnect the board
2.6 Secure Provisioning Command Line Tool (SPSDK)

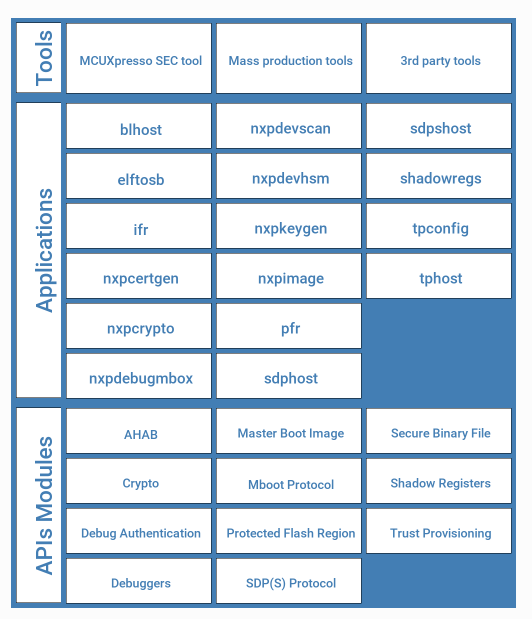

Secure Provisioning SDK (SPSDK) is a unified, reliable and easy-to-use Python SDK library working across the NXP MCU portfolio providing a strong foundation from quick customer prototyping up to production deployment.
To install the SPSDK, you may follow the instructions below, for more details or if you are using a different OS, please visit the installation guide provided in the Secure Provisioning SDK (SPSDK)
Requirements
Make sure to have Python 3.7+ installed (old version 2.x is not supported)
For Windows users:

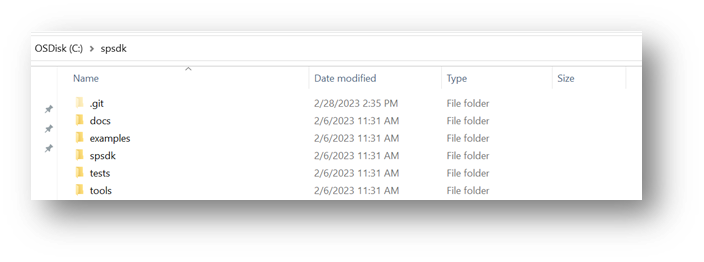

- Create a folder in which the SPSDK repository will be located. In this example, I use the
C:\spsdk -
Clone the repository to this folder
- git clone MCUXpresso Github
-

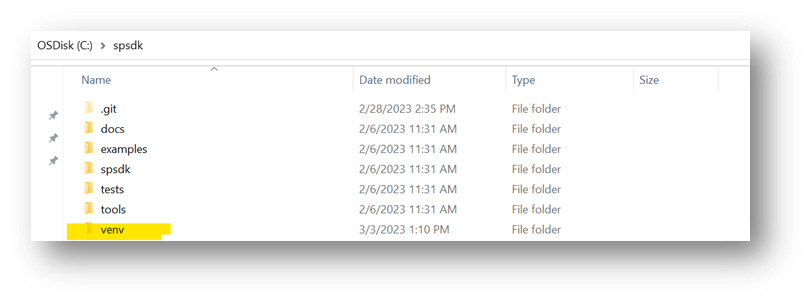

In the same folder, you may create and activate your virtual environment.
Create the python virtual environment.
-
python -m venv venvActivate the virtual environment
-
venv\Scripts\activateWhen the virtual environment is active you will see the virtual environment's name in parenthesis next to your current working path.
Anytime you use the SPSDK, it is necessary to activate the virtual environment. You do not need to create a new environment each time. Repeat step 3.b only.
-
-
Install dependencies
python -m pip install --upgrade pipc.pip install spsdk
-
Ensure that you spsdk installation has been successful. You will see the output of the complete menu by running the following command.
spsdk -help
3. Build, Run
If one or more of the demo applications or driver examples sounds interesting, you're probably wanting to know how you can build and debug yourself. The Getting Started with MCUXpresso SDK guide provides easy, step-by-step instructions on how to configure, build and debug demos for all toolchains supported by the SDK.
3.1 Updating NBU for Wireless Examples
It is necessary to work with the matching NBU image for the SDK version of the application you are working with. This means that when you download your SDK, prior to loading any wireless SDK example, update your NBU image with the provided binaries in the following folder of the SDK:
../middleware/wireless/ble-controller/bin.

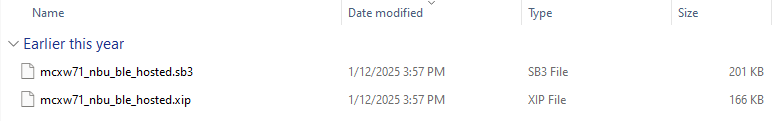

Here you will find two type of images for the NBU FW:
- SB3 File Type
- The FRDM-MCXW71 comes programmed with set keys for ease of use in development
- XIP File Type
- This is for samples that are not programmed with any keys. For these devices, you can create your custom keys, then create an SB3 file based on this XIP image
-
Open the path to your SPSDK folder and activate the virtual environment
>> venv\Scripts\activate
-
Place your device in ISP mode. For this example we will use the UART peripheral by connecting a USB cable to
J14. On the EVK you can enter ISP by the following method- Press and hold
SW3, press and release Reset, and then releaseSW3
- Press and hold
-

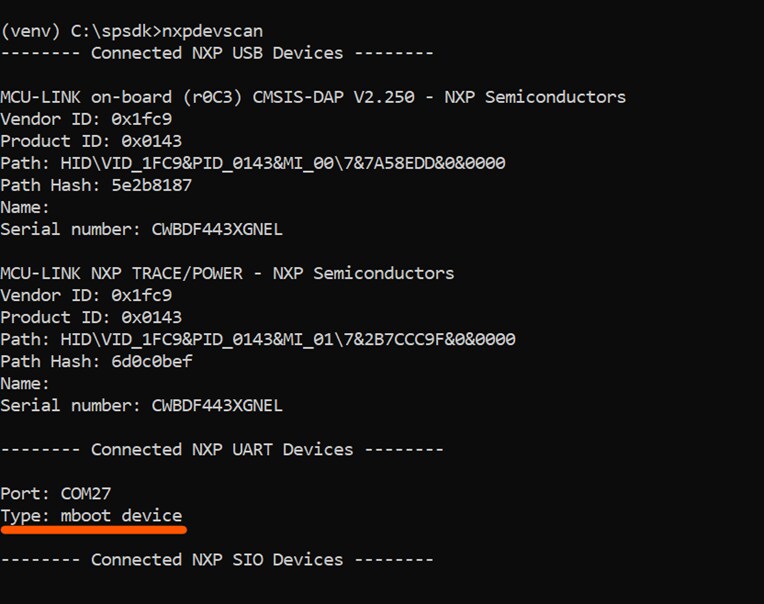

Once the device is connected you may check your devices available using SPSDK to find the COM port it is connected to
>> nxpdevscan
-
Then you may run the 'receive-sb-file' command to load the sb3 file
>> blhost -p COM27 receive-sb-file path_to_SDK\mcxw71_nbu_ble_hosted.sb3File Type
To update the NBU, you may use the SPSDK command line tool.
3.2 Build and Flash Application Using MCUXpresso IDE
The following steps will guide you through the hello_world demo application using MCUXpresso IDE for the Cortex-M33 application. The MCUXpresso IDE installation and the SDK for the MCXW-Series can be found at the Get Software section of this Getting Started guide.
Building and Running a Hello World Demo
- Find the Quickstart Panel in the lower left-hand corner
- Then, click on Import SDK example(s)

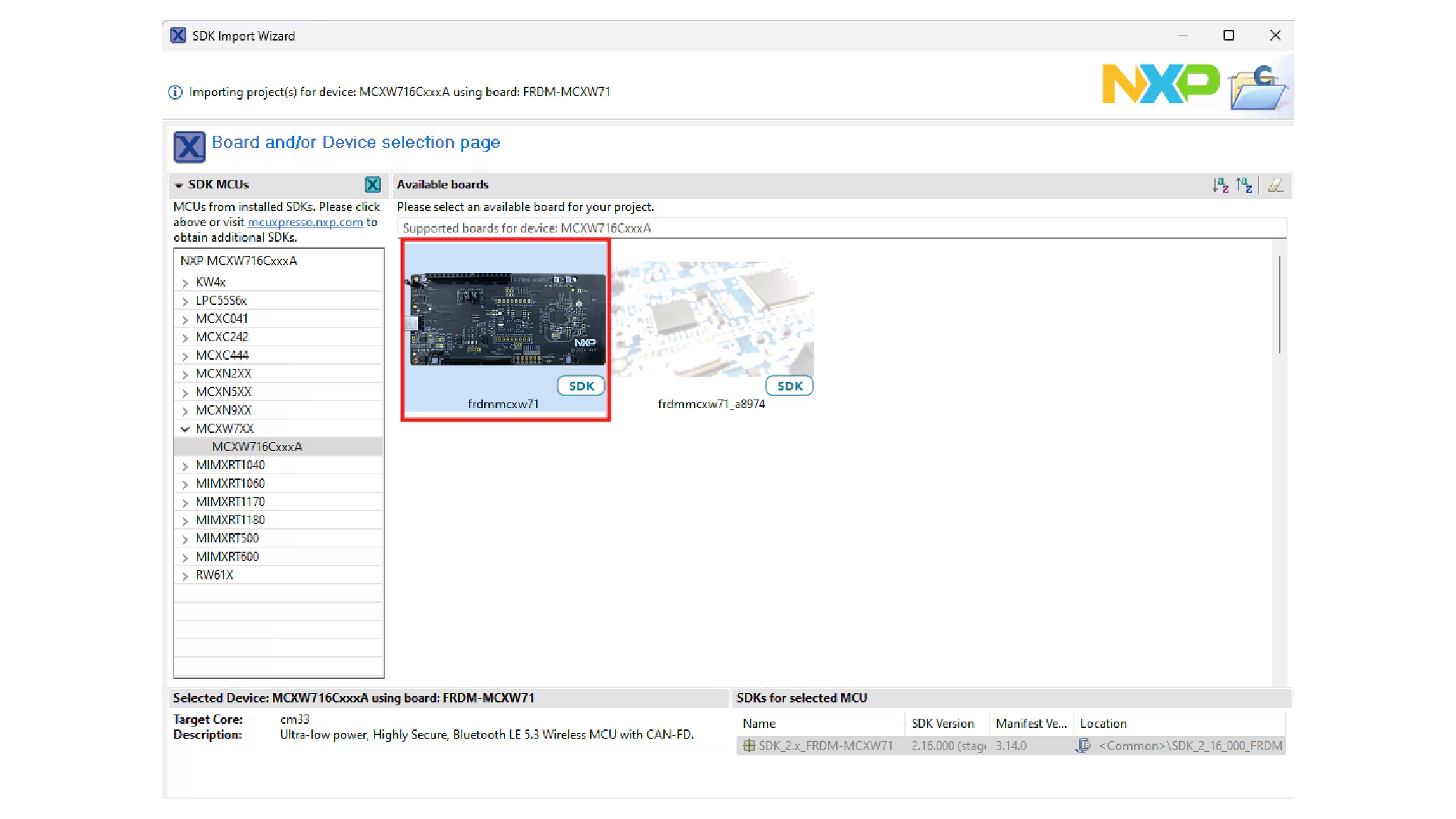

- Click on the FRDM MCXW-Series board to select an example that can run on that board, and then click Next
- Use the arrow button to expand the

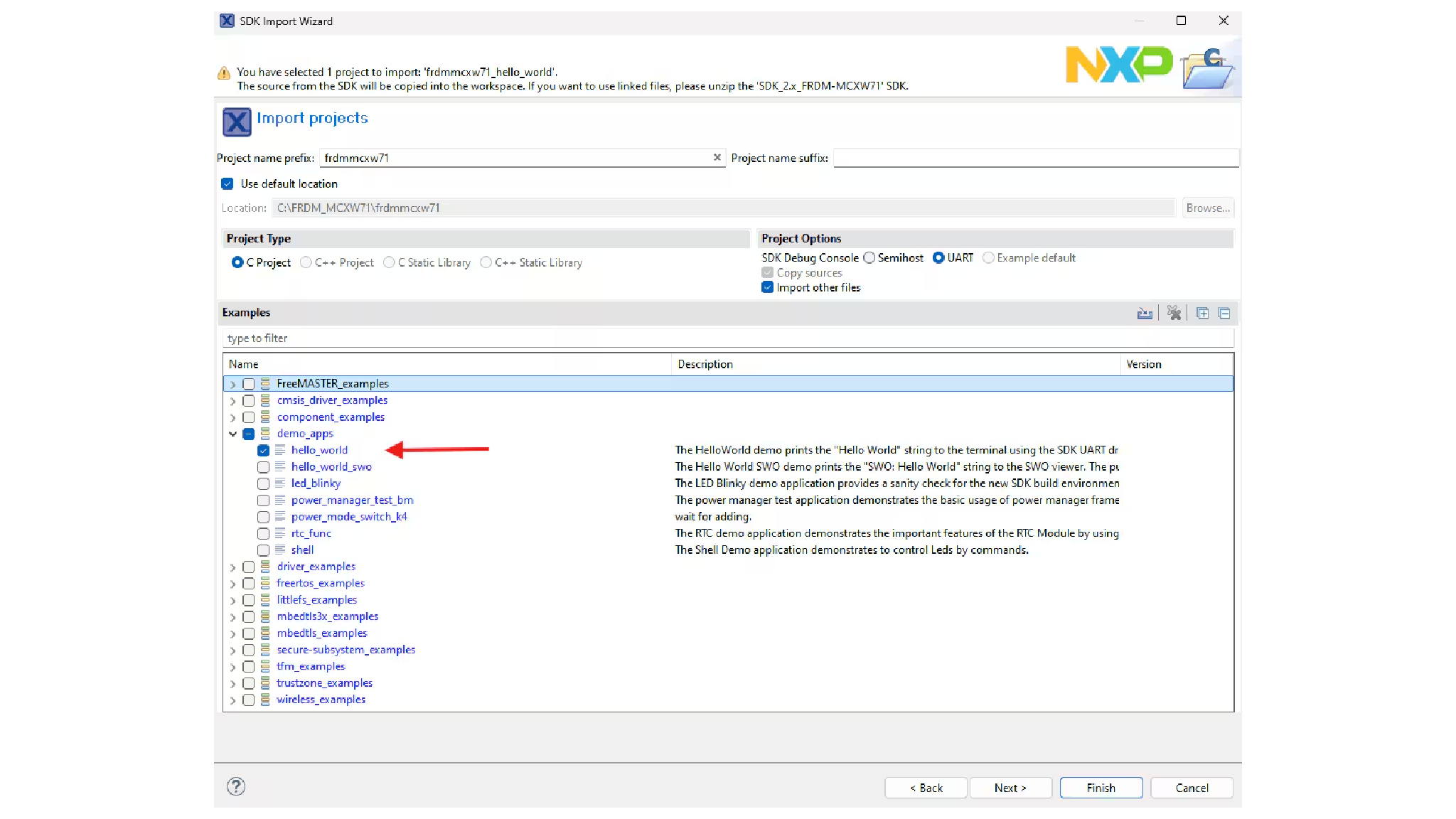

demo_appscategory, and then click the checkbox next tohello_worldto select that project. To use the UART for printing (instead of the default semihosting), select UART as the SDK Debug Console checkbox under the project options. Then, click on Finish - Select the project and build it by either clicking on the "Build" icon in the shortcuts provided above or by clicking "Build" in the Quickstart Panel

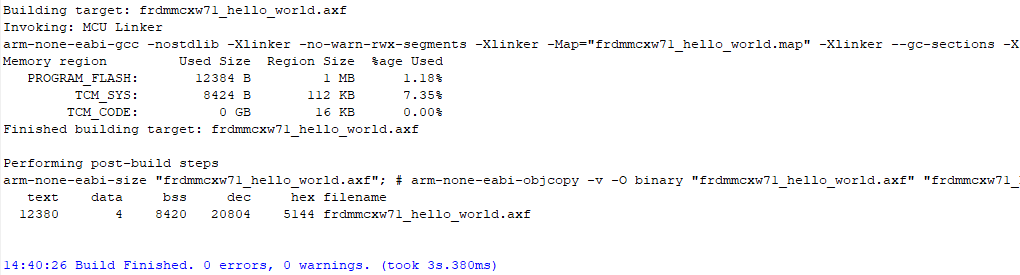

- The project should build without presenting any errors or warnings in the console
- Connect the board to your computer with the micro-USB to

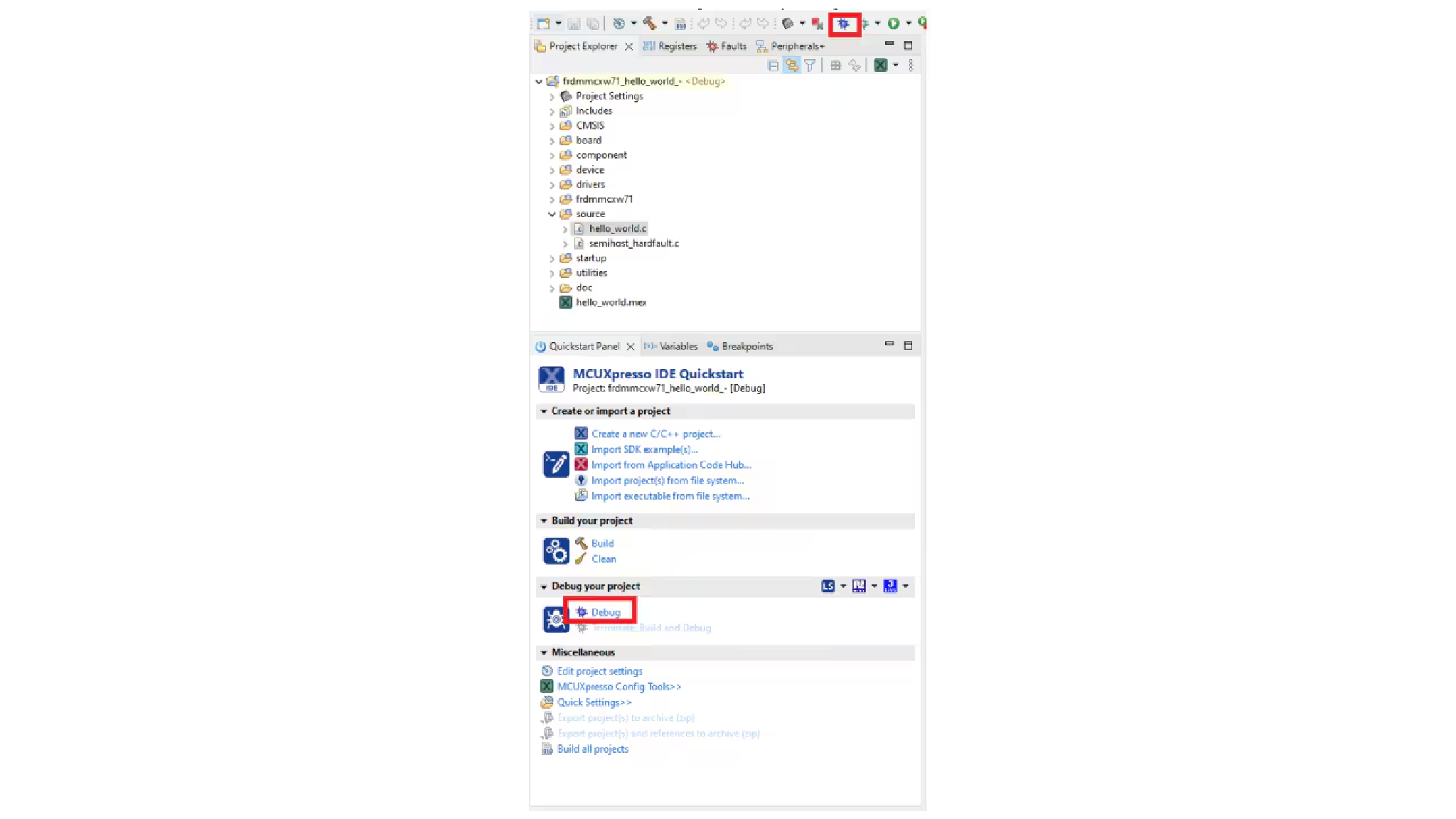

J10'MCU-LINK' port - Download the application to your board by either clicking on the "Debug" icon above or clicking on "Debug" in the Quickstart Panel

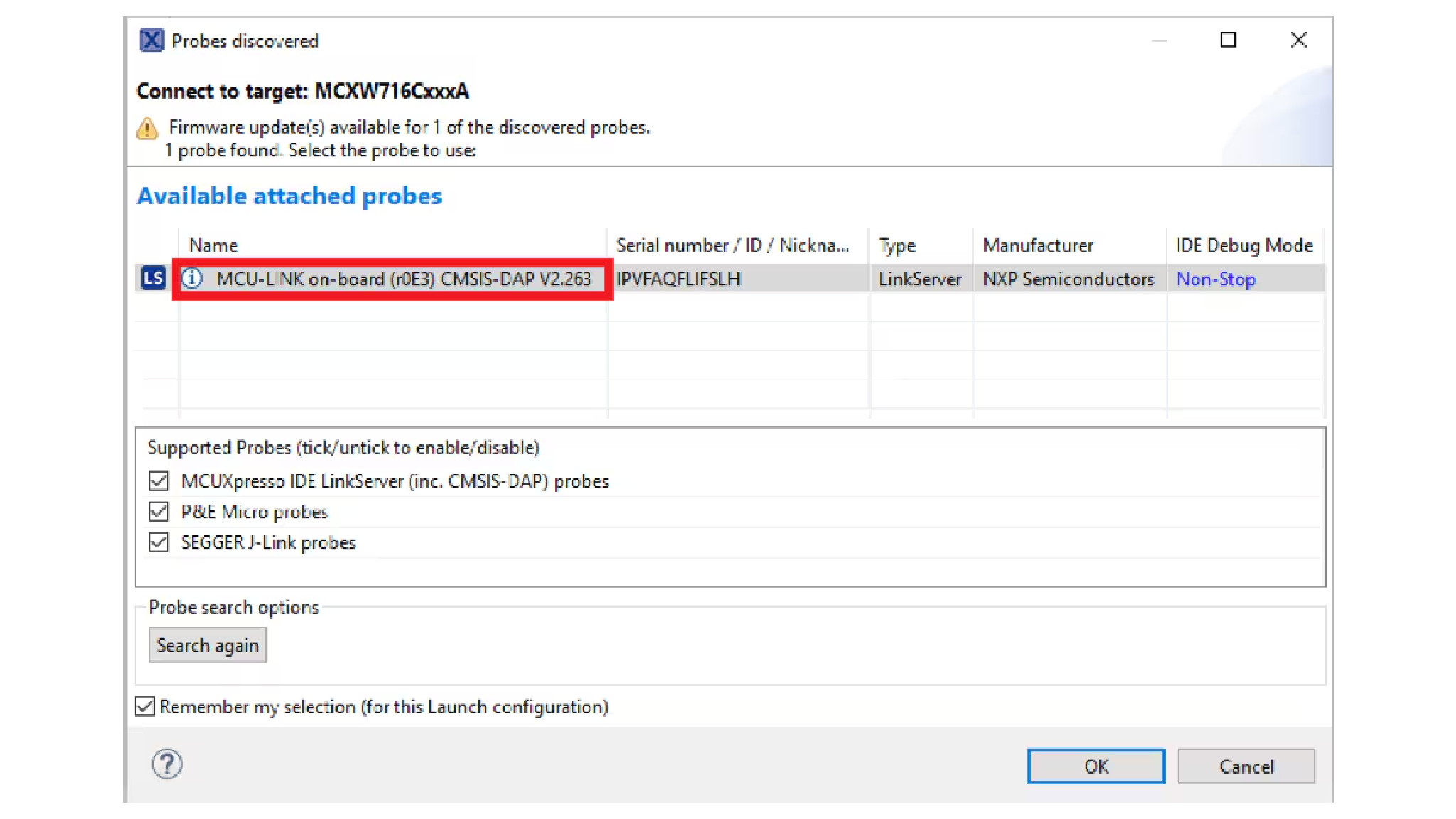

- Select the MCU-Link CMSIS-DAP debug probe
- Open up a serial terminal to be able to see the application's output. Select the "Terminal" window and press the "New terminal" icon
- Choose "Serial Terminal" and then set the UART settings to 115,200 baud rate, 8-bit data size, no parity and 1 stop bit. Press OK

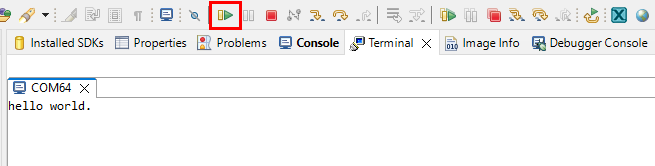

- Run the application by pressing the "Run" icon. See the output printed on the terminal
3.3 Build and Flash Application with Alternative Toolchains
MCUXpresso for Visual Studio Code (VS Code) provides an optimized embedded developer experience for code editing and development. Learn how to build and flash an application with VS Code.
Using a different toolchain?
This demo is also available for IAR and Keil.
4. Create
4.1 Clone an Example Project from MCUXpresso IDE
The following steps will guide you through the manipulation of the general-purpose outputs. The example sets up a TPM to generate three PWM signals and change the brightness of a LED.
- Find the Quickstart Panel in the lower left-hand corner and click on Import SDK example(s)
- Click on the FRDM-MCXW71 board to select that you want to import an example that can run on that board, and then click Next
- Use the arrow button to expand the
driver_examplescategory, then expand the TPM examples, click on the checkbox next tofrdmmcxw71_tpm_pwm_twochannelto select it. To use the UART for printing (instead of the default semihosting), select UART as the SDK Debug Console checkbox under the project options. Then, click on Finish - Click on the

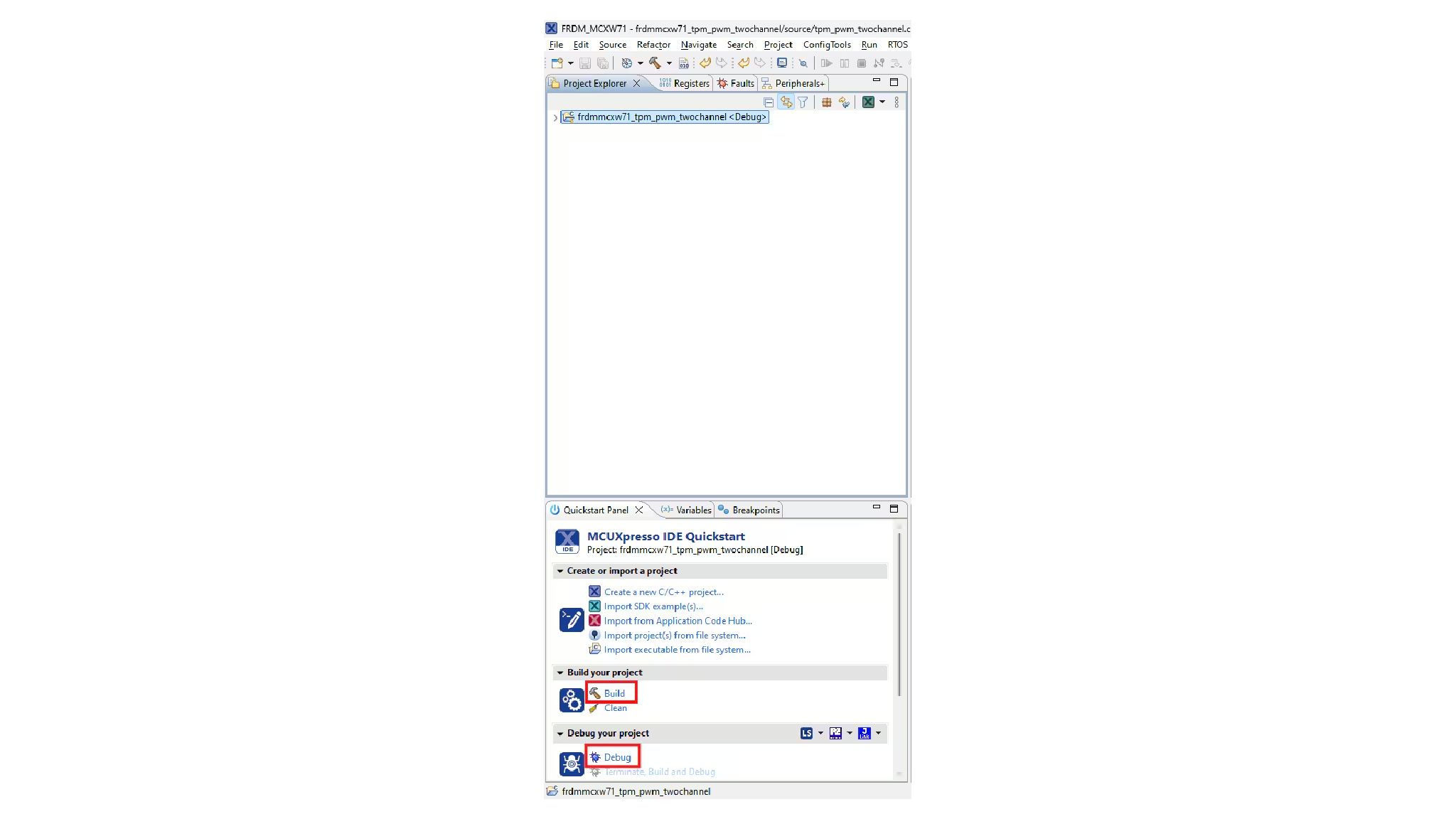

frdmmcxw71_tpm_pwm_twochannelproject in the Project Explorer View and build, compile and run the demo as described in the previous section - Choose "Serial Terminal" and then set the UART settings to 115,200 baud rate, 8-bit data size, no parity and 1 stop bit. Press OK. Enter any number between 0-9 to change the LED brightness
- Terminate the debug session
4.2 Clone an Example Project Using MCUXpresso Config Tools for 3rd Party IDE
The following steps will guide you through the manipulation of the general-purpose outputs. The example sets up a TPM to generate a PWM signal and change a LED brightness.
- Open the MCUXpresso Config Tools

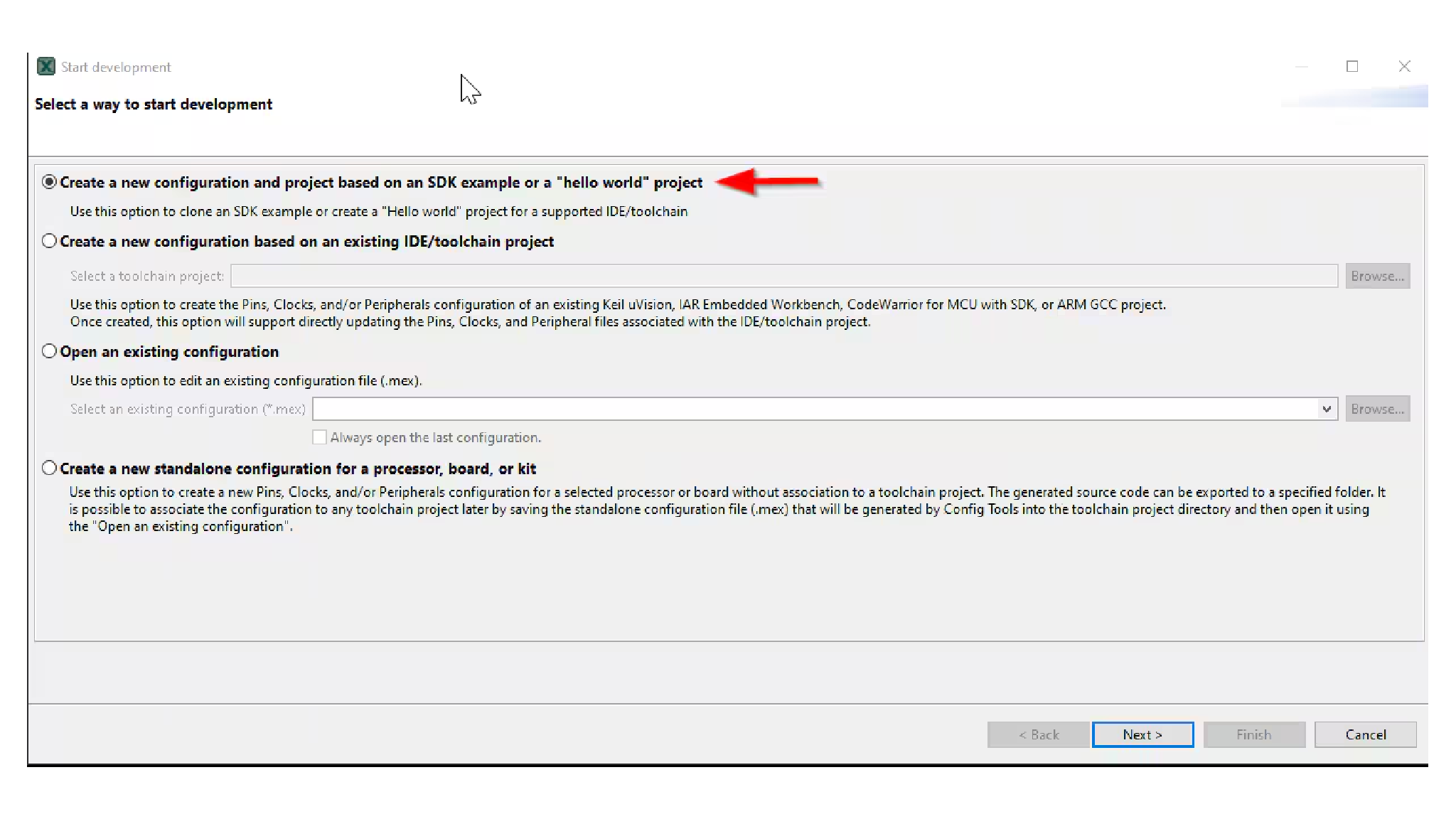

- In the wizard that comes up, select the "Create a new configuration based on an SDK example or "hello word" project" radio button and click Next

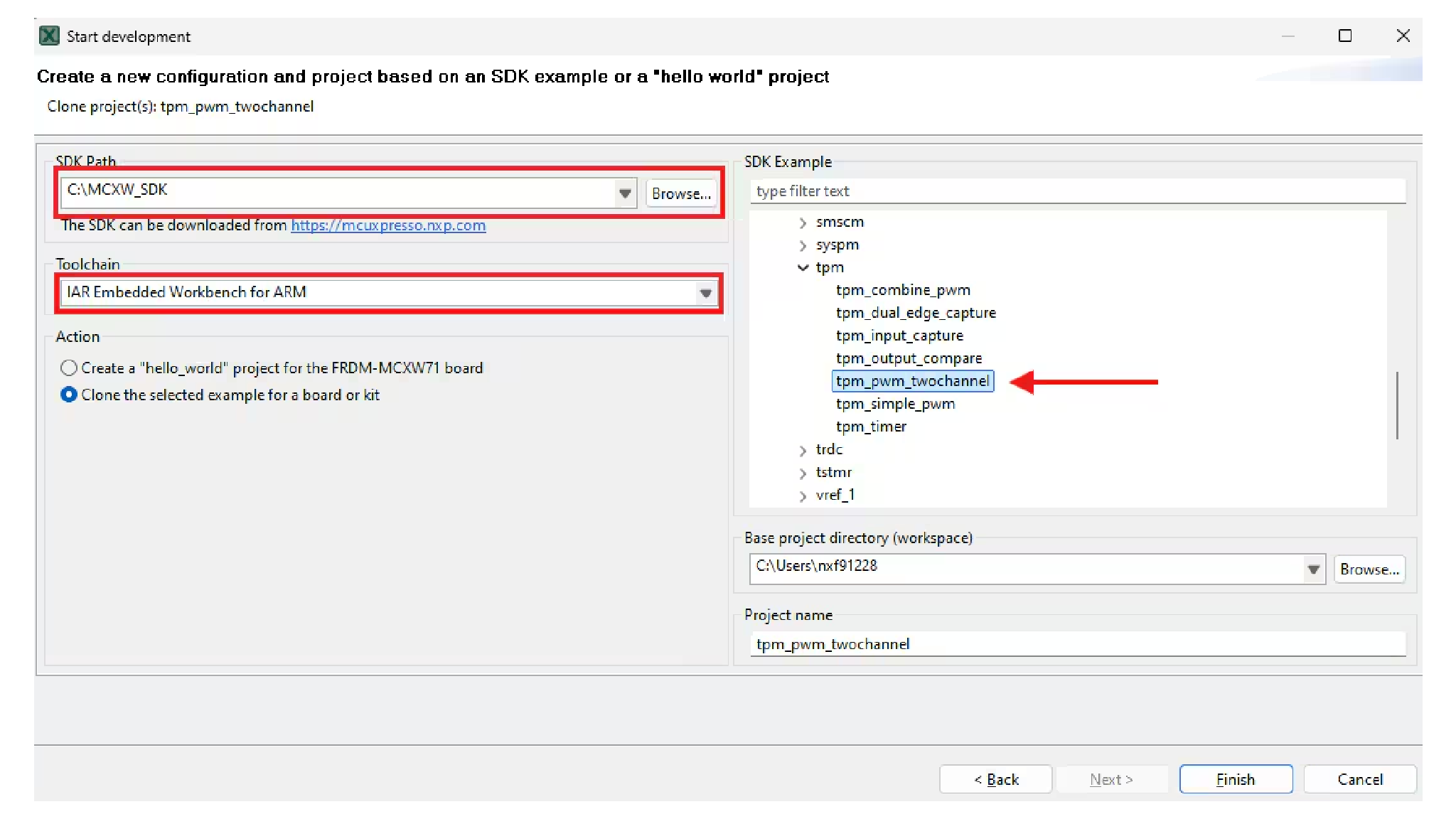

- On the next screen, select the location of the MCUXpresso SDK. The SDK package must be unzipped beforehand. Then, select the IDE that is being used. Note that only IDEs that were selected in the online SDK Builder when the SDK was built will be available. Click on "Clone the selected example for a board or kit". Then, select the project to clone. For this example, we want to use the
tpm_pwmexample. You can filter for this by typing "tpm" in the filter box and then selecting thefrdmmcxw71_tpm_pwm_twochannelexample project. You can then also specify where to clone the project and the name. Then, click on Finish - After cloning the example, go to the directory you selected and open the project for your IDE. Import, compile and run the project as done in previous sections
- You should see the RED and GREEN LED changing back and forth
- Terminate the debug session
4.3 Use MCUXpresso IDE Pins Tools

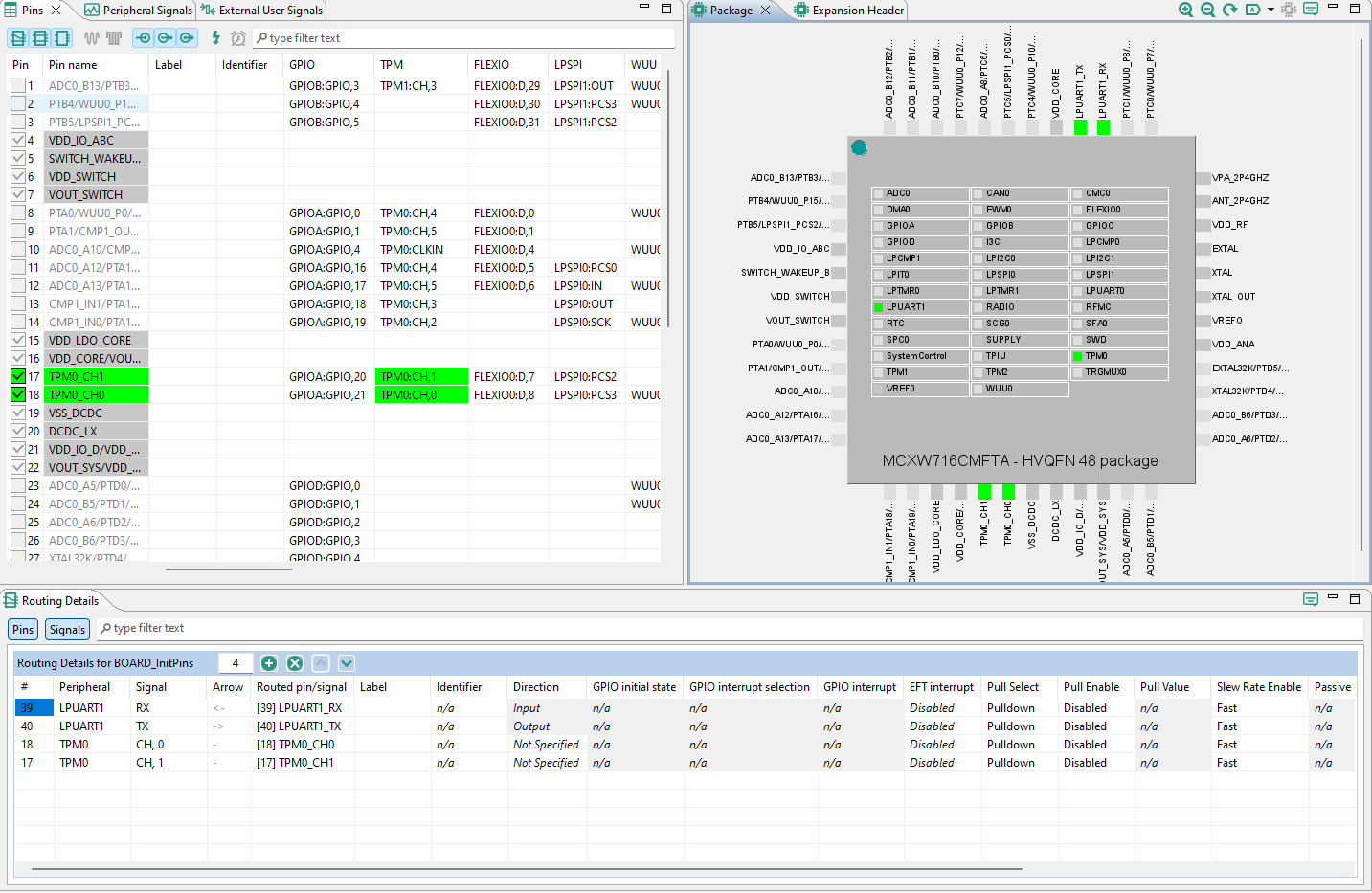

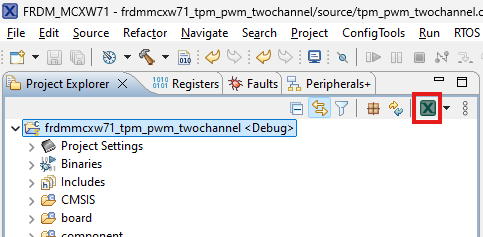

- Open the Pins Tool by selecting "Config Tools" on the top-right hand of the file explorer window and then select "Open Pins"

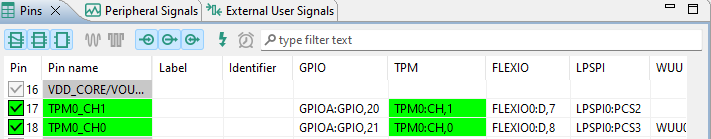

- The Pins Tool should now display the pin configuration for the TPM project
4.4 Use the Pins Tools to Modify the LED Routed Pin
- We'll use MCUXpresso IDE for the rest of the instructions, but the same steps can be done in MCUXpresso Config Tools for third party IDEs. In the Pins view deselect "Show dedicated pins" and "Show no routed pins" checkboxes to see only the routed pins. Routed pins have a check in a green box next to the pin name. The functions selected for each routed pin are highlighted in green
- In the current configuration,

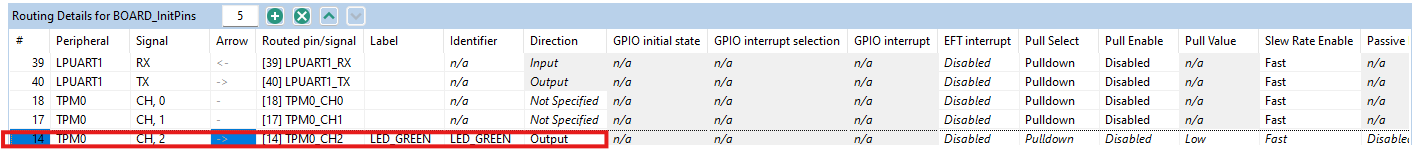

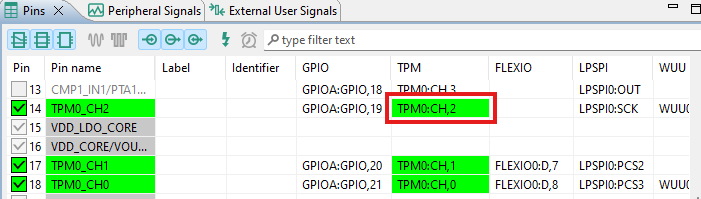

PTA21andPTA20are routed as the outputs of the TPM. Let's add the pin configuration to enable the GREEN LED - Select "Show no routed pins" to see the other options. To enable the GREEN LED, search for
PTA19and selectPTA19,0under the GPIO column - Next, configure the GPIO pin as an output in the "Routing Details" window
- Now, it's time to implement these changes into the project by exporting the new updated pin_mux.c and pin_mux.h files that are generated by the Pins Tool. Click on Update Project in the menu bar

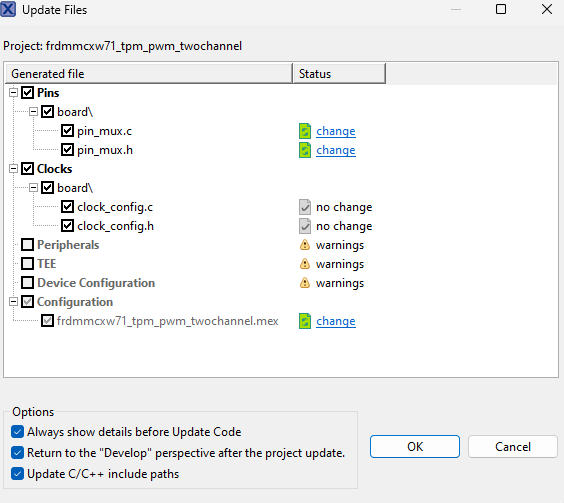

- The screen that pops up will show the files that are changing. You can click on "diff" to see the difference between the current file and the new file generated by the Pins Tool. Click on "OK" to overwrite the new files into your project

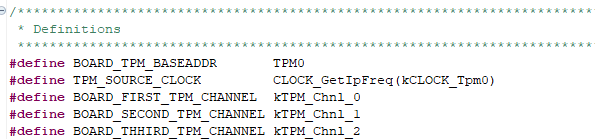

- Let's add some additional code to the example. Open

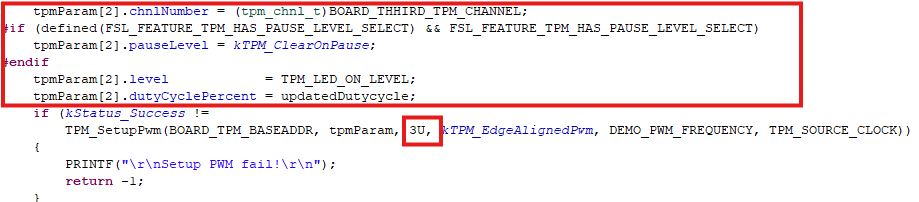

tpm_pwm_twochannel.cfile and add the following macros to initialize the GREEN LED - Add the macro to enable the use of the LED, instead of the TPM output, so that we can visualize the behavior on the board easily
- Add initialized structure for
TPM0_CH2 - In the main function, add the
TPM0_CH2control function inside the while loop - Build and download the project as done in the previous section
- Run the application. Choose "Serial Terminal" and then set the UART settings to 115,200 baud rate, 8-bit data size, no parity and 1 stop bit. Press OK. Enter any number between 0-9 to change the LED brightness. You can see the RGB_LED also changed the brightness, and the color should be white, which means that all three BLUE/GREEN/RED LEDs are on
- Terminate the debug session
5. MCUXpresso Developer Experience
Check out each of the following sections, to learn about the ecosystem provided for flexible prototyping and development. In the video below, we will introduce you to the FRDM platform, the full-featured EVK and the compatible shields for extended capabilities. In addition, we will walk you through our Application Code Hub portal where we provide numerous application examples through NXP's GitHub.
5.1 FRDM Platform, Full Feature EVK and Shields
For quick prototyping platforms, we offer both the low-cost FRDM platform and the full-featured EVK.
FRDM Development Boards come with standard form factor and headers, easy access to MCU I/Os, onboard MCU-Link debugger and a USB-C cable. Our full features evaluation kits include extended I/O and interface access, extendable with Wi-Fi and additional MCU-Link features. There are also many compatible Click Board and/or Arduino shields. For those that are supported with an Open CMSIS Pack example may be available on ACH, but if not many of them are easy to use via serial interface like I²C, SPI and UART, for which we provide drivers with examples in the MCUXpresso SDK.
5.2 Application Code Hub
The Application Code Hub further enhances our MCUXpresso Developer Experience by giving developers an interactive dashboard to quickly locate software. Visit the ACH today to start exploring or discover additional details and benefits of the new interactive Application Code Hub.
Software accessible from Application Code Hub is located in NXP’s GitHub repository so it can be easily accessed and cloned from that location directly.
5.3 Demo Walkthrough
The following demo walks us through importing a project from ACH using a system based on the FRDM platform with a motor control shield and a low-cost LCD. Although your evaluation board may differ from this system, the following steps can be replicated and used for all supported platforms.
System Design Guides
Terminal Application
MCUXpresso IDE Terminal Tutorial
The most recent versions of MCUXpresso IDE count with a terminal emulation application. This tool can be used to display information sent from your NXP development platform's virtual serial port.
- Open the MCUXpresso IDE

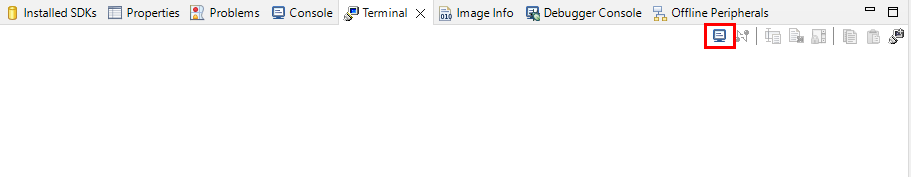

- Launch the MCUXpresso IDE terminal by clicking on the "Open a Terminal" button on the top of the IDE or press "Ctrl + Alt + Shift + T"

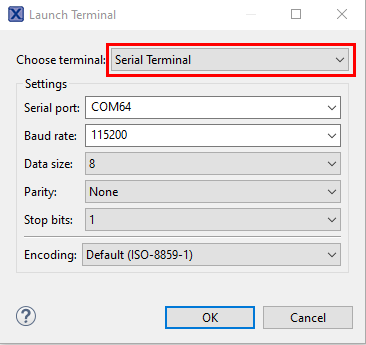

- Select Serial Terminal
- Configure the serial port settings (using the LPC-Link2 COM port number) to 115200 baud rate, 8 data bits, no parity and 1 stop bit, then press the "OK" button
- Verify that the connection is open. If connected, MCUXpresso IDE will look like the figure below at the Terminal view
- You're ready to go
Tera Term Tutorial
Tera Term is a very popular open source terminal emulation application. This program can be used to display information sent from your NXP development platform's virtual serial port.
- Download Tera Term from SourceForge. After the download, run the installer and then return to this webpage to continue
- Launch Tera Term. The first time it launches, it will show you the following dialog. Select the serial option. Assuming your board is plugged in, there should be a COM port automatically populated in the list
- Configure the serial port settings (using the COM port number identified earlier) to 115,200 baud rate, 8 data bits, no parity and 1 stop bit. To do this, go to Setup → Serial Port and change the settings
- Verify that the connection is open. If connected, Tera Term will show something like below in its title bar
PuTTY Tutorial
PuTTY is a popular terminal emulation application. This program can be used to display information sent from your NXP development platform's virtual serial port.
- Download PuTTY using the button below. After the download, run the installer and then return to this webpage to continue
- Launch PuTTY by either double clicking on the *.exe file you downloaded or from the Start menu, depending on the type of download you selected
- Configure In the window that launches, select the Serial radio button and enter the COM port number that you determined earlier. Also enter the baud rate, in this case 115,200
- Click Open to open the serial connection. Assuming the board is connected and you entered the correct COM port, the terminal window will open. If the configuration is not correct, PuTTY will alert you
- You're ready to go
Toolchains
Running a Demo Using IAR Embedded Workbench
The following steps will guide you through opening the hello_world application. The instructions for compiling and debugging the Cortex M33 core are covered in the instructions below.
Build an Example Application
Please use IAR Embedded Workbench for Arm version 9.50.1 or above.
- First, unzip the previously downloaded FRDM-MCXW71 SDK package
-
Open the desired example application workspace. Most example application workspace files can be located using the following path:
<install_dir>/boards/<sdk_board_name>/<example_type>/<application_name>/iar - Select the desired build target from the drop-down. For this example, select the "hello_world - debug" target

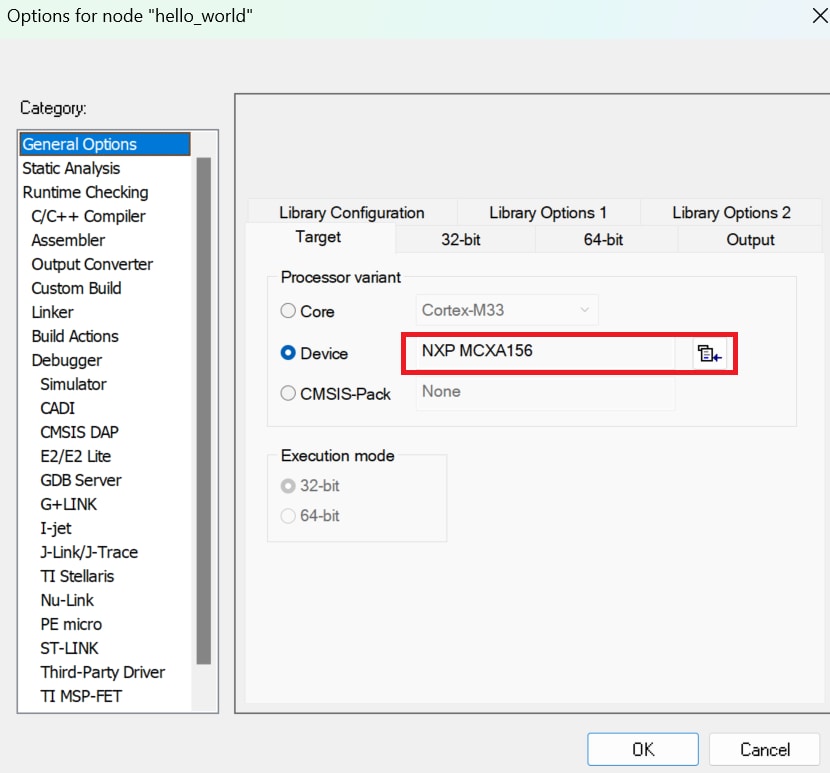

- Open the project properties by doing a right-click on the project and selecting "Options"

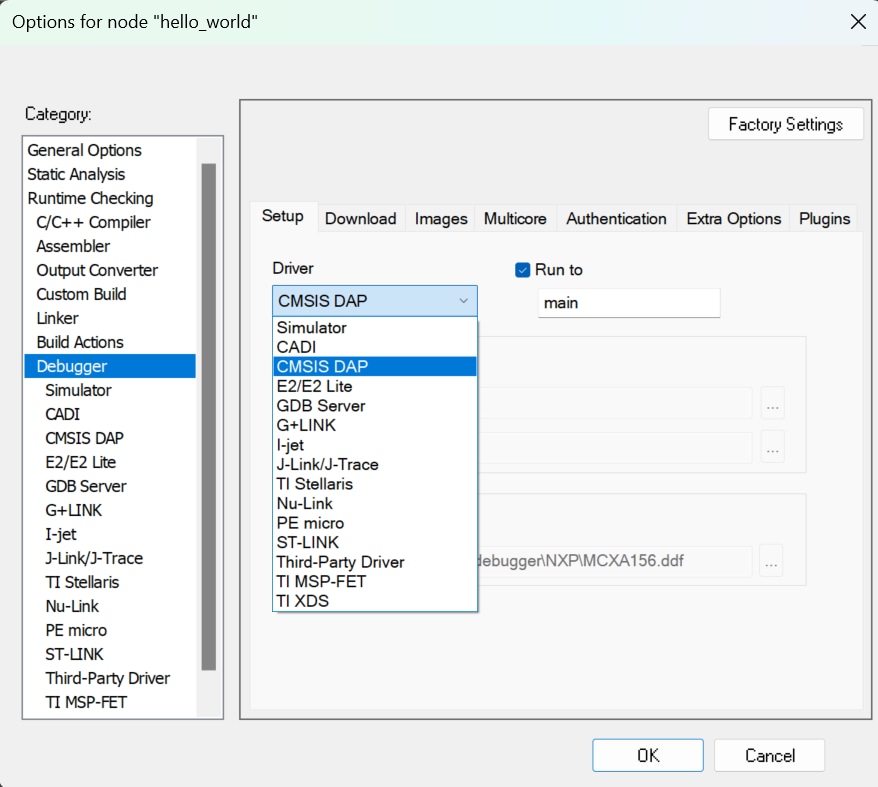

- Now, go to the "Debugger" section and change the debugger driver to CMSIS DAP. Press the OK button
- To build the application, click the "Make" button, highlighted in red below
- The build will complete without errors
Run an Example Application
- Connect the development platform to your PC via USB cable to
J10'MCU-Link' port - Click the "Download and Debug" button to download the application to the target
- The application is then downloaded to the target and automatically runs to the main() function
- Run the code by clicking the "Go" button to start the application
- The
hello_worldapplication is now running on the Cortex-M33
Running a Demo Using Keil® MDK/μVision®
Install CMSIS Device Pack
After the MDK tools are installed, Cortex® Microcontroller Software Interface Standard (CMSIS) device packs must be installed to fully support the device from a debug perspective. These packs include things such as memory map information, register definitions and flash programming algorithms. Follow these steps to install the appropriate CMSIS pack. Please use MDK-Arm Microcontroller Development Kit (Keil)® version 5.38.1 or above.
- Open the MDK IDE, which is called µVision. Inside the IDE, select the "Pack Installer" icon
- In the Pack Installer window, search for "MCXW" to bring up the MCXW71 family. Click on the MCXW7XX name, and then in the right-hand side you'll see the NXP:
MCXW71_DFPpack. Click on the "Install" button next to the pack. This process requires an internet connection to successfully complete - After the installation finishes, close the Pack Installer window and return to the µVision IDE
Build the Example Application
The following steps will guide you through opening the hello_world application. These steps may change slightly for other example applications as some of these applications may have additional layers of folders in their path.
If not already done, open the desired demo application workspace in:

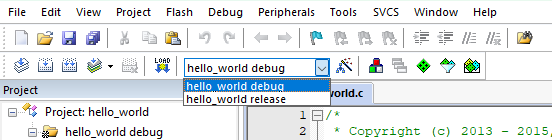

<install_dir>/boards/<sdk_board_name>/<example_type>/<application_name>/mdk- Select Debug configuration

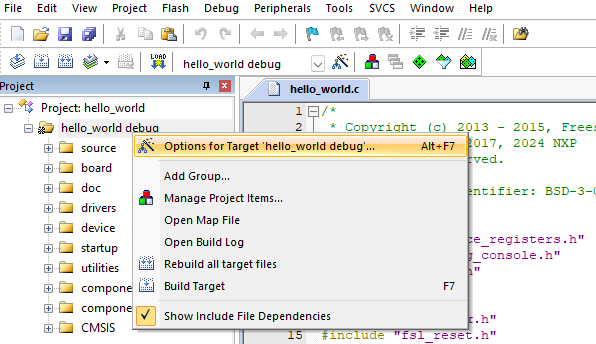

- Do right-click on the project and select the project options:

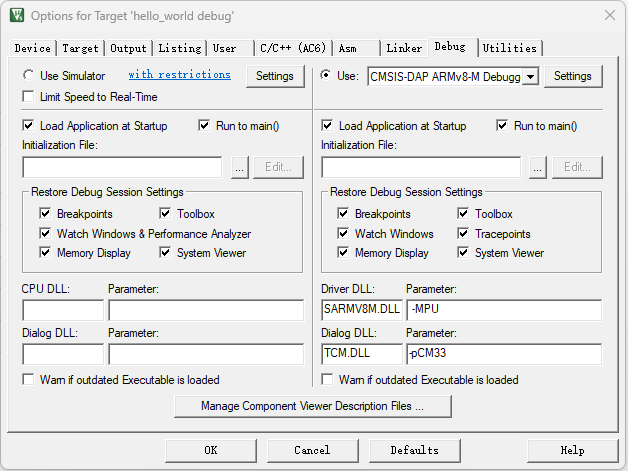

- Now, go to the Debug option and select CMSIS-DAP ARMv8-M Debugger. Click on the OK button
- To build the demo project, select the "Rebuild" button, highlighted in red

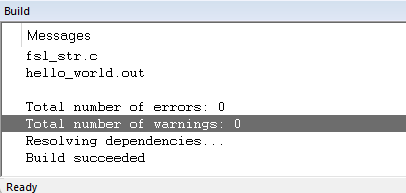

- The build will complete without errors
MCUXpresso for VS Code
Build and Run an Example with VS Code
Getting Started with MCX W Family
Prerequisites
This example is written for Windows 10, but MCUXpresso for Visual Studio Code can also be easily installed on MacOS and Linux.
- Follow software installation for MCUXpresso for VS Code extension
- Download or receive MCUXpresso SDK for FRDM-MCXW71 (
SDK_2_16_000_FRDM-MCXW71.zip)
Hardware Requirements
- FRDM-MCXW71
- 1 x Type-C USB Cable
Preparing the Hardware
This lab targets the NXP MCX W Evaluation Kit (FRDM). The kit provides a rich set of connected peripherals to help evaluate the device. It includes an onboard Debug Probe. The Debug Probe is pre-programmed with CMSIS-DAP firmware for this lab. To display debug messages in the examples, the lab connects to the COM port available through the same Debug Probe.
Open MCUXpresso for VS Code

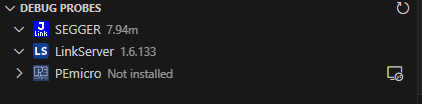

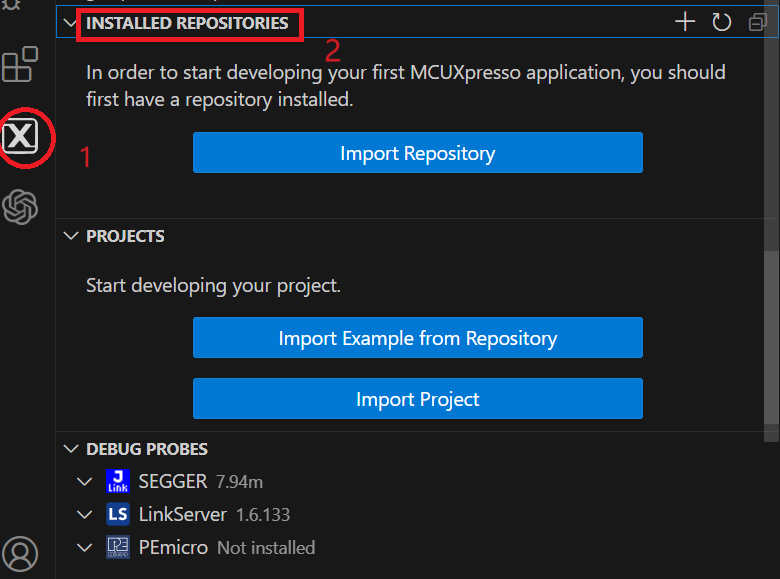

- Open Visual Studio Code, click on the MCUXpresso icon [x] on the left panel

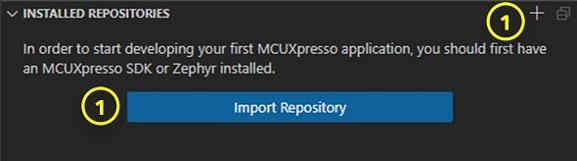

- To move forward with the next step click on "Installed Repositories" panel that will appear as shown in the picture below
Add NXP MCUXpresso SDK

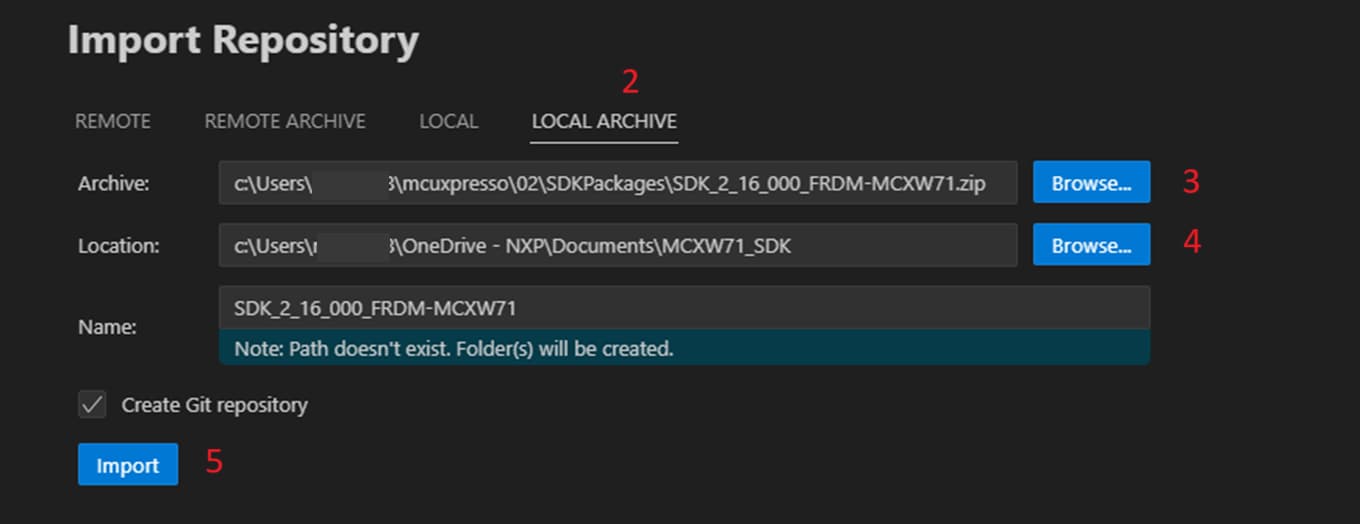

The NXP extension adds tools to help add software repositories into the Visual Studio Code workspace. The software repository can be provided from three sources:
- Remote Git URL
- NXP MCUXpresso SDK archive file
- Existing Git folder
This section will import the MCUXpresso SDK for the MCX W microcontroller using the SDK archive file provided as prerequisite.
- Click the "Import Repository" button in the "Installed Repositories" panel. A button is visible before the first repository is added. In the future, users could click the '+' symbol in the top right of the Installed Repositories section for adding repositories
- Select the "Local Archive" option to import the provided MCX W SDK archive file
- Browse to the location of the MCX W SDK file for the "Archive" entry (in the Downloads folder)
- Browse to a folder to be a common "Destination" to store SDKs (i.e.
C:\Users\NXP\Desktop\VSCODE_SDK). Enter a name for the new SDK, in this case:SDK_2_16_000_FRDM-MCXW71 - Click Import. The MCX W SDK is extracted to the local folder and added to your "Installed Repositories" panel
Import Example Project
The NXP extension provides a "Projects" pane to help developers import projects into their workspace. The user has three sources for importing a new project: a Repository; an existing local project; or an archived project. This section will import an MCX W example from the SDK just added to the "Installed Repositories" panel.
- Click Import Example from Repository. A button is visible when no projects are in the current workspace. In the future, the symbols in the top right of the Projects section can be used to import additional projects. Click the '[II\]' symbol to add Repository Examples. Click the '[+]' symbol to import projects on the PC that were created earlier by the MCUXpresso for VS Code extension. Click the '[ ]' symbol to import a project in an archive file created earlier by the MCUXpresso for VS Code extension

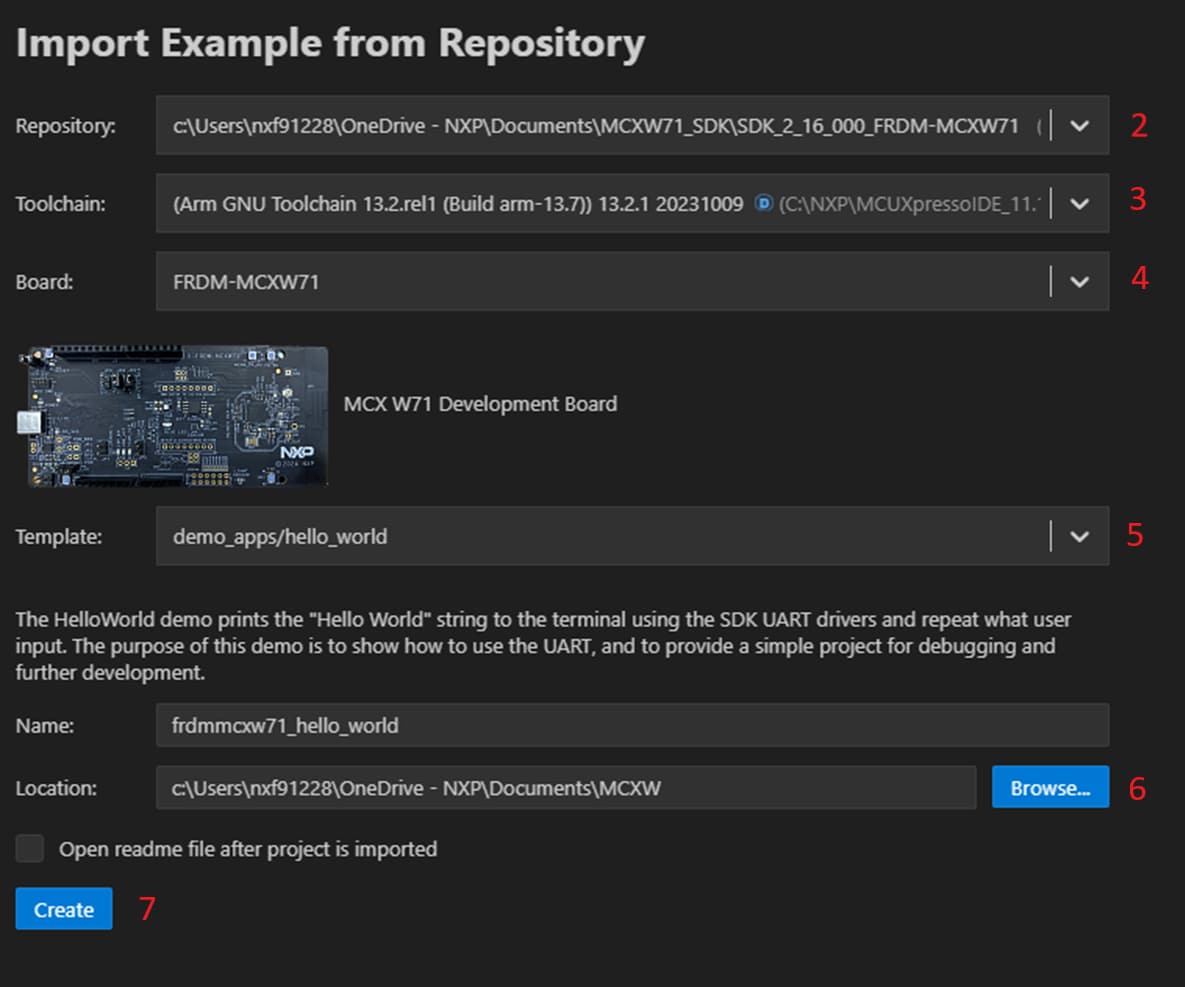

- Fill out the appropriate information in the "Import Example from Repository" window. Click "Choose a Repository" to select from a list of available/installed repositories. Select
SDK_2_16_000_FRDM-MCXW71 - Click "Choose a Toolchain" to select from a list of available build tools. The MCUXpresso Installer provides a default option of
gcc-arm-none-eabi-13.2.1. The tool also looks in other default locations for MCUXpresso IDE installations. These may be listed as alternative options for GNU Arm Toolchains. Select thegcc-arm-none-eabi-13.2.1option - Click "Choose a Board" to view the boards supported in the selected repository. A longer list of boards can be filtered by typing in the available selection area. Select "FRDM-MCXW71". After a board is selected, a picture of the board will be displayed to help confirm the correct selection
- Click "Choose a Template" to show a list of available examples in the selected repository. The long list of examples can be filtered by typing in the available selection area (i.e. type Hello to filter Hello World examples). Select
demo_apps/hello_world - Click Browse for the "Location" field. Choose a folder location for new projects to be created
- Click "Create". This will add a new "Hello World" example for the MCX W to your "Projects" panel
Build Project
The build process is configured when the project is created. The user can initiate the build from an icon in the project view. To the right of the project name, the build icon will start the build for that project. You need to return to the MCUXpresso extension perspective by clicking the “X” icon in the left navigation pane. You may still be in the Explorer perspective from prior section.
- Click the build icon to the right of the

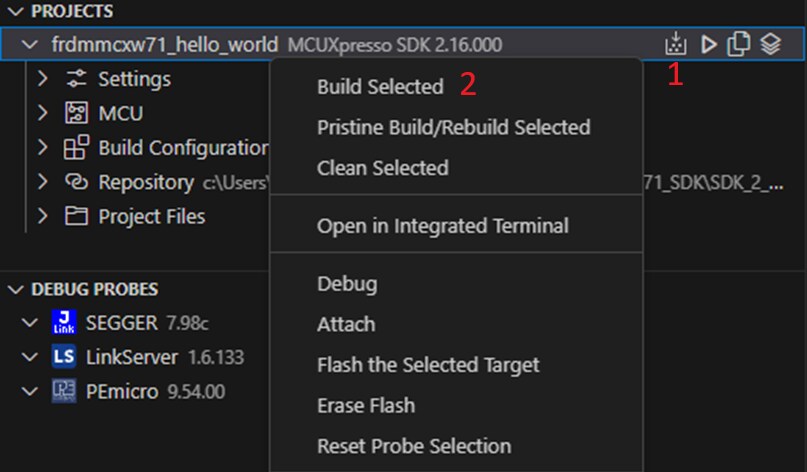

hello_worldproject. This will start the build process. The "Output" terminal tab at the bottom of the screen displays the build progress - Alternatively, you can right-click on the project name to display additional build options. Clicking "Rebuild" or "Clean Build" will remove build artifacts from prior builds to allow the project to be built again. Otherwise, clicking "Build Selected" will result in an output of "no work to do"
The build process should complete with an exit code of 0… Success!
Flash and Debug Project
MCUXpresso for Visual Studio Code allows users to program and debug projects for NXP microcontrollers. These steps require that Debug Probe drivers are properly installed and configured. MCUXpresso for Visual Studio Code allows the use of popular debug probes from NXP, SEGGER and PEmicro. MCUXpresso Installer included the option to properly install support for the different debug probes.
The built project output binary is flashed to the target board before launching a debug session. The Debug session provides controls and views to help the developer analyze the operation of the project. The following steps will show how to successfully flash and program the MCX W FRDM Evaluation Kit.
- Confirm that the onboard debug probe is connected to the PC USB port
- Click the "Refresh" arrow in the "Debug Probes" pane to detect connected Debug Probes

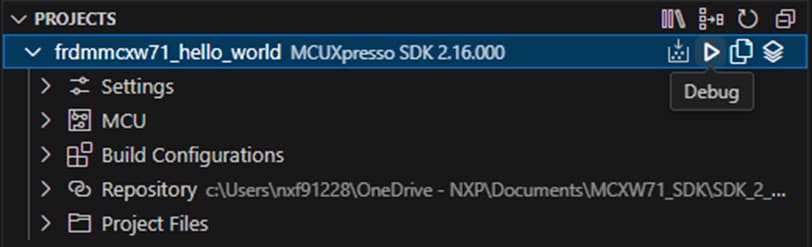

Starting a Debug session begins by programming the target device with the built project image. Click the common "Play" triangle icon to the right of the selected project

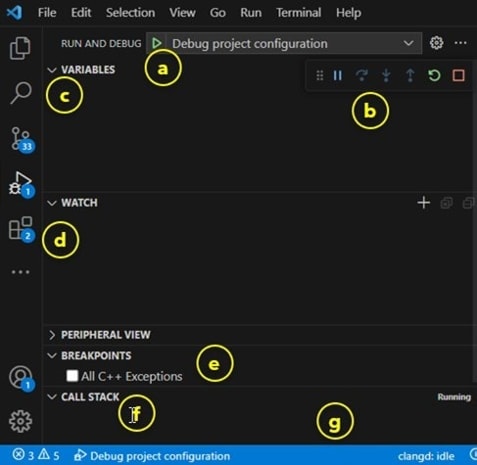

Visual Studio Code Debug sessions provide a different "Run and Debug" perspective for the user. This is reflected by the "Bug" icon in the primary left navigation pane now being highlighted. Key tools are labeled in the following image:
- Start Debug: Another place to launch debug
- Debug Controls: Pause; Step Over; Step Into; Step Over; Restart; Stop
- Variables: Locals and Registers
- Watch: Add expressions to continue to monitor
- Breakpoints: Add, Toggle and View targeted code
- Call Stack: List of active subroutines in the program
- Status Ribbon: Bottom of screen changes status text and/or color to orange
Debugger Firmware
SEGGER J-Link Tutorial

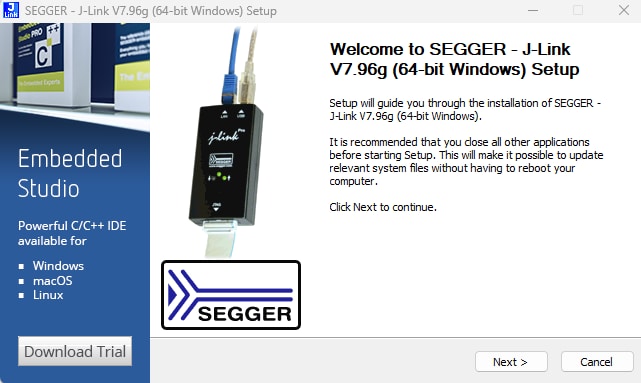

- Download J-Link Software. Enter to SEGGER download page: SEGGER Downloads
- Expand "J-Link Software and Documentation Pack" section
-
Select the software that matches your OS and download the newest version
Accept the Terms and download the software
- Execute the
.exefile you just downloaded by doing double-click. Follow the setup instructions until the J-Link installation is complete
- You're ready to go
On this page
- 2.1
Install Your Toolchain
- 2.2
Jump Start Your Design with the MCUXpresso SDK
- 2.3
MCUXpresso Config Tools
- 2.4
Programming and Provisioning Tools
- 2.5
Install Drivers
- 2.6
Secure Provisioning Command Line Tool (SPSDK)
- 3.1
Updating NBU for Wireless Examples
- 3.2
Build and Flash Application Using MCUXpresso IDE
- 3.3
Build and Flash Application with Alternative Toolchains
