QorIQ® P1 MPU Tower® System Module

TWR-P1025 Active

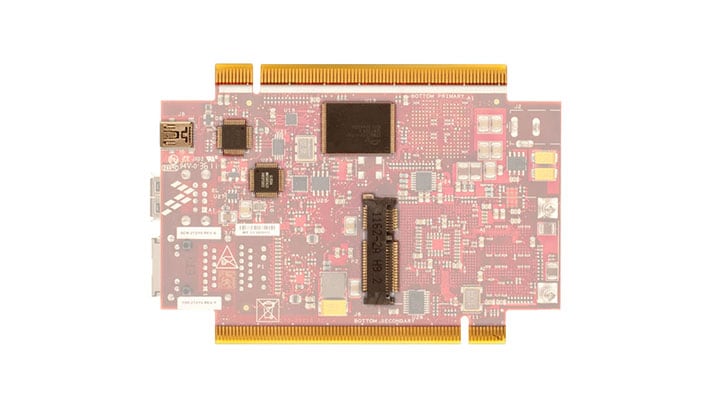

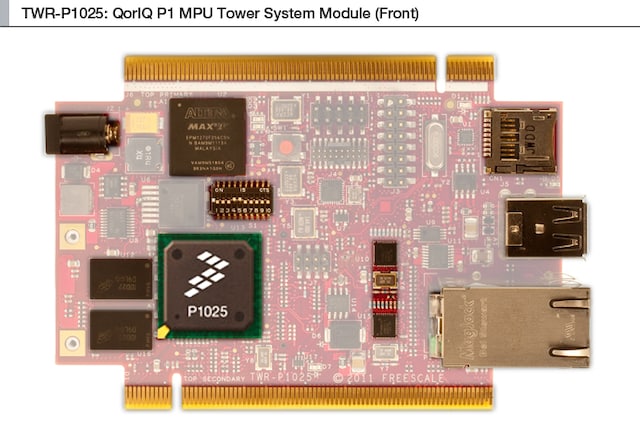

Roll over image to zoom in

The TWR-P1025 module is part of the Tower® System portfolio, a modular development platform that enables rapid prototyping and tool re-use through reconfigurable hardware.

  • The TWR-P1025 processor module also can be operated as a standalone single board computer (SBC) development platform
  • Enabled with the Linux® SDK 1.2 BSP, OpenWRT software stack, MQX™ RTOS and QNX RTOS

Product Details

Features

Processor

  • QorIQ® P1025 dual-core processor

Memory

  • 512 MB of DDR3 memory
  • Boot from NOR flash

Connectivity

  • Two RGMII Gigabit Ethernet interfaces
  • One PCIe interface x1 (mini-PCIe+USB)
  • Two USB 2.0 interfaces
  • Two UART interfaces (via mini-USB)
  • QE UART header (provides RS485 connectivity via interface card)
  • JTAG 14-pin header

Buy Options

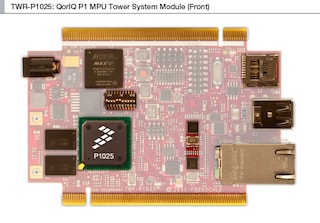

TWR-P1025-Image

Click to expand

  • TWR-P1025
    Active

  • Tower System, QorIQ MPU Module, P1025, Single Board Computer.

    • Part Number TWR-P1025 contains:
      • One TWR-P1025 board
      • 5V Power Supply
      • DVD includes collateral
      • Quick Start Guide document
