Features

Functionality

Proven business-friendly open source software with available enterprise support: PX4, QGroundControl
Zephyr + Cognipilot supporting real-time vehicle control rovers, AGV and other robots
Airframes: FMU configuration supporting quadcopters, hexacopters, VTOL, etc.
Open and flexible development - suitable for bare bones or other vehicle stacks. Add companion computer with vision such as NavQPlus and peripherals such as GPS, RTK-GPS, UWB, telemetry radios, LTE, Bluetooth® low energy, radar, ultrasonic, lidar
Triple CAN-FD with Signal improvement CAN Phys (SIC)
High-bandwidth automotive two-wire 100Base-T1 Ethernet
RC radio S-BUS interface. Bidirectional D-Shot PWM supported
USB-C, I2C, SPI, Dual GPS, interfaces
Multiple UARTS for telemetry radios and console
12 PWM outputs
RC radio interface with D-Shot
PX4 V6X-RT (V6X) compliant form factor

Support and Software

Support for Zephyr RTOS and CogniPilot vehicle control software
Supports PX4 / Pixhawk open-source flight control software
NXP MCUXpresso SDK supporting including rich library of applications and examples including TSN Ethernet Stack
Supports RTK GPS and multitude of other sensors
May be used to participate in HoverGames.com, or as a robotics development platform

Buy Options

Click to expand

MR-VMU-RT1176
Active

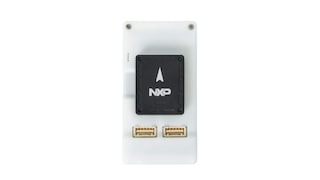

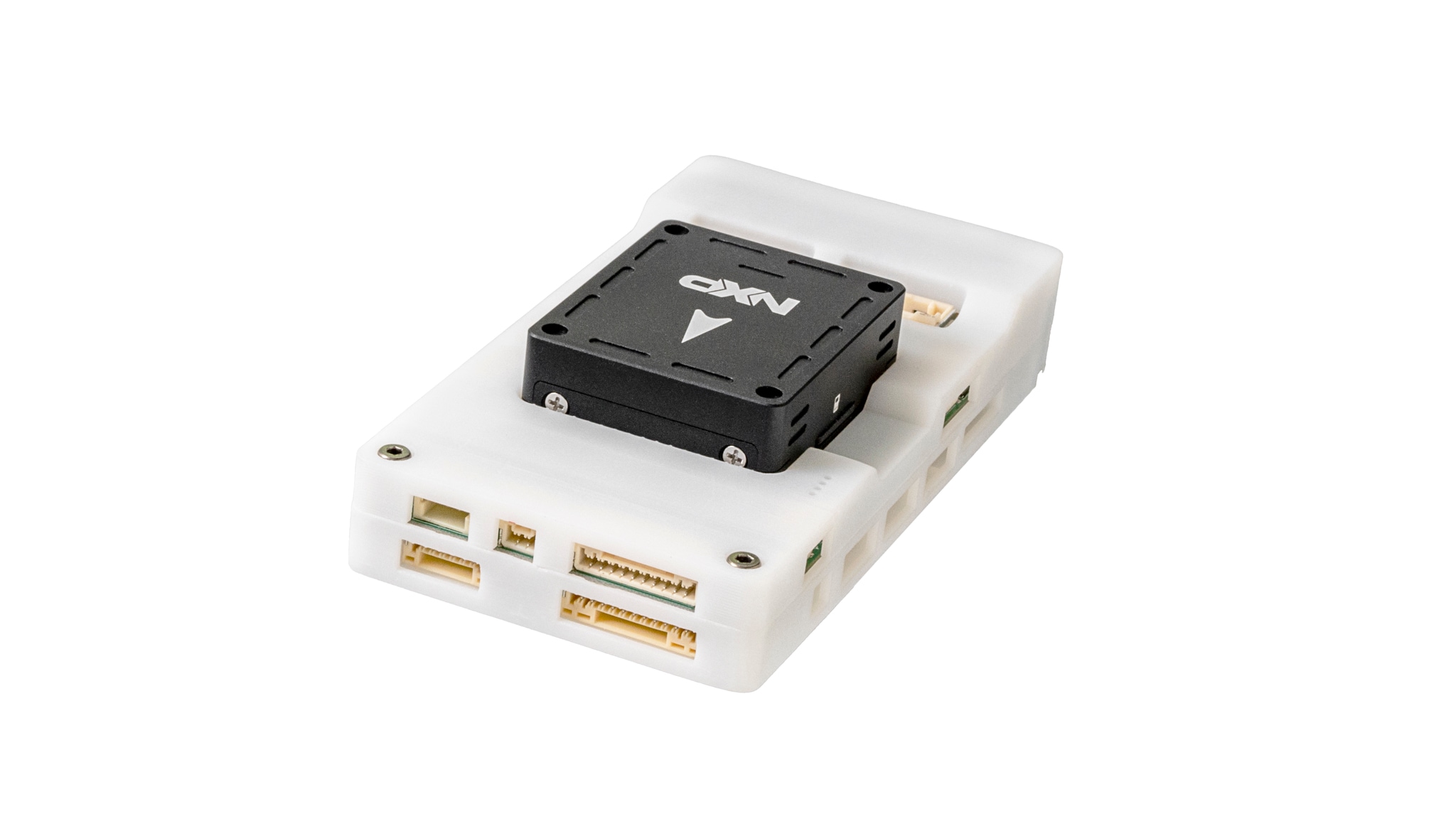

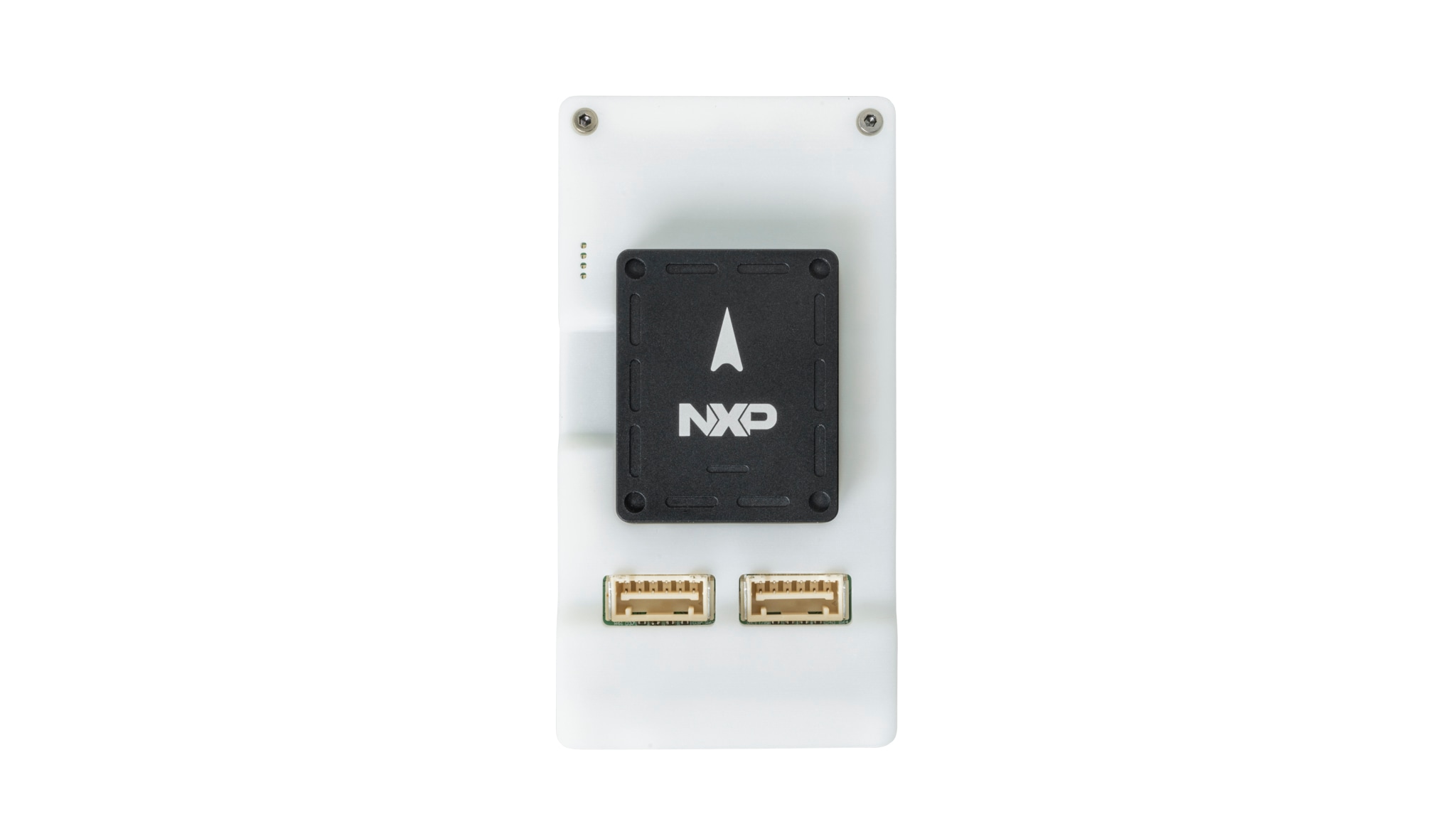

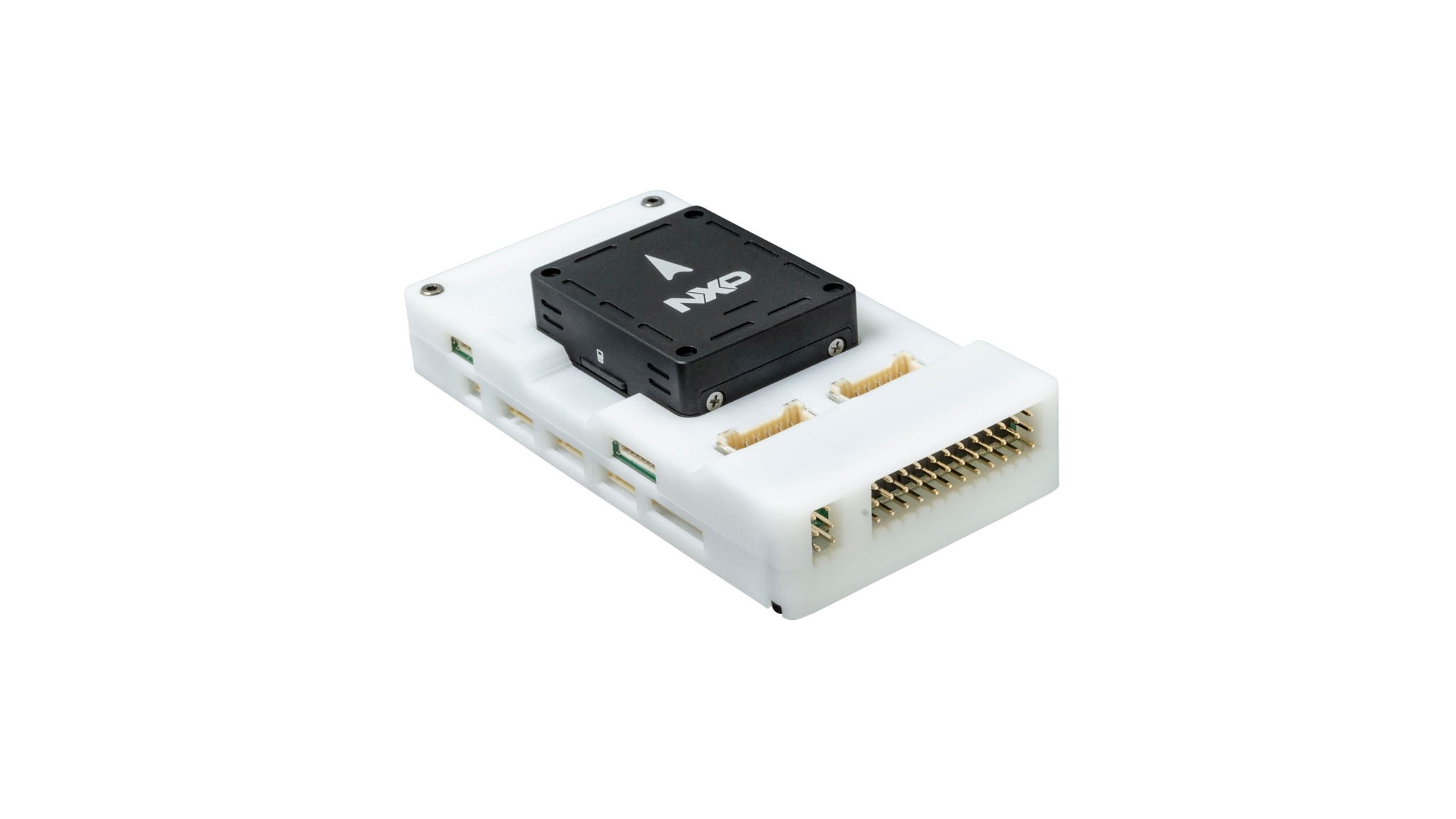

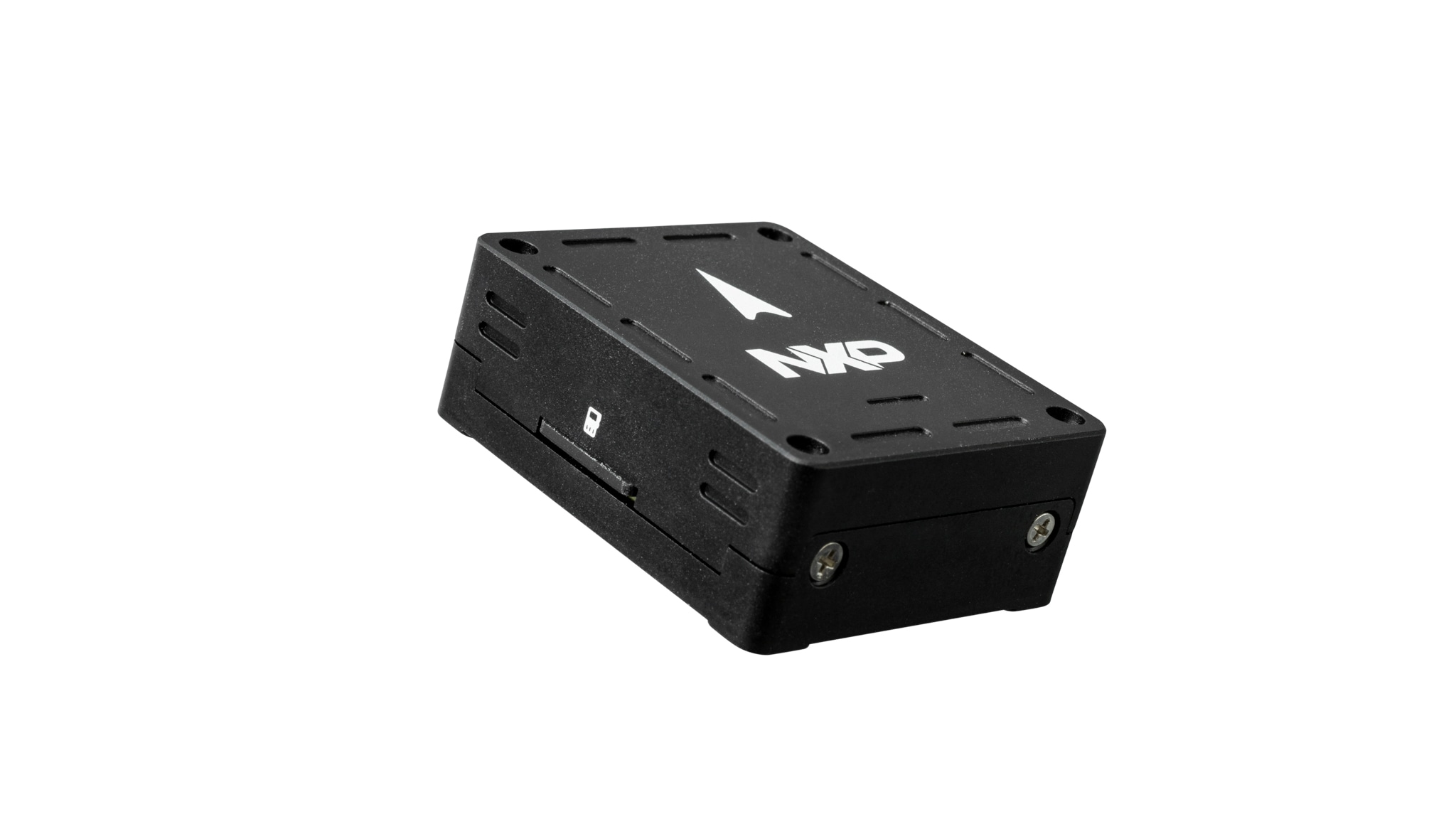

Real-Time Vehicle Management Unit (VMU) .
Kit Contains
- MR-FMUM-RT117x
- MR-FMUM-VxX-RT117X-BASE-T1
- MR-VMU-IMU
- Power Module
- Accessory cabling set

$300.00 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 1
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

X-MR-VMU-RT1176DBG
Active
Real-Time Vehicle Management Unit (VMU) .
Kit Contains
- MR-VMU-RT1176 + debugger MCU-LINK-MR

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

MCU-LINK-MR
Active
MCU-LINK-MR Debug Probe.

$19.00 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 23
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

HGD-TELEM433
Active

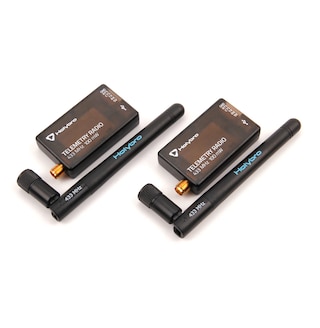

Telemetry Radio for HoverGames Drone, 433Mhz (EU) .
