DY1212W-4856 TFT LCD panel with LVDS interface

DY1212W-4856 Active

Roll over image to zoom in

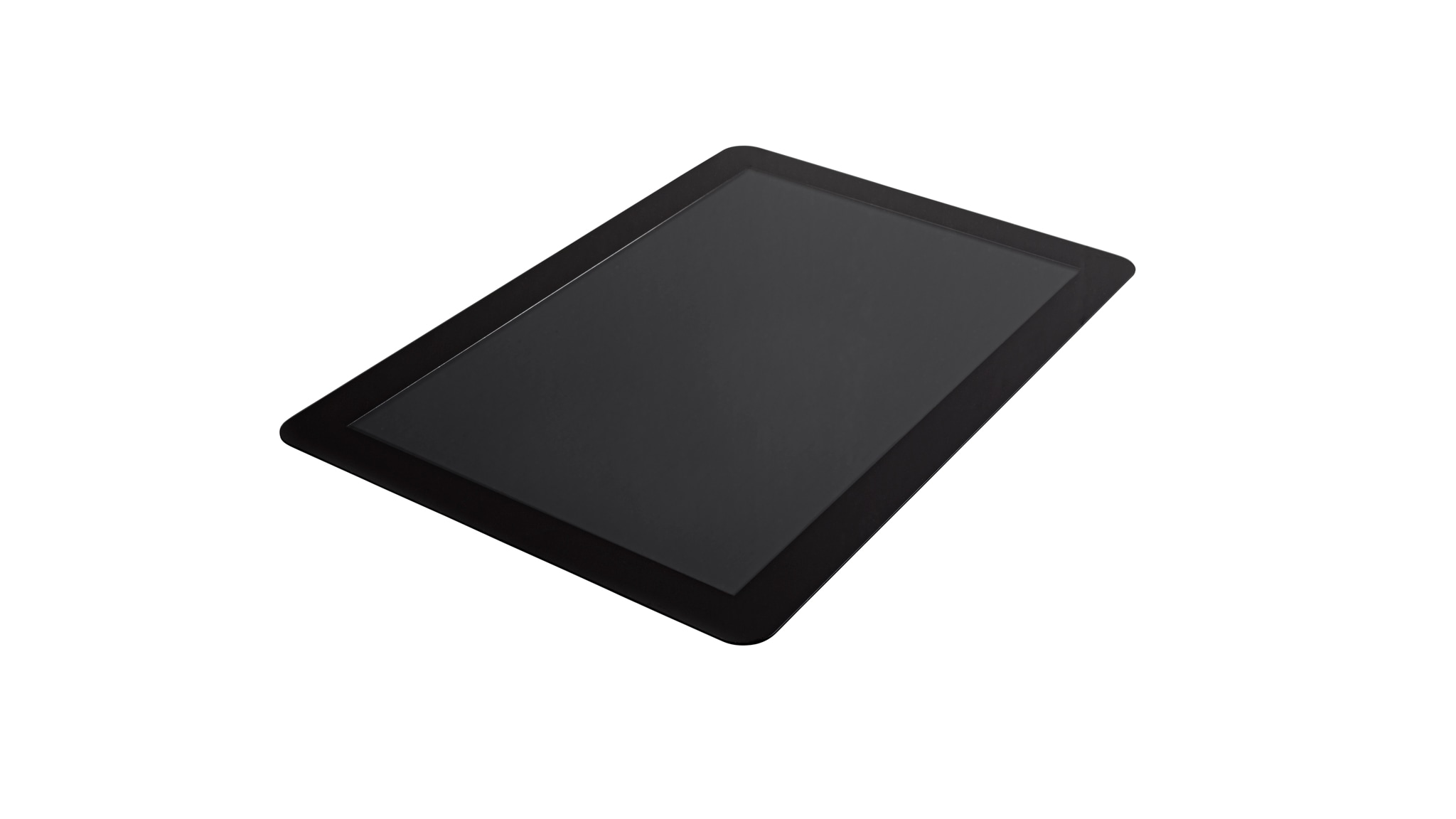

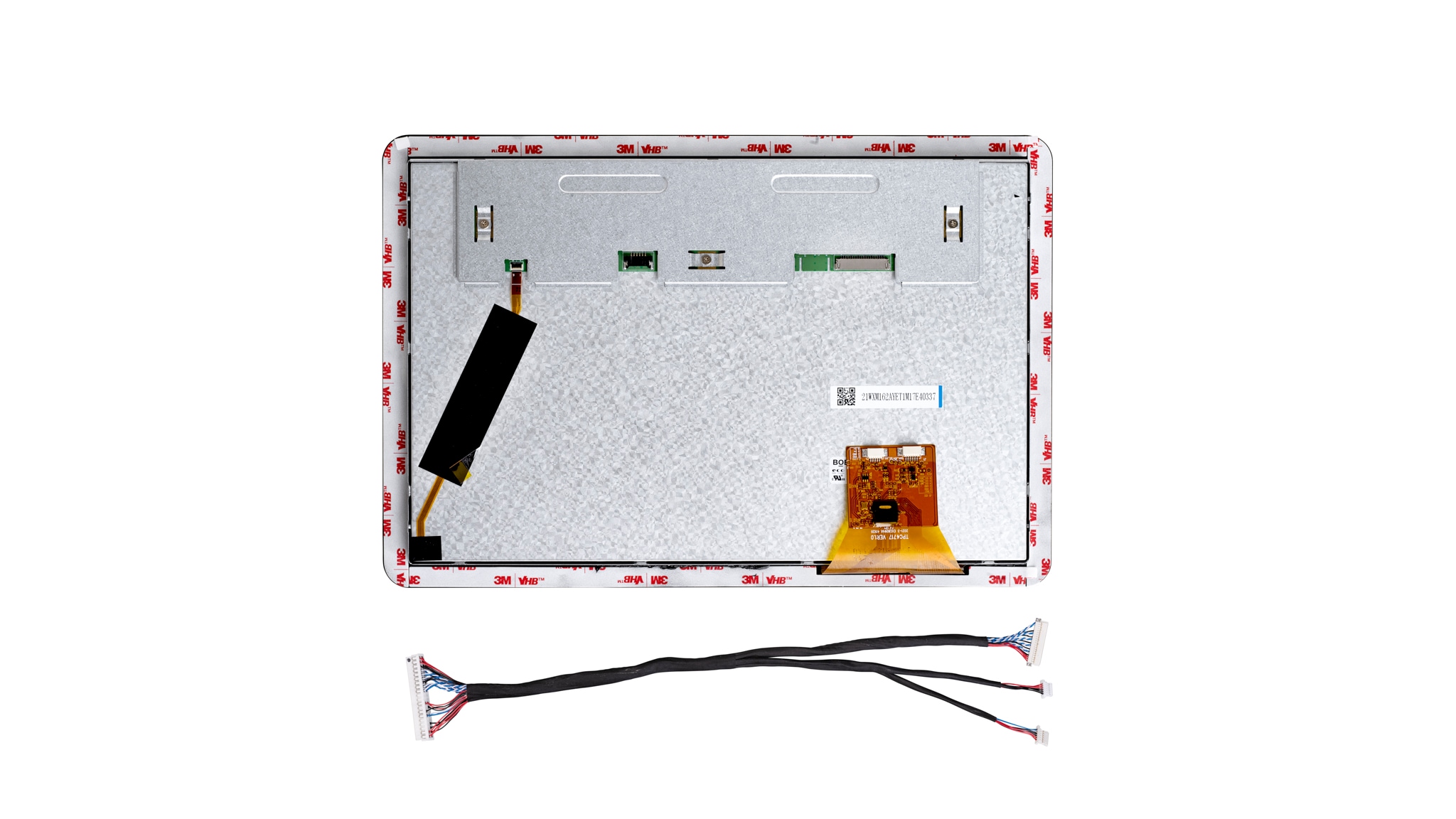

The DY1212W-4856 is a 12.1" (WXGA) TFT LCD panel with LVDS interface. The 40-pin connector allows it to be directly connected to i.MX93 EVK board. It can also be connected to a board with MINI-SAS connector when paired with RPI-CAM-MINISAS adapter card.

Block Diagram

DY1212W-4856

DY1212W-4856-BD
Get diagram PDF

Supported Devices

Processors and Microcontrollers

i.MX 9 Processors

  • i.MX93: i.MX 93 Applications Processor Family – Arm® Cortex®-A55, ML Acceleration, Power Efficient MPU

Features

LVDS LCD Panel

  • Number of Pixels: 12.1 inch WVGA 1280(H) x 800(V)
  • Display colors: 16.7M (6 bit + Hi-FRC)
  • Contrast ratio: 1200 Typ / 1000 Min
  • Viewing angle (CR>10): 85° / 85° / 85° / 85°
  • Color gamut: 72 % (NTSC)
  • Brightness: 500 cd/m2

Capacitive Touch Panel (CTP)

  • Touch point: 10-Points
  • Chattering time: 20 ms or less

Buy Options

DY1212W-4856-Image

Click to expand

  • DY1212W-4856
    Active

  • 12.1" TFT LCD Display with LVDS Connector (Touch Panel).

  • Kit Contains

    • DY1212W-4856 1 pcs
  • $346.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 29
    • Shipping: Normally ships 1-2 business days
