PCA9421 Evaluation Board

PCA9421UK-EVM

Roll over image to zoom in

The PCA9421 is a highly integrated Power Management IC (PMIC), targeted to provide a full power management solution for low-power microcontroller applications or other similar applications. This device integrates 2x buck converters and 2x LDOs with programmable output voltage range.

Supported Devices

Power Management

PMICs

Features

Key Features

  • Two step-down DC-DC converters
  • Very low quiescent current
  • Programmable output voltage
  • SW1: core buck converter, 0.5 V to 1.5 V output, 25 mV/step, and a fixed 1.8 V, up to 250 mA
  • SW2: system buck converter, 1.5 V to 2.1 V/2.7 V to 3.3 V output, 25 mV/step, up to 500 mA
  • Low-power mode for extra power saving
  • Two LDOs
  • Programmable output voltage regulation
  • LDO1: always-on LDO, 1.70 V to 1.90 V output, 25 mV/step, up to 1.0 mA
  • LDO2: system LDO, 1.5 V to 2.1 V/2.7 V to 3.3 V output, 25 mV/step, up to 250 mA
  • 1 MHz I²C-bus target interface
  • -40 °C to +85 °C ambient temperature range
  • Offered in 5 x 5 bump-array WLCSP and 24-pin QFN package

Buy Options

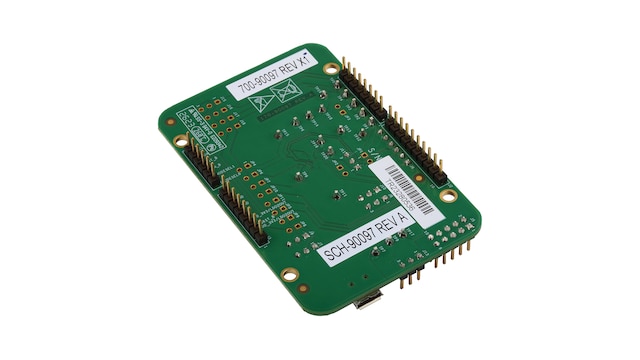

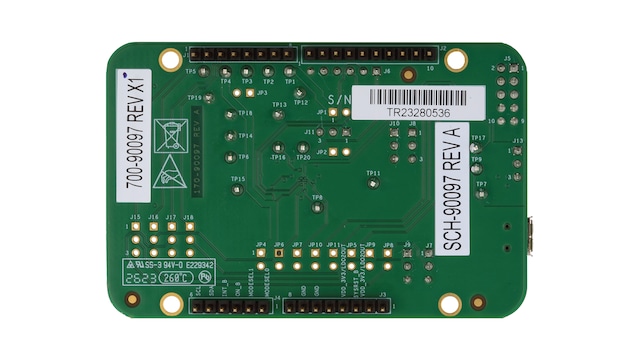

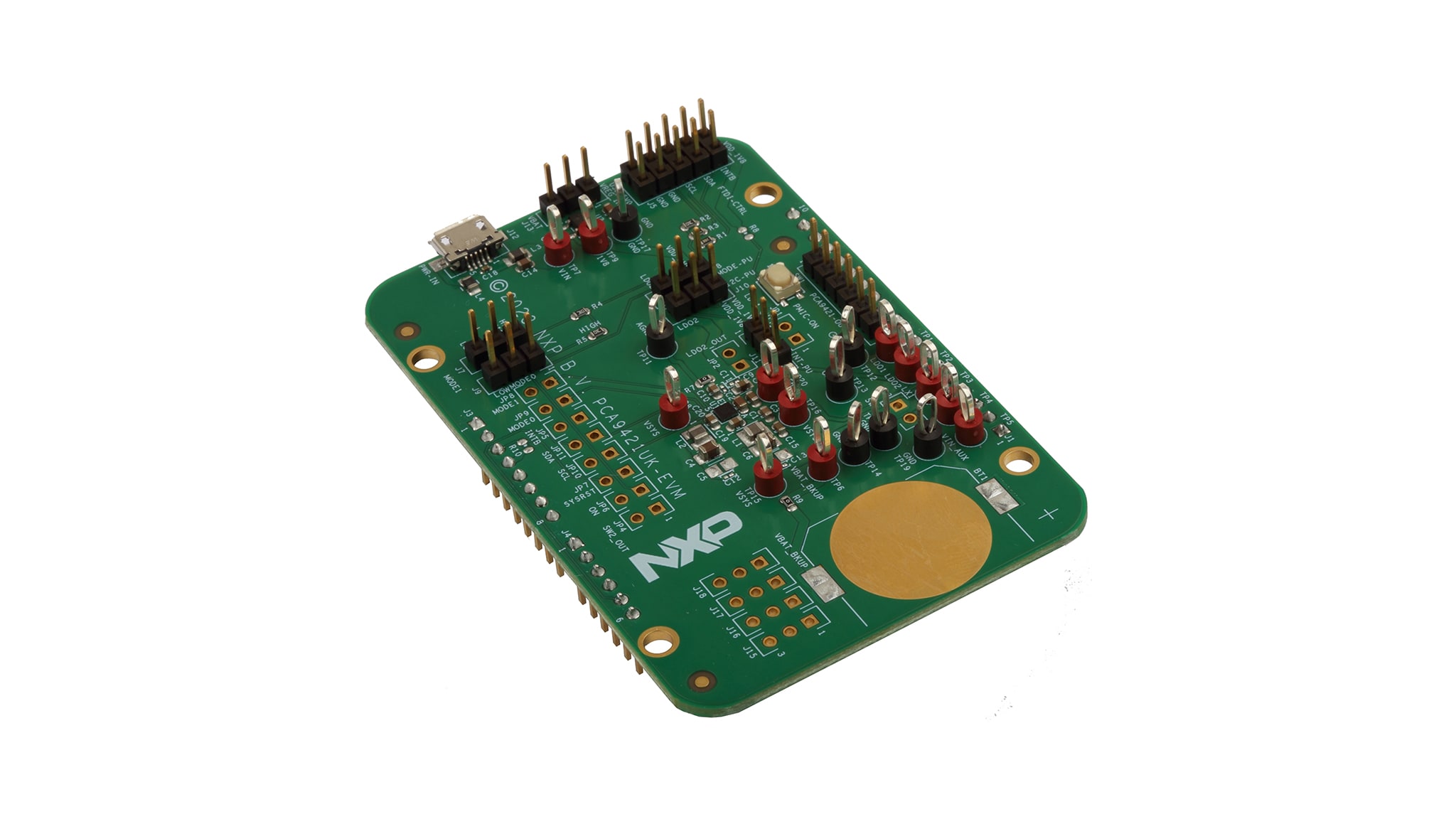

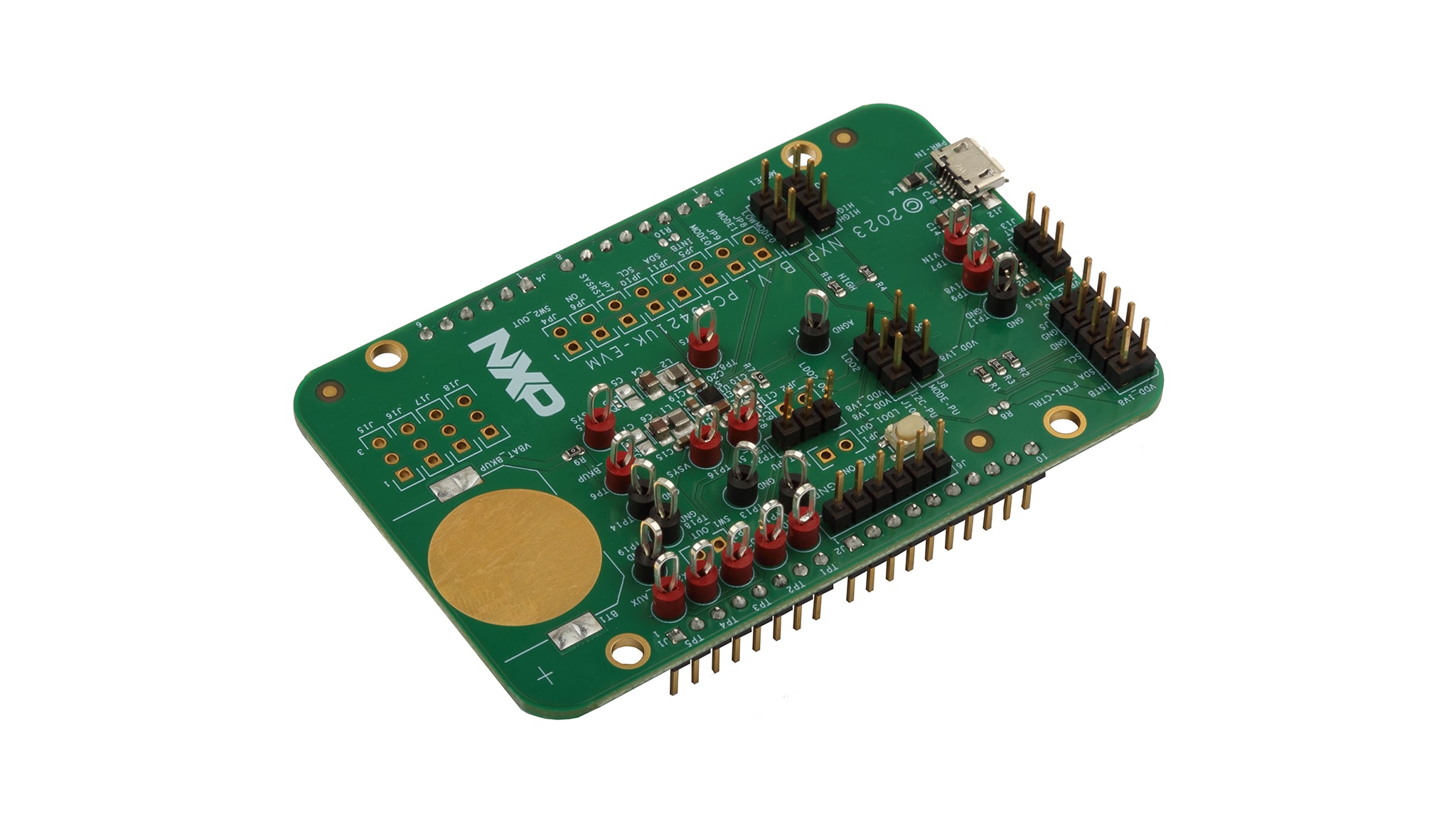

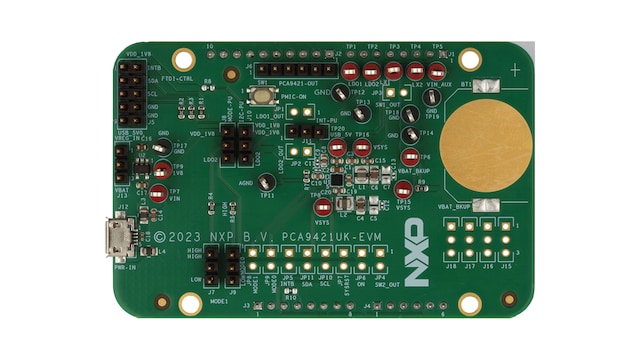

PCA9421UK-EVM-Image

Click to expand

  • PCA9421UK-EVM
    Active

  • PCA9421 Evaluation Board.

  • Kit Contains:

    • Assembled and tested PCA9421UK-EVM evaluation board in an antistatic bag
    • USB to MPSSE Serial cable for I²C communication
    • USB 2.0 cable
    • Spare jumpers
  • $145.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
